AR2.S

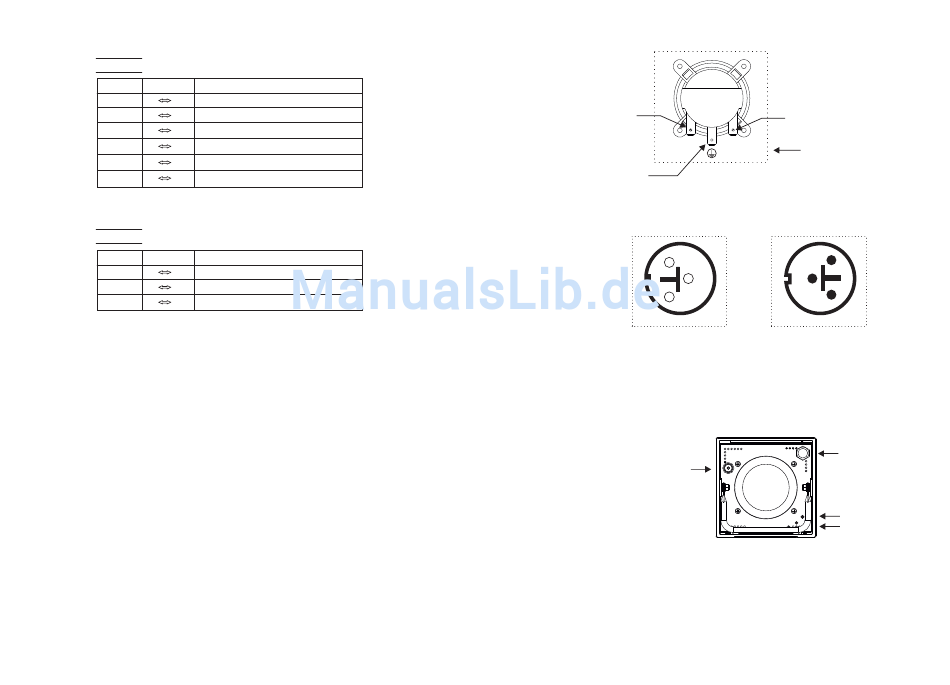

CHANNEL VALUE FUNCTION
1 DIMMER
0 255
2 RED
0 255
3
0 255 GREEN
4
0 255 BLUE
5 AMBER
0 255
6
0 255 STROBE 2
HSV
CHANNEL VALUE FUNCTION
1 HUE
0 255
2 0 255
SATURATION
3
0 255
VALUE
D 20
2.2 BATTERY CHARGING INPUT
Charger +ve
L
Not-used
2.3 DATA INPUT & OUTPUT
1
3
2
DMX Data Input
1、GND
2、Data(-)
3、Data(+)

2.4 GENERAL OPERATION

EVENT ON/OFF
GREEN: >70%
YELLOW: >20%
RED: EMPTY
● Press the EVENT ON/OFF button for 3 seconds to turn on/off lighting fixture
(when BATTERY STORAGE SWITCH is ON)
● EVENT ON/OFF button indicator LED when showing constant RED indicates lighting fixture is
power ON ( when slowly flashing indicates that DMX data is successfully received)
Charger -ve
N
Battery charging input
1
3
2
DMX Data Output
WIRELESS
INFRARED RECEIVER
POWER STATUS
E 05
