OSC 3 Control
It is possible here to separate oscillator 3 from the key-
board ('s frequency input). Oscillator 3 acts then as sound
element with a fixed frequency - for example, as an
LFO. When oscillator 3 is used as an LFO, you can
adjust its speed with Range for coarse alterations and
with Frequency for finer alterations.
Oscillator Modulation
Here, you can activate pitch modulation for all three
oscillators. The signal, adjusted within the Modulation
Mix works as a modulation source. This can be either
oscillator 3, noise or a mixer of both. The modulation
wheel and its parameters can adjust the intensity. (Shown in the
Modulation Wheel Settings under the Remote Software)

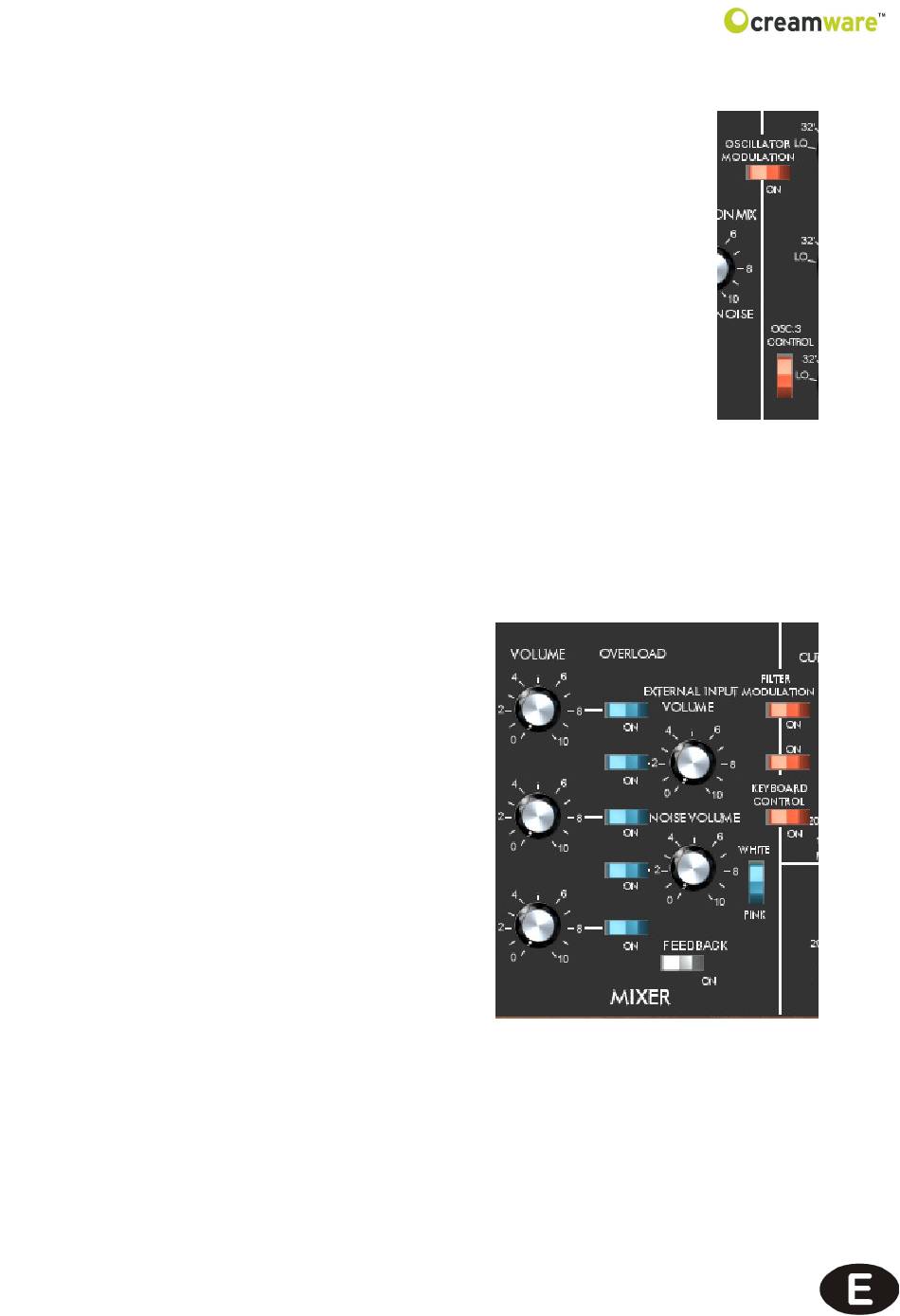

MIXER

In this section, all signals are mi-
xed before they go through the Fil-
ter. The signals are oscillator 1
through, the noise generator and
an external signal. That is altoge-
ther six sound sources including fil-
ter oscillation, directly produced by
the filter. Every sound source has
a specified knob to adjust the volu-
me and an on/off switch. If wanted
or needed, it is also possible to dis-
tort external signals.
Volume
Here you can adjust the volume of
each oscillator.
External Input Volume
This controls the volume for external signals. In order to hear a
signal, you need to connect the MINIMAX Audio-Input with an ex-
ternal sound source. The view control is above the volume slider.
The louder the signal, the brighter is the light.
13
