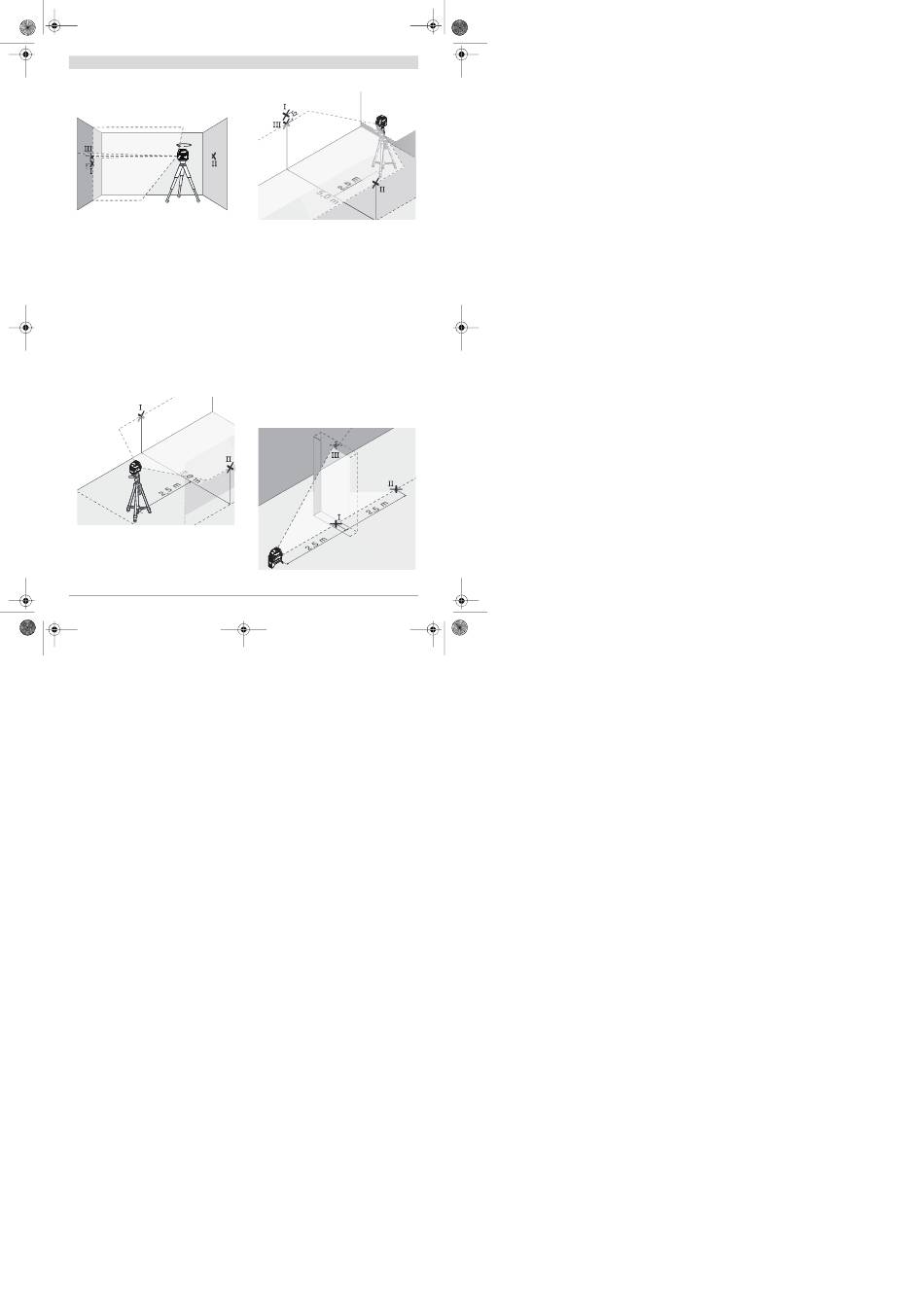

– W ithout changing the height, turn around the measuring
tool by 180° . Direct it against the wall A in such a manner
that the vertical laser line runs through the already marked
point I. Allow the measuring tool to level in and mark the
cross point of the laser lines on the wall A (point III).
A
B
180°
d
– The difference d of both marked pointsI and III on wall A
indicates the actual height deviation of the measuring tool.
The maximum permitted deviation d can be calculated as
max
follows:
d = double the distance between the walls x 0.3 mm/m
max
Example: If the distance between the walls is 5 m, the maxi-
mum deviation is
d = 2 x5 mx 0.3 mm/m= 3 mm. The marks must there-
max
fore be maximum 3 mm apart.
Checking the Levelling Accuracy of the Horizontal Line
For the check, a free surface of approx. 5 x 5 metres is re-
quired.
– Set up the measuring tool on a firm, level surface between
both walls A and B. Allow the measuring tool to level in
while in horizontal operation.
– At a distance of 2.5 metres from the measuring tool, mark
the centre of the laser line (point I on wall A and point II on
wall B) on both walls.
A
B
– Set up the measuring tool 5 metres away turned by 180°
and allow it to level in.
– Align the height of the measuring tool (using a tripod or by
underlaying, if required) in such a manner that the centre
of the laser line is projected exactly against the previously
marked point II on wall B.
Bosch Power Tools
English | 21
– Mark the centre of the laser line as point III (vertically
above or below point I) on the wall A.
A
B
– The difference d of both marked points I and III on wall A
indicates the actual deviation of the measuring tool from
the level plane.
The maximum permitted deviation d can be calculated as
max
follows:
d = double the distance between the walls x 0.3 mm/m
max
Example: If the distance between the walls is 5 m, the maxi-
mum deviation is
d = 2 x5 mx 0.3 mm/m= 3 mm. The marks must there-
max
fore be maximum 3 mm apart.
Checking the Levelling Accuracy of the Vertical Line
For this check, a door opening is required with at least 2.5 m
of space (on a firm surface) to each side of the door.
– Position the measuring tool on a firm, level surface (not on
a tripod) 2.5 m away from the door opening. Allow the
measuring tool to level in while in cross-line operation
mode, and direct the laser beams at the door opening.
– Mark the centre of the vertical laser line at the floor of the
door opening (point I), at a distance of 5 m beyond the
other side of the door opening (point II) and at the upper
edge of the door opening (point III).
