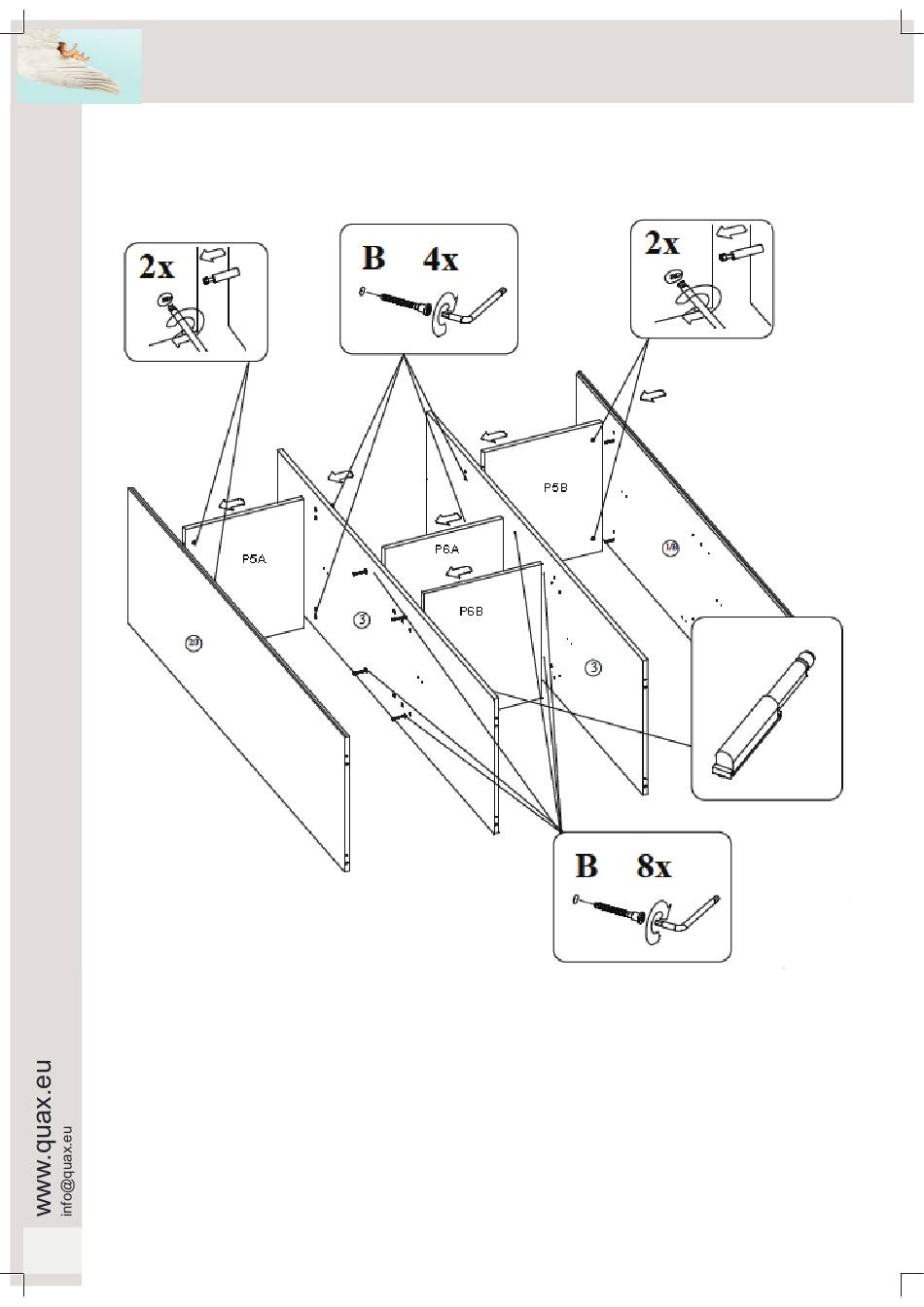

Step 5 : Use the parts of step 1-2 and 3 and twelve wood screws B
Push the shelf (P5A) on the connectors on the end side (P2J) and tighten the eccentrics at the bottom of the
shelf. Push the intermediate side (P3J) onto the wooden dowels of the shelf. Push two wood screws (B) into
the drillings of the intermediate side and screw them into the shelf. Push the shelves (P6A and P6B) with their
wooden dowels into the holes in the middle of the intermediate side. Push the intermediate side (P3A) onto the
wooden dowels of the shelves. Push eight wood screws (B) into the drillings of the intermediate sides and screw
them into the shelves. Push the shelf (P5B) with its wooden dowels into the holes of the intermediate side. Push
two wood screws (B) into the drillings of the intermediate side and screw them into the shelf. Push the end side
(P1B) with its connectors into the holes of the shelf and tighten the eccentrics at the bottom of the shelf.
