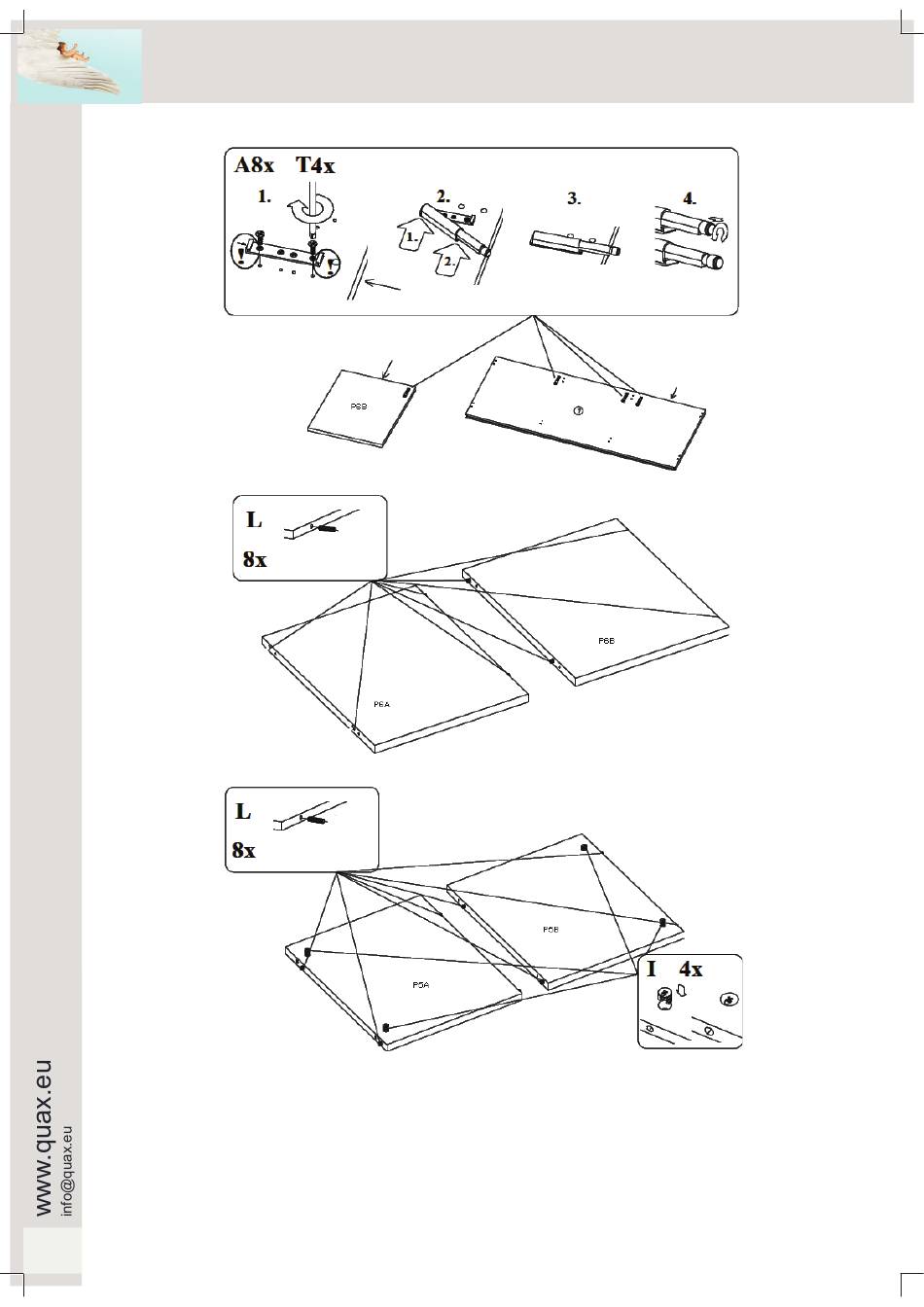

Step 3 : Use the top P7, the fi xed shelves P5A and P5B, the fi xed shelves P6A and P6B, sixteen wooden dowels
L, four eccentrics I, four push systems T and eight wood screws A
Disassemble the push systems (T). Place a mounting plate on the drillings under the shelf (6B). Secure the
mounting plate with two wood screws (A). Push the system back onto its holder. Place three mounting plates on
the holes at the bottom of the top (P7). Fasten the mounting plates with two wood screws (A). Push the systems
back onto their holder. Push two wooden dowels (L) into the drillings on the sides of the shelves (P6A and P6B).
Push two wooden dowels (L) into the drillings on the sides of the shelves (P5A and P5B). Push two eccentrics (I)
into the holes at the bottom of a shelf (P5A and P5B).
