Quax LOFT Bauanleitung Seite 37

LOFT
54F 04 00xXL

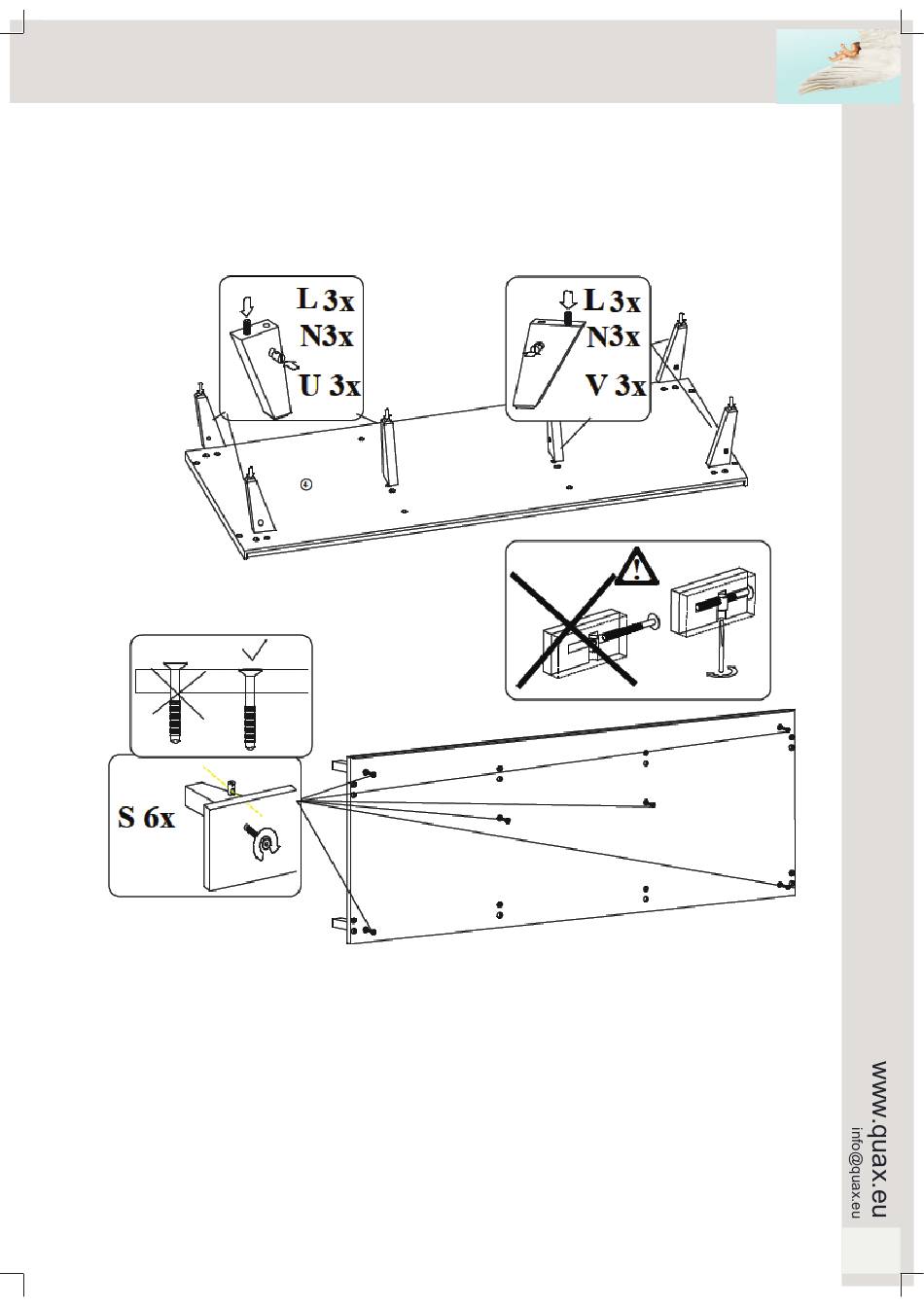

Step 4 : Use the bottom P4, three legs U, three legs V, six wooden dowels L, six cylindrical nuts N and six
bolts S
Push a wooden dowel (L) into the drilling on top of each leg (U and V). Push a cylindrical nut (N) into the
hole on the inside of each leg. Attention: with the opening in line with the drilling for the bolt. Place the legs
on the drillings at the underside of the bottom (P4). Push the bolts (S) in the drillings on the upperside of
the bottom and tighten in the cylindrical nuts.
Kleerkast met 5 draaideuren Armoire avec 5 portes battantes
Schrankwand mit 5 Türen Wardrobe with 5 doors
Quax Quax
® ®
First dreams First dreams
First steps First steps
37
