Centrad DL07 Bedienungsanleitung Seite 3

5. DECLARATION OF CONFORMITY
according to ISO/IEC guide 22 and EN45014
Manufacturer : ELC
Adress : 59 avenue des Romains 74000 Annecy France
declares the product
Name : Inductance decade box
Type : DL 07
conformable to following specifications :
Safety : EN61010-1:2001
overvoltage category I, pollution degree 1.
Further information :
This product complies with the requirements of the 2006/95/EC "Low Voltage" Directive.
Annecy, April 8, 2008
Henri Curri, Manager
5. DECLARATION OF CONFORMITY
according to ISO/IEC guide 22 and EN45014
Manufacturer : ELC
Adress : 59 avenue des Romains 74000 Annecy France
declares the product
Name : Inductance decade box
Type : DL 07
conformable to following specifications :
Safety : EN61010-1:2001
overvoltage category I, pollution degree 1.
Further information :
This product complies with the requirements of the 2006/95/EC "Low Voltage" Directive.
Annecy, April 8, 2008
Henri Curri, Manager
1. PRELIMINARY INFORMATION
Instrument
Trademark
Type
2. DESCRIPTION
2-1 Overview
You just bought the inductance box type DL 07. We thank you and congratulate you
for your good choice.
elc also offers a large number of electronic appliances, including supplies, function
generators, table devices, etc.
CENTRAD is an elc's mark.
This instructions leaflet contains information and warnings the buyer must comply with
in order to ensure safe and sustained operation.

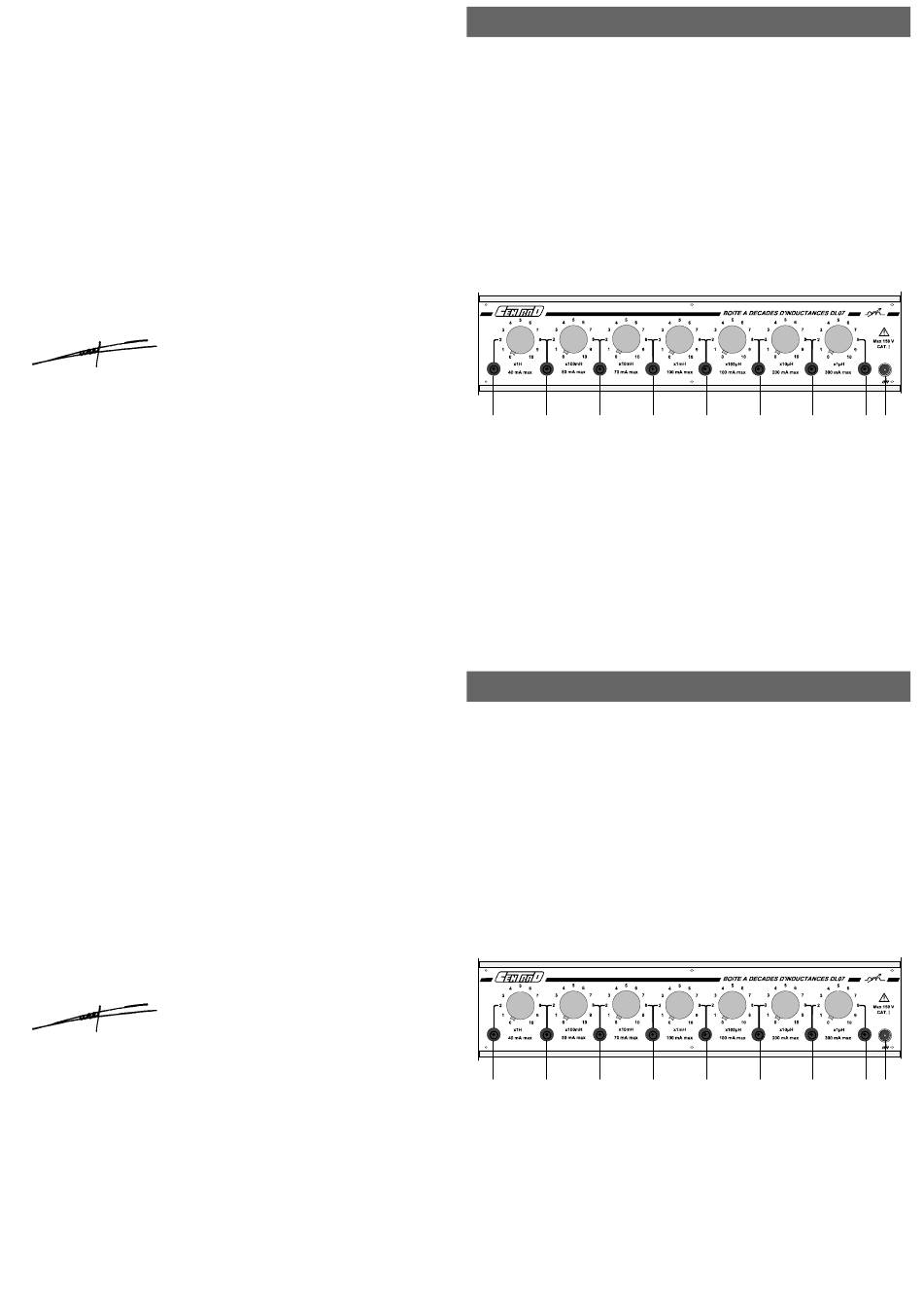

2-2 Comprehensive view
D8
2-3 Technical specifications
Nature of inductances :
Professional quality switches with gilt contacts.
Contact resistance below 6mΩ
Range
Number of decades
Accuracy
Maxi voltage possible :
4000 4 176 - 04/08
1. PRELIMINARY INFORMATION
Instrument
Trademark
Type
2. DESCRIPTION
2-1 Overview
You just bought the inductance box type DL 07. We thank you and congratulate you
for your good choice.
elc also offers a large number of electronic appliances, including supplies, function
generators, table devices, etc.
CENTRAD is an elc's mark.
This instructions leaflet contains information and warnings the buyer must comply with
in order to ensure safe and sustained operation.
2-2 Comprehensive view
D8
2-3 Technical specifications
Nature of inductances :
Professional quality switches with gilt contacts.
Contact resistance below 6mΩ
Range
Number of decades
Accuracy
Maxi voltage possible :
4000 4 176 - 04/08
MANUAL OF INDUCTANCE BOX DL07
: INDUCTANCE BOX
: Centrad
: DL 07
D7 D6 D5 D4
Wound inductors with ferrite pot.
High quality factor (Q)
: 1µH at 11.111110 Henrys
: 7 ( x1µH, x10µH, x100µH, x1mH, x10mH, x100mH, x1H)
: 10% for the x1H decade, 5% for the others
150V AC / DC (reinforced insulation ) ;
250V AC / DC with earth connected to the safety earth
socket D0 (simple insulation).
MANUAL OF INDUCTANCE BOX DL07
: INDUCTANCE BOX
: Centrad
: DL 07
D7 D6 D5 D4
Wound inductors with ferrite pot.
High quality factor (Q)
: 1µH at 11.111110 Henrys
: 7 ( x1µH, x10µH, x100µH, x1mH, x10mH, x100mH, x1H)
: 10% for the x1H decade, 5% for the others
150V AC / DC (reinforced insulation ) ;
250V AC / DC with earth connected to the safety earth
socket D0 (simple insulation).
D3 D2 D1 DO
D3 D2 D1 DO
