aireRyder Ursa Installationsanleitung Seite 4

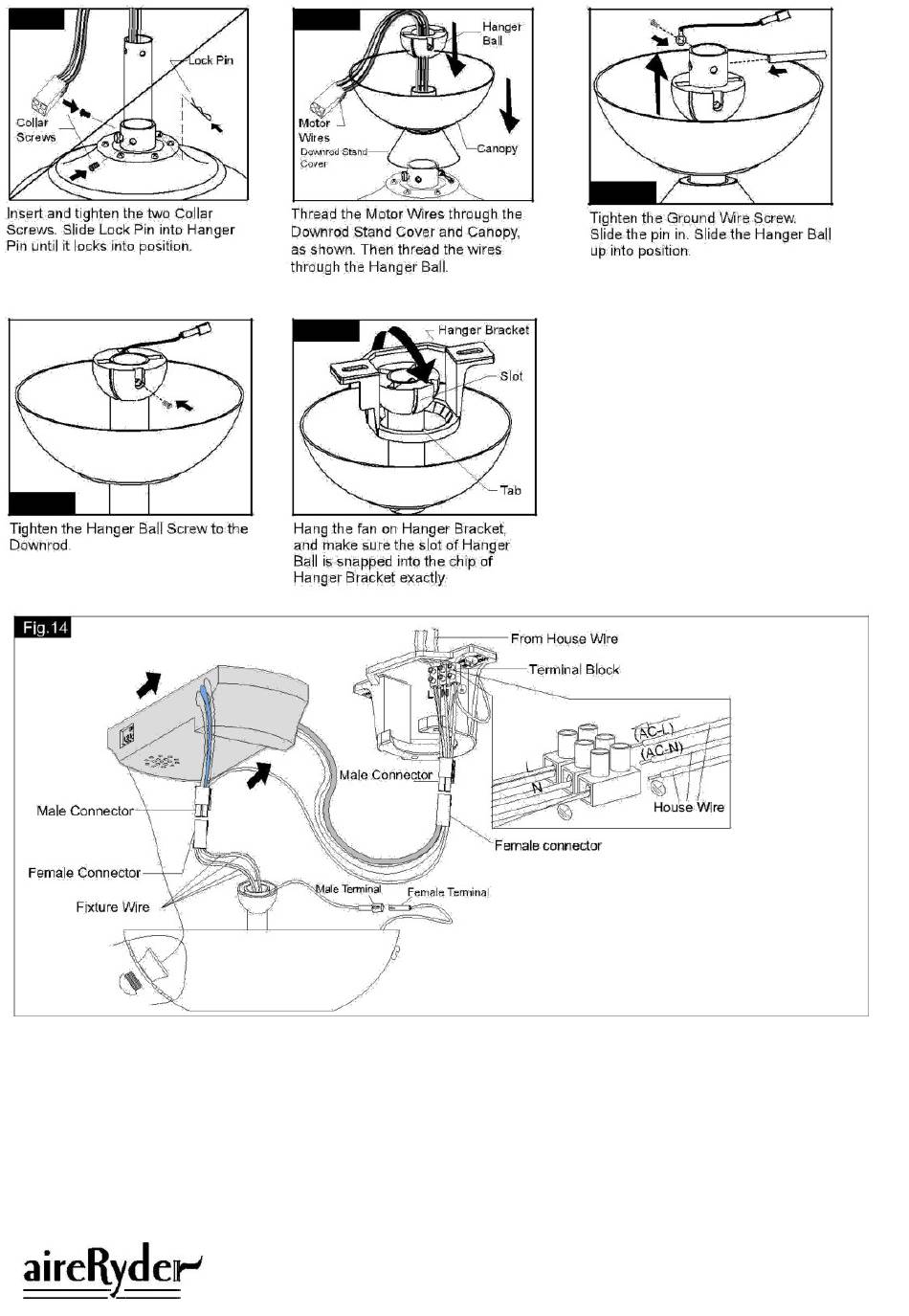

1. Make house wire connections. Follow diagram on the right and make sure that all exposed wires are
tightened by screw on terminal block.
Note:
a.) The terminal block shown in right graph is pre-installed on the mounting bracket.
b.) After wiring is completed, gently push wires into hanger bracket with terminal block facing upward (if applicable).
2. a.) Slide receiver through hanger bracket as shown.
b.) Plug the male connection of receiver wires into the female connector of motor wires.
c.) Insert the infra-red sensor into the hole on the canopy
d.) Make fixture wire connection. Plug the male connector into female connector and plug the male
terminal into female terminal.(Do not force it into wrong receptacle as it will cause damage.)
F A N C O
171117
4
