6.11 Device configuration

Before powering the device it must be correctly
configured by setting the dip switches on the circuit
board.

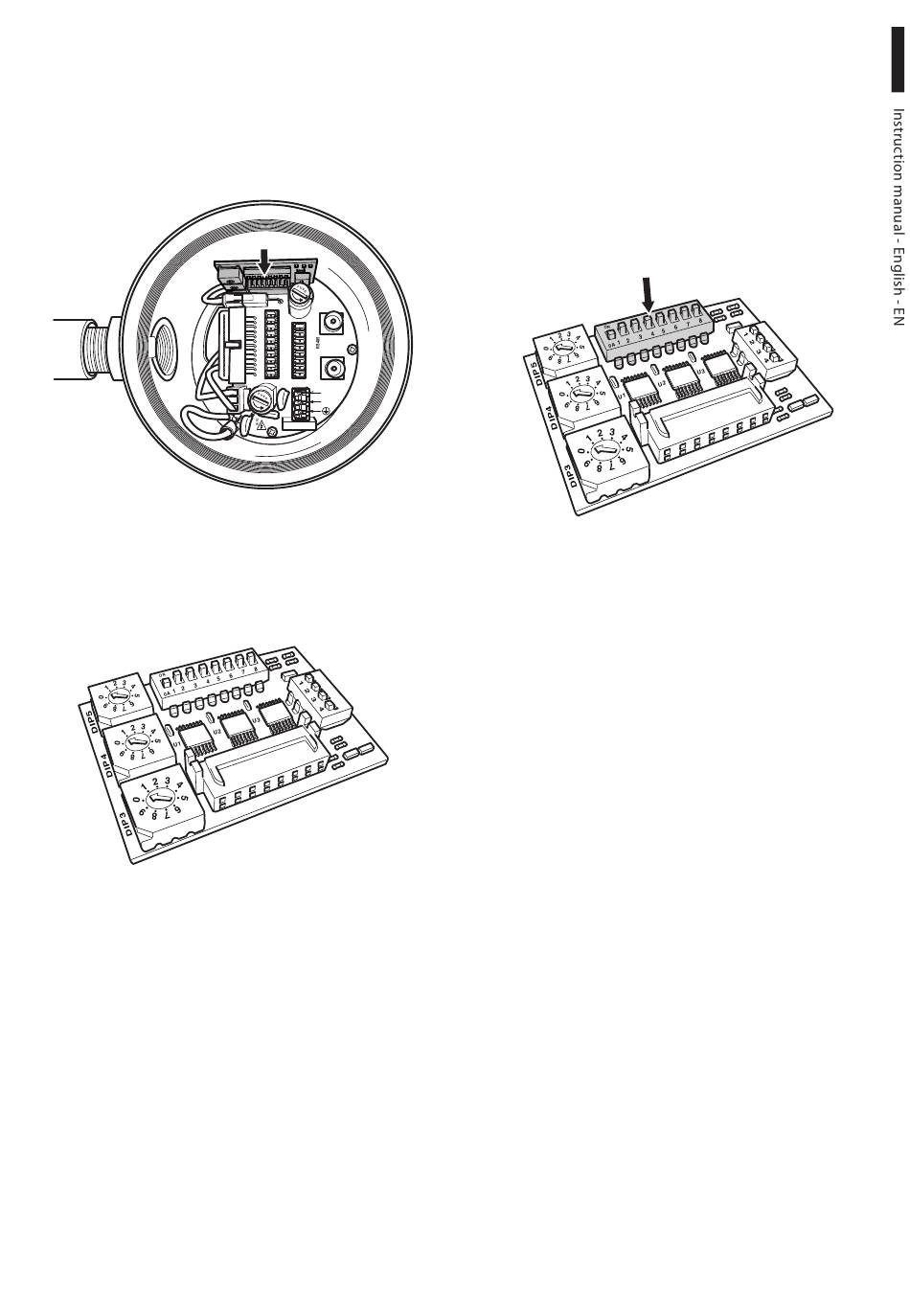

Take the configuration board from its J4 connector on
the connector board.
Fig. 34
This board is used to set the communication
parameters of the serial lines RS-485-1 and RS-485-
2: the address of the receiver, the communication
protocol and baud rate.
Fig. 35
MNVCMPXT_1822_EN
J4
J3 FUS2 VIDEO - 1
J8
J2
RL2
J9
RL2
J6
A
RL1
B
RL1
COM
A
AL5
B VIDEO - 2
AL4
GND
AL3
AL2 W
J7
AL1 GND
FUS1 AC IN
VAR1 J1
L
N
VAR3
100nMBW3
6.12 Setting the configuration
check mode
To set the operating mode operate on DIP 2.
SW 1=ON: Display Configuration. To be used only to
verify the configuration at the end of the setting. To
be used only to verify the configuration at the end of
the setting. During normal operation make sure the
lever is on OFF (SW 1=OFF).
DIP 2
Fig. 36
