USB 3.0 4K HDMI Adapter
Installation Guide
Installationsanleitung
Manuel Utilisateur
Manuale
www.LINDY.com
For Home and Office Use
Tested to Comply with
FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH – First EDITION (JAN 2015)
Introduction

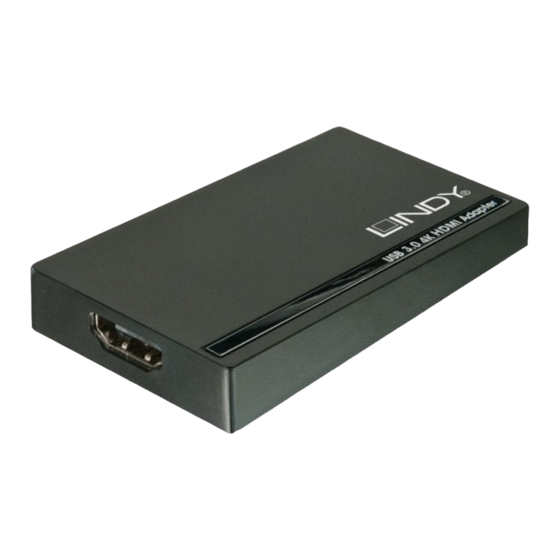

Thank you for buying the LINDY USB 3.0 4K HDMI Adapter. This
adapter allows you to connect any monitor with an HDMI port to your PC
or notebook. Thanks to SuperSpeed USB 3.0 and DisplayLink
Technology, there is no need to add an additional graphics cards to your
computer!
This additional monitor can be used as an additional standard Windows
monitor in mirror mode or extended desktop mode. It also can be
configured to be used as a primary monitor.
It can be used to output a high resolution standard Windows desktop as
well as for video playback using Windows Media Player or appropriate
software that supports Video playback on an extended desktop.
Features
•
USB 3.0 connectivity between PC/notebook to additional display
monitor via HDMI connector
•
Supports mirror, extended and primary display modes
•
Supports 4K resolutions up to 3840 x 2160@30Hz
•
Display your PC contents (Internet, music, photo, and video as
supported by your PC) to a monitor, TV or projector
•
Add up to six displays per PC (dependent upon PC specification)
•
Power Mode: Bus powered
•
Supported Operating System: Windows 7 / 8 / 8.1
•
Operation Temperature: 10 ~ 40°C
•
Storage Temperature: -20 ~ 70°C
No. 43175
E n g l i s h
E n g l i s h
English
Deutsch
Français
Italiano
Interlaced modes and reduced blanking modes are not supported.
Installation
When you connect the USB 3.0 4K HDMI Adapter to your computer,
Windows will automatically install the DisplayLink drivers via the internet. If
you use Windows 7 and have no internet connection, then please install
the driver from the included CD.
The performance of the software is dependent upon the processing power
available as well as the operating use (video or desktop), more capable
systems will provide better performance.
Windows users may find most up to date information, DisplayLink manuals
and driver software from www.displaylink.com.
Supported Resolution Table
640x480
720x400
720x480
768x576
800x600
832x624
848x480
1024x600
1152x864
1152x870
1280x768
1280x800
1280x1024
1360x768
1368x768
1400x1050
1600x900
1600x1200
1920x1080
1920x1200
2048x1152
2048x1280
2560x1440
2560x1600
800x480
1024x768
1280x720
1280x960
1366x768
1440x900
1680x1050
2048x1080
2048x1536
3840x2160
E n g l i s h
