Connection Panel

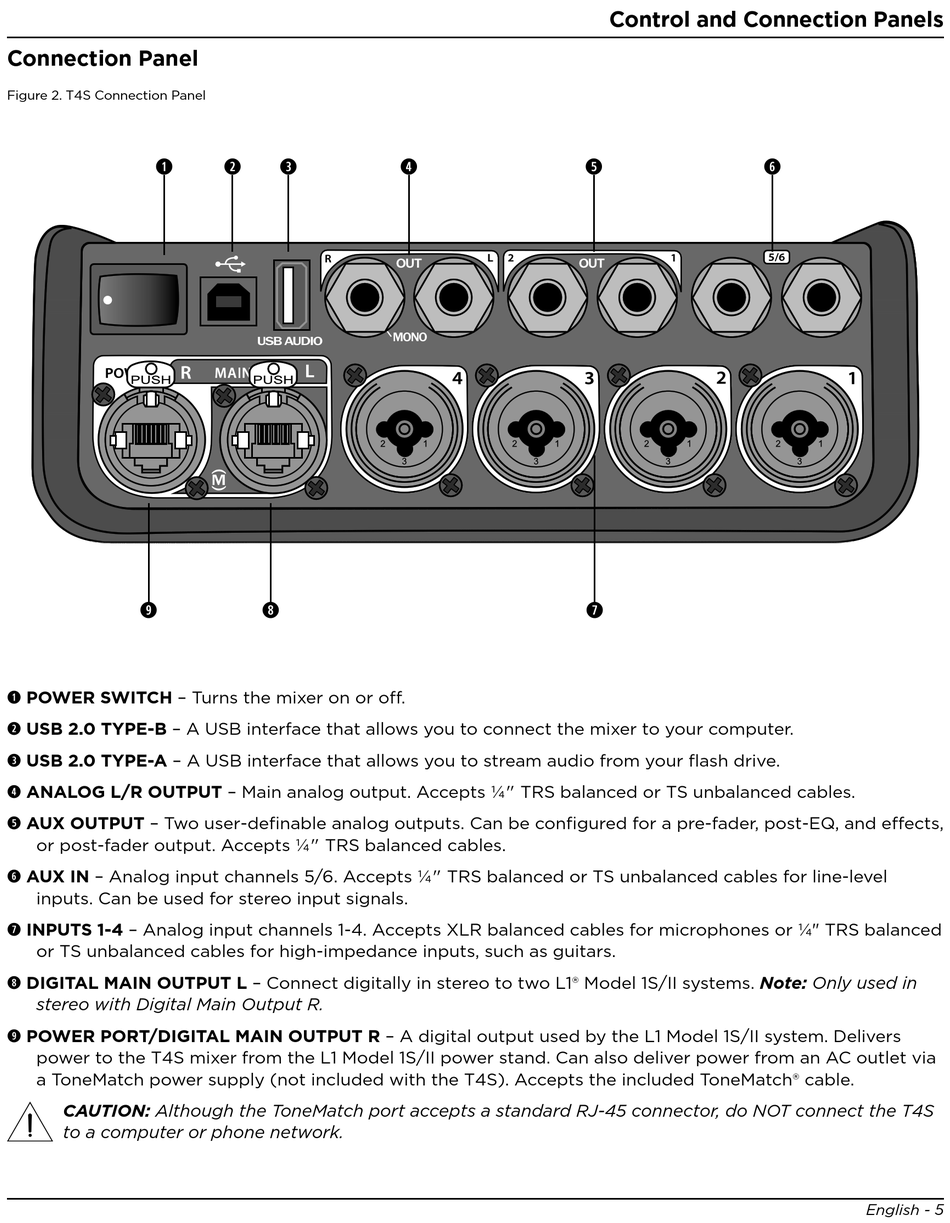

Figure 2. T4S Connection Panel
q
o
q POWER SWITCH – Turns the mixer on or off.
w USB 2.0 TYPE-B – A USB interface that allows you to connect the mixer to your computer.
e USB 2.0 TYPE-A – A USB interface that allows you to stream audio from your flash drive.
r ANALOG L/R OUTPUT – Main analog output. Accepts 1/4" TRS balanced or TS unbalanced cables.
t AUX OUTPUT – Two user-definable analog outputs. Can be configured for a pre-fader, post-EQ, and effects,
or post-fader output. Accepts 1/4" TRS balanced cables.
y AUX IN – Analog input channels 5/6. Accepts 1/4" TRS balanced or TS unbalanced cables for line-level
inputs. Can be used for stereo input signals.
u INPUTS 1-4 – Analog input channels 1-4. Accepts XLR balanced cables for microphones or 1/4" TRS balanced
or TS unbalanced cables for high-impedance inputs, such as guitars.
i DIGITAL MAIN OUTPUT L – Connect digitally in stereo to two L1® Model 1S/II systems. Note: Only used in
stereo with Digital Main Output R.
o POWER PORT/DIGITAL MAIN OUTPUT R – A digital output used by the L1 Model 1S/II system. Delivers
power to the T4S mixer from the L1 Model 1S/II power stand. Can also deliver power from an AC outlet via
a ToneMatch power supply (not included with the T4S). Accepts the included ToneMatch® cable.
CAUTION: Although the ToneMatch port accepts a standard RJ-45 connector, do NOT connect the T4S
to a computer or phone network.
w e
USB AUDIO
M
i
r
MONO
Control and Connection Panels
t y
u
