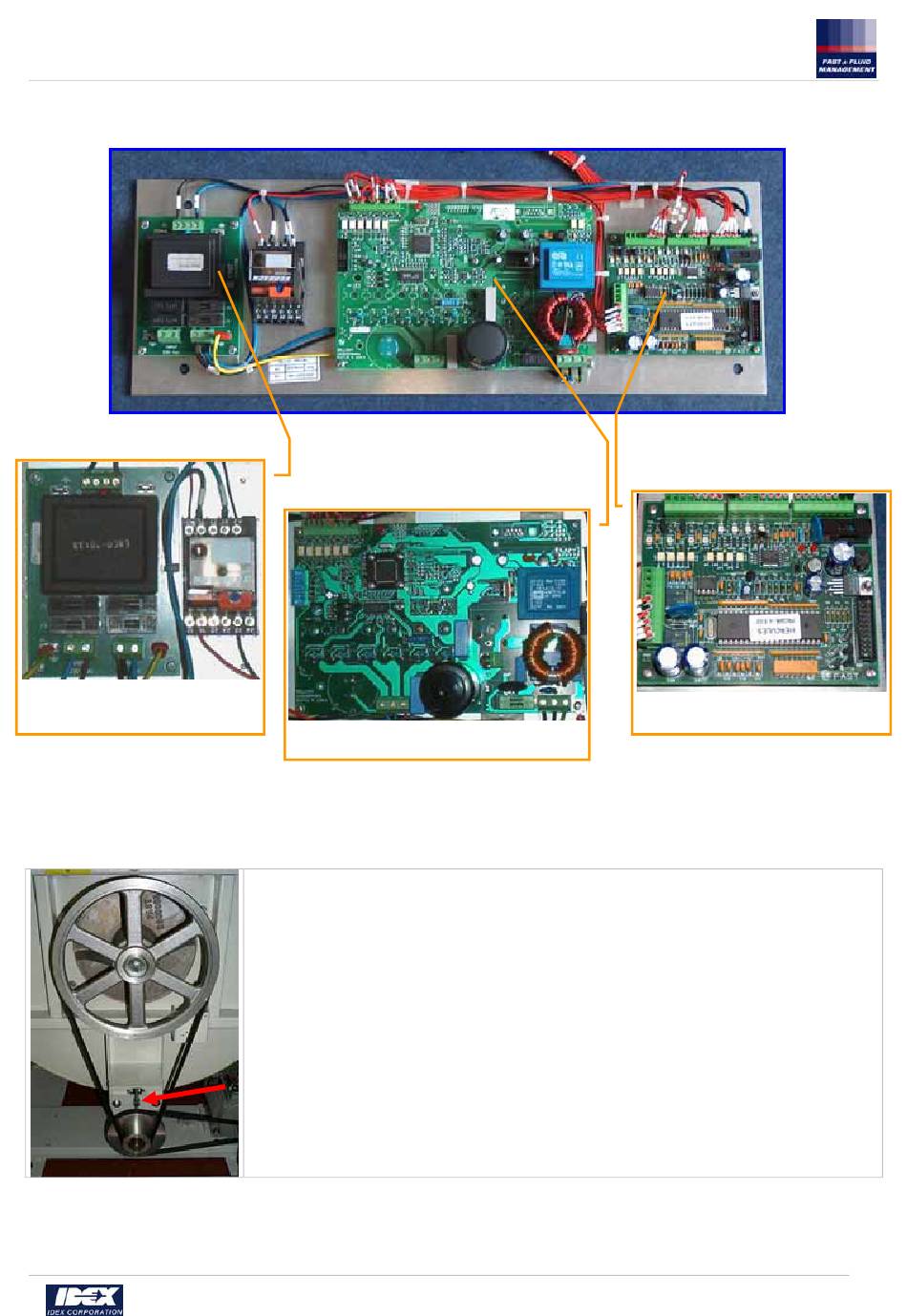

POWER BOARD + RELE'
INVERTER BOARD

13. ADJUSTING TRANSMISSION BELTS

Remove back panel from the machine.
Check belt tension, which should bend 5 ÷ 10 mm while pressed with fingers in its side.
To correct the tension, do/undo the bolt (13 mm) as shown in the picture
Check the belt by rotating the main pulley. The belt should not be worn.
Put the back panel in its original position.
1155383H-it,en,es,fr,de - 12/06/2008
LOGIC BOARD
