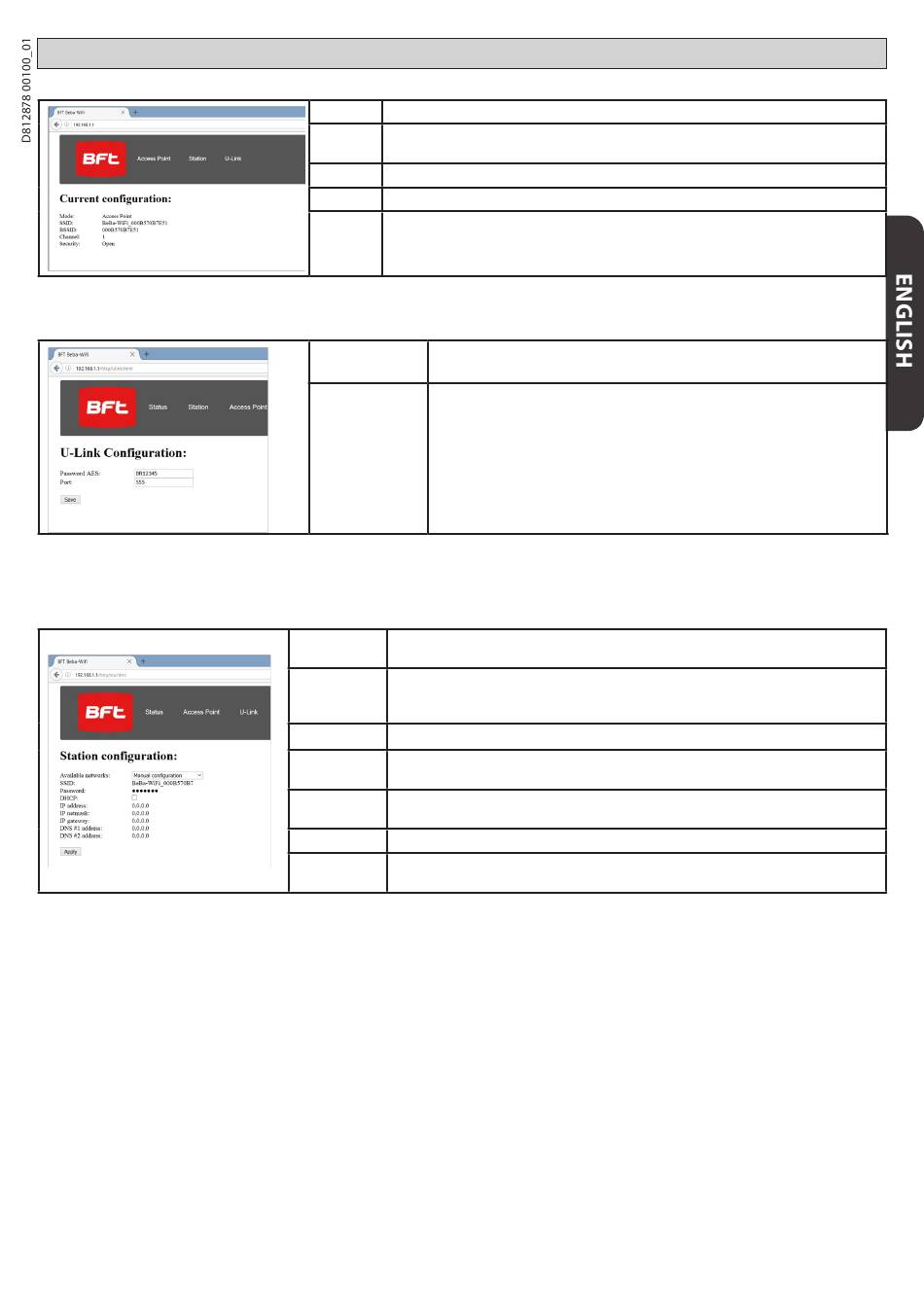

On the screen is shown:
9.1) Step1: U-Link PARAMETER SETTING
The B EBA WI-FI GATEWAY board to be used with dedicated BFT software needed to set the parameters for the U-Link by
clicking on the [U-Link] configuration in this installation menu.
After changing the parameters click [Save]
9.2) Step2: Client PARAMETER SETTING
In order to change the default setting of the B EBA WI-FI GATEWAY board to set it as a client click [Station] in the installation
menu.
For the changes to take effect, click on [Apply]. After that the board is no longer accessible through the browser.
In order to restore the default configuration of the B EBA WI-FI GATEWAY board, see section RESET TO FACTORY SETTINGS.
Note: for correct operation with the BFT software the B EBA WI-FI GATEWAY board must be accessed with a fixed IP and this
can be possible:
- setting it directly on the browser during client setup
- by setting a rule in the router that manages the WiFi network to which to connect that associates the Mac address of the
same IP board.
Note: The data required in order to interface the B EBA WI-FI GATEWAY board with the BFT software is:
-IP of the board
-Port must answer the U-link service
-Password AES
INSTALLATION MANUAL
Mode Operating mode set
WLAN network name created by the WI-FI B EBA GATEWAY [BeBa_Wifi_<Mac
SSID
address>]
BSSID Mac address
Channel Channel which transmits/receives the board
Security Security type set for the network operated by B EBA WI-FI GATEWAY
Password for the AES encryption protocol U-Link.
Password AES
Length between 8 and 16 characters. Bft12345 default value
Port corresponding to the U-link service of the B EBA WI-FI GATEWAY
Port:
board. 1111 default value
Available
Shows the list of networks that are visible and accessible from the module
Networks
It indicates the wireless network to connect to. If the network is not visible
by setting [manual configuration] in [Available Networks] it is possible
SSID
to type the hidden wireless network name to which you want to connect.
Password Password of the WiFi network to connect to.
Enable it if is expected that the WLAN to which to connect automatically
DHCP
associates the IP of the B EBA WI-FI GATEWAY
Setting the IP address of the B EBA WI-FI GATEWAY board if DHCP is not
IP address
enabled.
IP netmask It sets the netmask of the B EBA WI-FI GATEWAY board if DHCP is not enabled.
Setting the IP address of the router to which to connect if DHCP is not
IP gateway
enabled.
