CB2000C
Model # 44132
English
Congratulations on your Celestron Labs
microscope purchase. Your new Celestron
Labs microscope is a precision optical
instrument, made of the highest quality
materials to ensure durability and long
life. It is designed to give you a lifetime of
enjoyment with minimal maintenance.
This CB2000C microscope provides powers
from 40x up to 2000x. It is ideally suited
for examining specimen slides of yeasts
and molds, cultures, plant and animal parts,
fibers, bacteria, and more.
Before attempting to use your Celestron
Labs microscope, please read these
instructions to familiarize yourself with
the parts and functions of the microscope.
Refer to the microscope diagrams to locate
the parts discussed in the manual. The final
section of the manual provides simple care
and maintenance tips.
IN THE BOX
- Microscope CB2000C
- 4 objective lenses: 4x, 10x, 40x (spring-
loaded), 100x (spring-loaded)
- 2 sets of wide field eyepieces: (2) 10x with
pointer, (2) 20x
- 10 prepared slides
- 3 colored filters
- Immersion oil
- Replacement bulb
- Replacement fuse
- Power cord
- Trinocular eyepiece tube

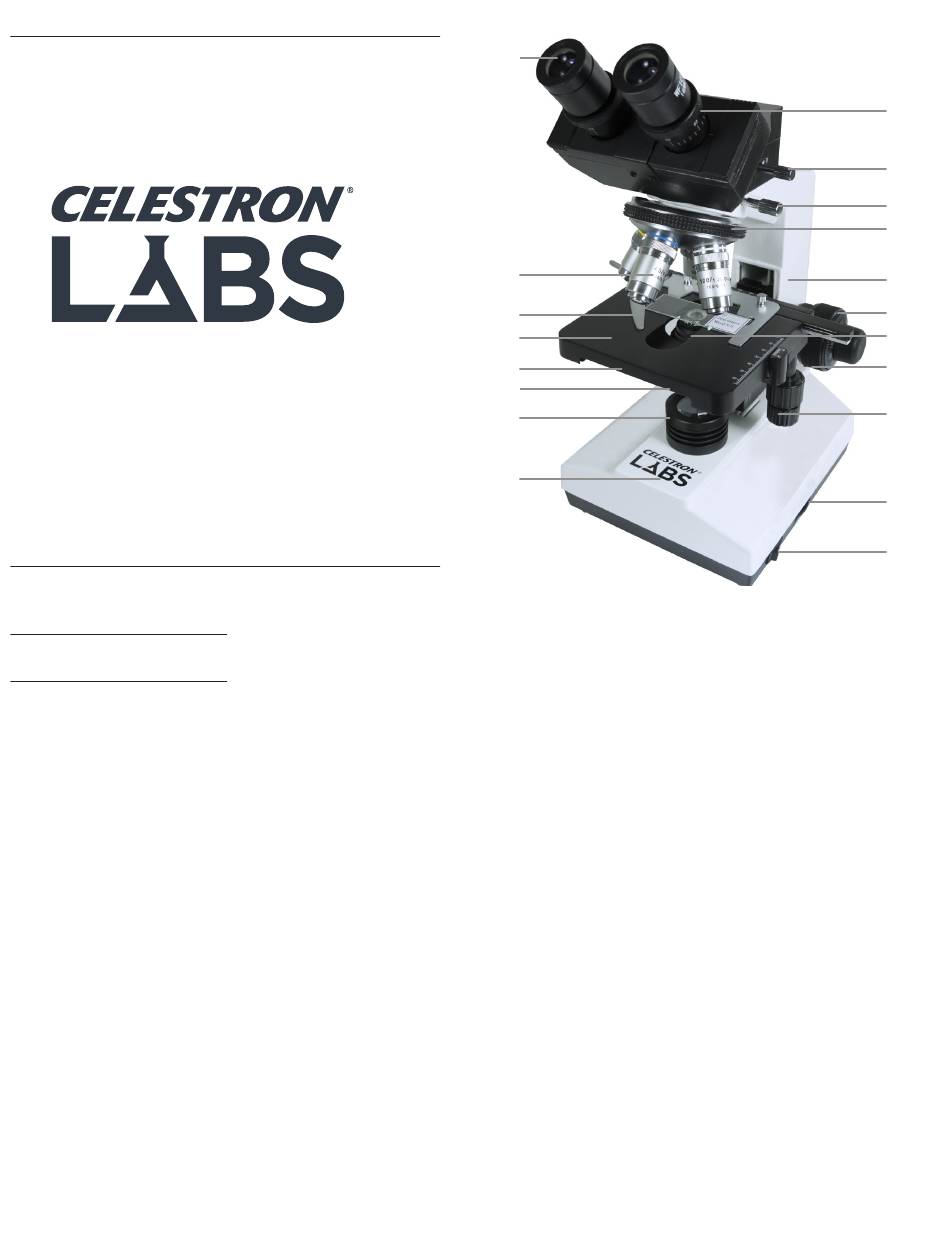

PARTS
1. Eyepiece
2. Objective Lenses
3. Stage Holder Clamp
4. Mechanical Stage
5. Abbe Condenser
6. Abbe Adjustment Knob
7. Illuminator
8. Base
9. Diopter
10. Binocular Head
11. Head Locking Screw
12. Nosepiece
13. Arm
14. Coaxial Focus Knob
15. Iris Diaphragm
16. Limit Stop Lock
17. Stage Control Knobs
18. Illuminator Adjustment Wheel
19. Power Switch
SPECIFICATIONS
STAGE: Stage Mechanical stage - 5.5 in x
5.5 in (140 mm x 140 mm)
1
2
3
4
5
6
7
8
HEAD: Binocular with 45° incline
MAGNIFICATION Range: 40x to 2000x
FOCUSER: Coaxial, coarse/fine focus knob
OBJECTIVES: Achromatic 4x, 10x, 40x, 100x
EYEPIECES: WF 10x with pointer, WF 20x
NOSEPIECE: Quadruple with click stop
ILLUMINATOR: Halogen, adjustable
CONDENSER: Abbe N.A. 1.25
DIAPHRAGM: Iris
DIMENSIONS: 9.75 in x 7.30 in x 14.25 in
(24.76 cm x 18.5 cm x
36.20 cm)
WEIGHT: 12 lbs 30 oz / 5.53 kgs
MAGNIFICATION TABLE
Use the following table to determine
magnification using your microscope's
different eyepiece/objective lens
combinations.
OBJECTIVE LENS: 4x 10x 40x 100x
WF 10X EYEPIECE: 40x 100x 400x 1000x
WF 20X EYEPIECE: 80x 200x 800x 2000x
SETTING UP YOUR
MICROSCOPE
1. Remove the Styrofoam container from
the carton.
2. Carefully remove the microscope and
accessories from container and set them
on a table, desk, or other flat surface.
3. Remove bag coverings from microscope
9
10
11
12
13
14
15
16
17
18
19
and binocular head (10).
4. Remove cap on microscope arm (13).
You may need to loosen the head locking
screw (11).
5. Insert the binocular head (10) into the
microscope arm (13) and tighten the
head locking screw (11).
6. Remove caps from the eyepiece holders
on binocular head.
7. Remove the eyepieces from plastic bags.
8. Insert the two wide field 10x eyepieces
into the eyepiece holders.
9. Remove the four objective lenses (2)
from their containers. Unscrew the
container lids from the threaded portion
of the objective lenses.
10. Remove caps on the nosepiece (12).
11. Using caution, thread the end of the 4x
objective lens (color coded red) into
one of the holes on the nosepiece (12)
thoroughly until it is finger tight. It may
be necessary to lower the mechanical
stage (4) by turning the coaxial focus
knob (14).
12. Turn the nosepiece (12) to the next
opening and thread each of the
remaining objective lenses into the
remaining holes.
13. Remove the power cord from its bag
and plug it into the socket on the back
of the base (8).
14. Insert the plug end of the power cord
into the proper power source.
