CM800
Model # 44128
ENGLISH
Congratulations on your Celestron Labs
microscope purchase. Your new Celestron Labs
microscope is a precision optical instrument,
made of the highest quality materials to ensure
durability and long life. It is designed to give you
a lifetime of enjoyment with minimal maintenance.
This CL-CM800 microscope provides powers
from 40x up to 800x. It is ideally suited for
examining specimen slides of yeasts and molds,
cultures, plant and animal parts, fibers, bacteria,
and more.
Before attempting to use your Celestron Labs
microscope, please read these instructions to
familiarize yourself with the parts and functions
of the microscope. Refer to the microscope
diagrams to locate the parts discussed in the
manual. The final section of the manual provides
simple care and maintenance tips.
In the Box
- Microscope CL-CM800
- 2 wide field eyepieces: 10x, 20x
- AC adapter
- 10 prepared slides
- 3 AA batteries

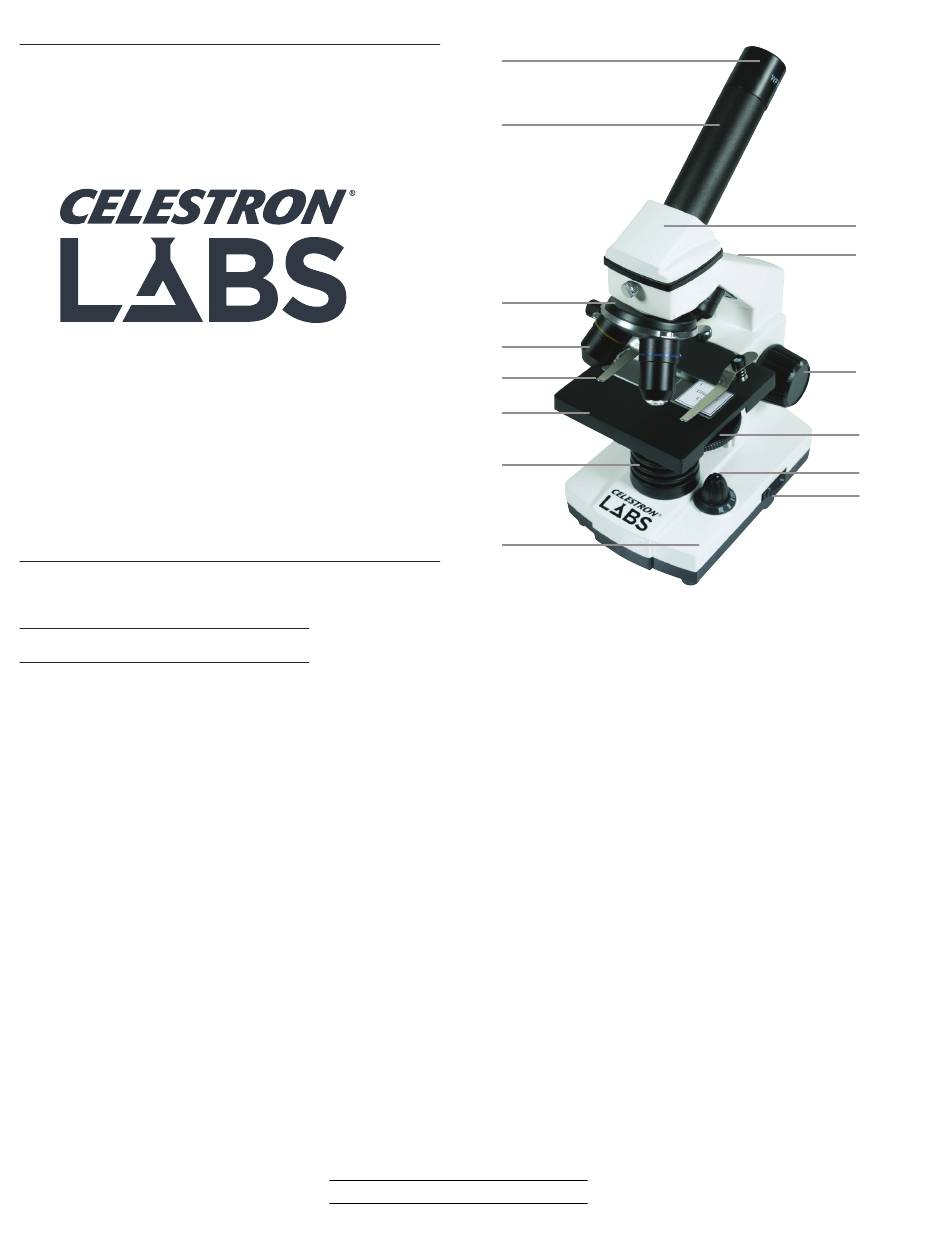

Parts
1. Eyepiece
2. Eyepiece Tube
3. Nosepiece
4. Objective Lens
5. Stage Clip
6.Stage
7. Illuminator
1
2
3
4
5
6
7
8
8. Base
9. Head
10. Arm
11. Focus Knob
12. Disc Diaphragm
13. Power Switch
14. Illuminator Adjustment
Specifications
Stage: Plain Stage with clips –
3.5 in x 3.5 in (88 mm x 88 mm)
Head: Monocular with 45° incline
Magnification Range: 40x to 800x
Focuser: Coarse focus
Objectives: 4x, 10x, 40x
Eyepieces: WF 10x, WF 20x
Nosepiece: Triple with click stop
Illuminator: LED, adjustable
Condenser: N.A. 0.65
Diaphragm: Disc diaphragm with 6 aperture
sizes
Dimens ions: 5.0 in x 6.0 in x 11.0 in (127 mm x
152 mm x 279 mm)
Weight: 2.7 lbs (1.108 kg)
Magnification Table
Use the following table to determine
magnification using your microscope's different
eyepiece/objective lens combinations.
Objective Lens: 4x 10x
WF 10x Eyepiece: 40x 100x
WF 20x Eyepiece 80x 200x
Setting Up Your Microscope
1. Remove the Styrofoam container from the
carton.
2. Carefully remove the microscope and
accessories from container and set them on a
table, desk, or other flat surface.
3. Remove bag covering from microscope.
4. Remove cap from eyepiece tube (2).
5. Remove the eyepieces from plastic bags.
6. Insert the WF 10x eyepiece into the eyepiece
tube (2)
7. Plug the AC adapter into the socket on the
back of the base (8).
8. Insert the plug end of the AC adapter into the
proper power source.
Additionally the microscope can be powered with
three AA batteries.
- Open the battery compartment on the base (8)
of the microscope.
- Install the three AA batteries (supplied) and
close the battery compartment.
Microscope Operation
Before viewing specimens, please read these
sections thoroughly regarding focusing, changing
power (magnification), using the stage and
adjusting illumination.
Viewing a Specimen
Carefully place a specimen slide under the stage
clips (5) and center the specimen. Images will
40x
be observed upside down and reversed right
to left. Prepared slides are included with your
400x
microscope to help you get started.
800x
You are now ready to focus and view a specimen.
9
10
11
12
13
14
