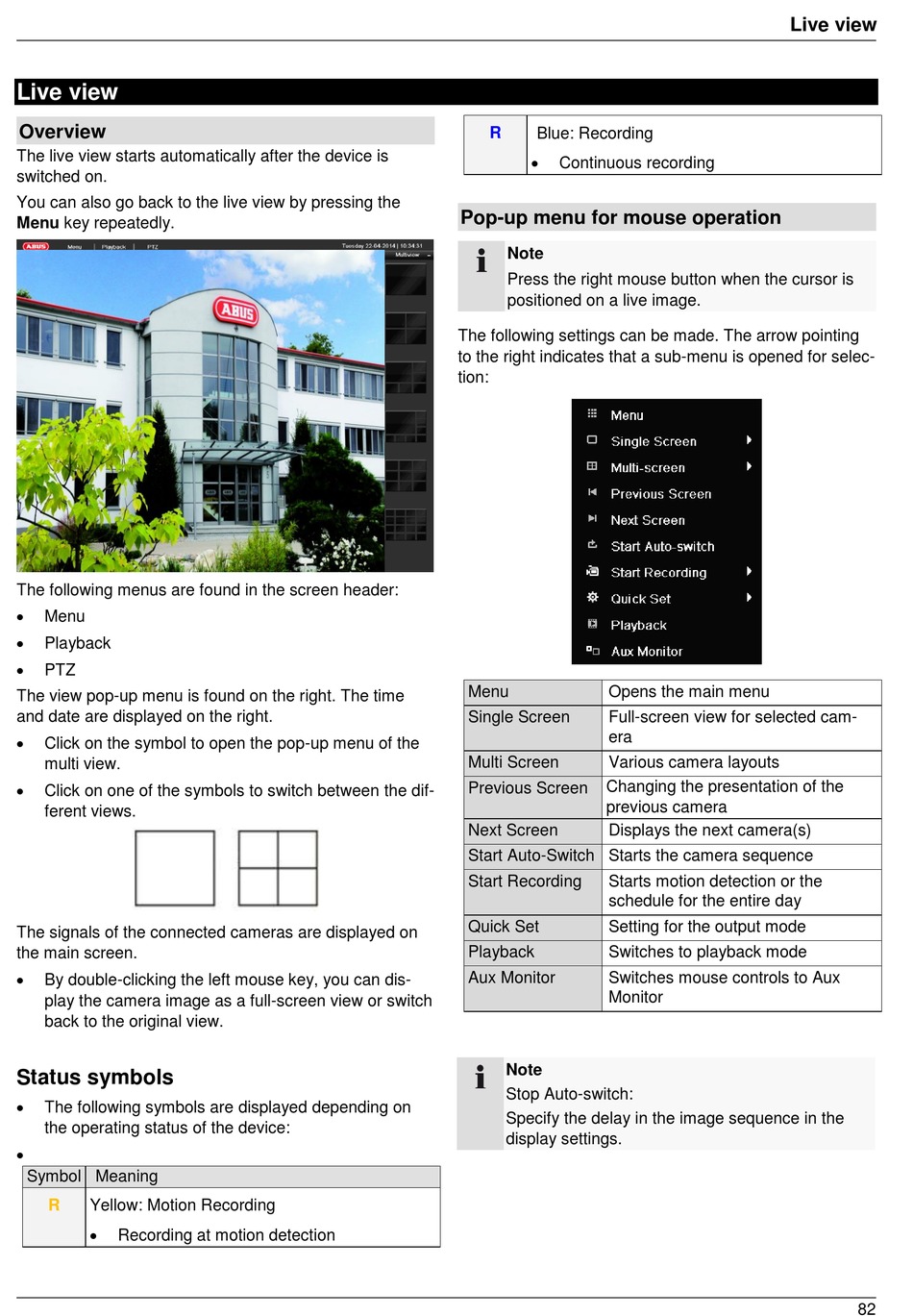

Live view

Overview

The live view starts automatically after the device is
switched on.
You can also go back to the live view by pressing the
Menu key repeatedly.
The following menus are found in the screen header:

Menu

Playback

PTZ
The view pop-up menu is found on the right. The time
and date are displayed on the right.

Click on the symbol to open the pop-up menu of the
multi view.

Click on one of the symbols to switch between the dif-
ferent views.
The signals of the connected cameras are displayed on
the main screen.

By double-clicking the left mouse key, you can dis-
play the camera image as a full-screen view or switch
back to the original view.

Status symbols


The following symbols are displayed depending on
the operating status of the device:

Symbol Meaning
R Yellow: Motion Recording

Recording at motion detection
R Blue: Recording

Continuous recording

Pop-up menu for mouse operation

Note
Press the right mouse button when the cursor is
positioned on a live image.
The following settings can be made. The arrow pointing
to the right indicates that a sub-menu is opened for selec-
tion:
Menu Opens the main menu
Single Screen Full-screen view for selected cam-
era
Multi Screen Various camera layouts
Changing the presentation of the
Previous Screen
previous camera
Next Screen Displays the next camera(s)
Start Auto-Switch Starts the camera sequence
Start Recording Starts motion detection or the
schedule for the entire day
Quick Set Setting for the output mode
Playback Switches to playback mode
Aux Monitor Switches mouse controls to Aux
Monitor
Note
Stop Auto-switch:
Specify the delay in the image sequence in the
display settings.
