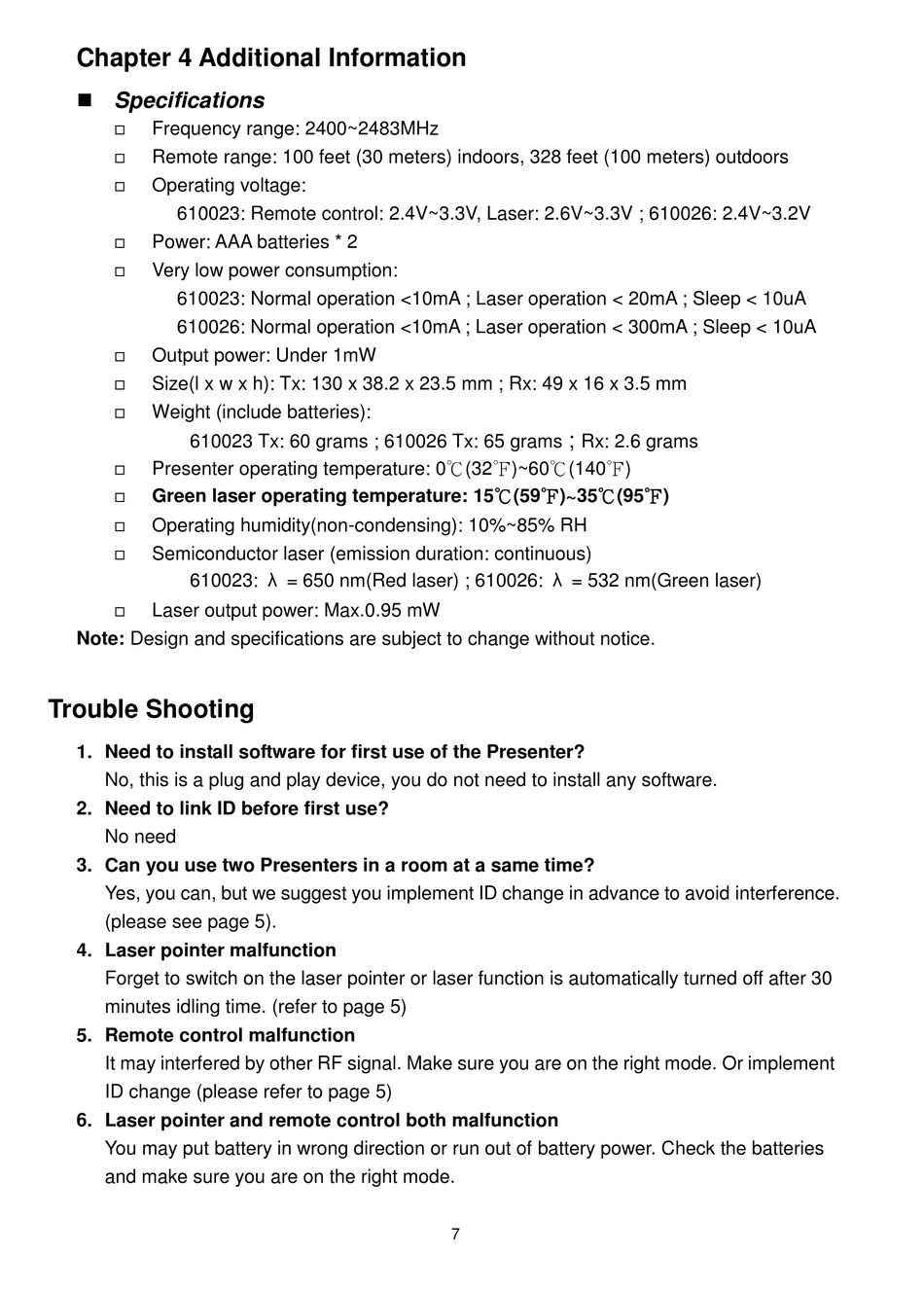

Chapter 4 Additional Information

 Specifications
Frequency range: 2400~2483MHz

Remote range: 100 feet (30 meters) indoors, 328 feet (100 meters) outdoors

Operating voltage:

610023: Remote control: 2.4V~3.3V, Laser: 2.6V~3.3V ; 610026: 2.4V~3.2V
Power: AAA batteries * 2

Very low power consumption:

610023: Normal operation <10mA ; Laser operation < 20mA ; Sleep < 10uA
610026: Normal operation <10mA ; Laser operation < 300mA ; Sleep < 10uA
Output power: Under 1mW

Size(l x w x h): Tx: 130 x 38.2 x 23.5 mm ; Rx: 49 x 16 x 3.5 mm

Weight (include batteries):

610023 Tx: 60 grams ; 610026 Tx: 65 grams
Presenter operating temperature: 0℃(32℉)~60℃(140℉)

Green laser operating temperature: 15℃(59℉)~35℃(95℉)

Operating humidity(non-condensing): 10%~85% RH

Semiconductor laser (emission duration: continuous)

610023: λ = 650 nm(Red laser) ; 610026: λ = 532 nm(Green laser)
Laser output power: Max.0.95 mW

Note: Design and specifications are subject to change without notice.

Trouble Shooting

1. Need to install software for first use of the Presenter?
No, this is a plug and play device, you do not need to install any software.
2. Need to link ID before first use?
No need
3. Can you use two Presenters in a room at a same time?
Yes, you can, but we suggest you implement ID change in advance to avoid interference.
(please see page 5).
4. Laser pointer malfunction
Forget to switch on the laser pointer or laser function is automatically turned off after 30
minutes idling time. (refer to page 5)
5. Remote control malfunction
It may interfered by other RF signal. Make sure you are on the right mode. Or implement
ID change (please refer to page 5)
6. Laser pointer and remote control both malfunction
You may put battery in wrong direction or run out of battery power. Check the batteries
and make sure you are on the right mode.
;
Rx: 2.6 grams
7
