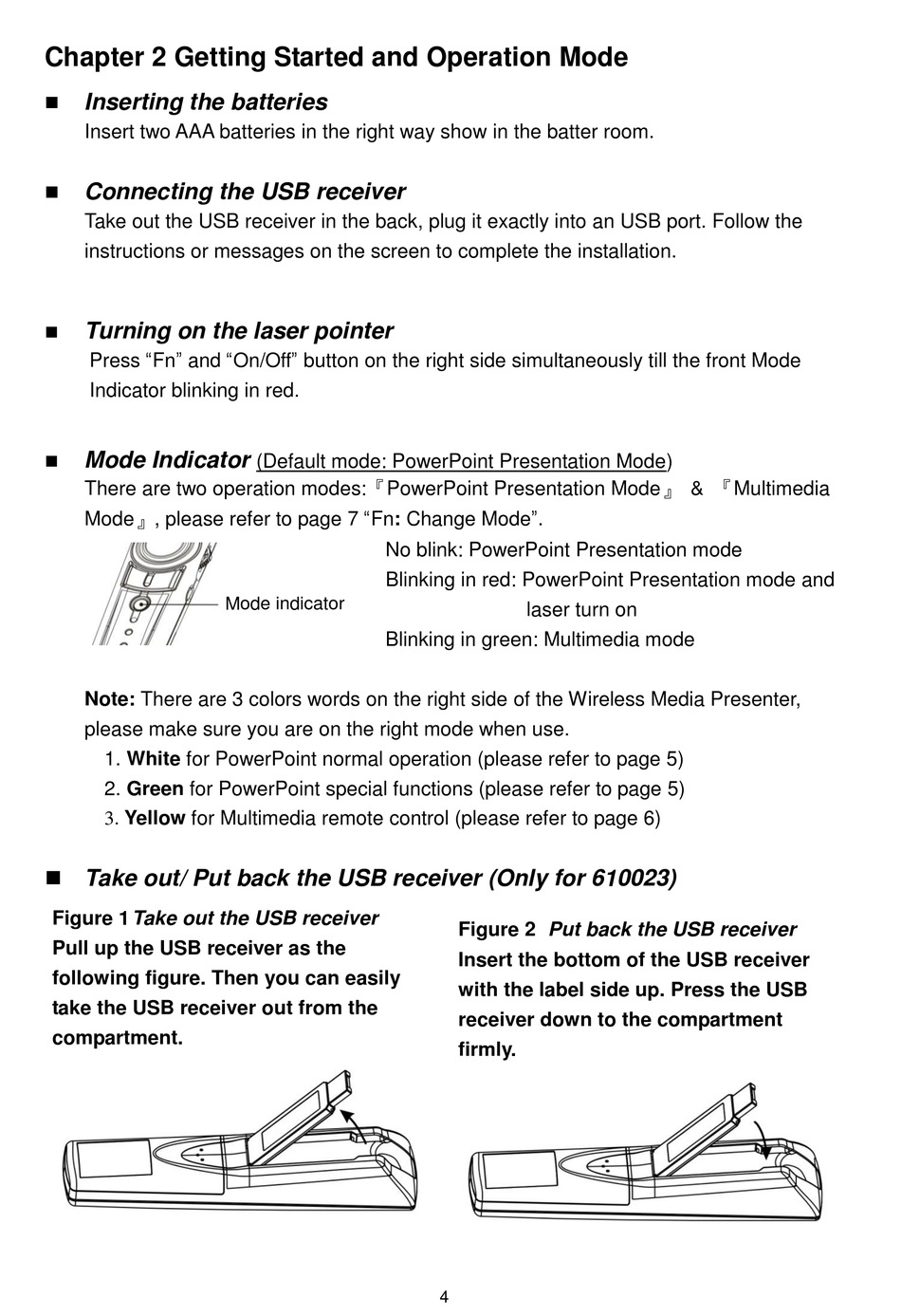

Chapter 2 Getting Started and Operation Mode


Inserting the batteries
Insert two AAA batteries in the right way show in the batter room.


Connecting the USB receiver

Take out the USB receiver in the back, plug it exactly into an USB port. Follow the
instructions or messages on the screen to complete the installation.


Turning on the laser pointer

Press "Fn" and "On/Off" button on the right side simultaneously till the front Mode
Indicator blinking in red.
 Mode Indicator
There are two operation modes:『PowerPoint Presentation Mode』 & 『Multimedia
Mode』, please refer to page 7 "Fn: Change Mode".
Note: There are 3 colors words on the right side of the Wireless Media Presenter,
please make sure you are on the right mode when use.
1. White for PowerPoint normal operation (please refer to page 5)
2. Green for PowerPoint special functions (please refer to page 5)
3. Yellow for Multimedia remote control (please refer to page 6)
 Take out/ Put back the USB receiver (Only for 610023)
Figure 1 Take out the USB receiver
Pull up the USB receiver as the
following figure. Then you can easily
take the USB receiver out from the
compartment.
(Default mode: PowerPoint Presentation Mode)
No blink: PowerPoint Presentation mode
Blinking in red: PowerPoint Presentation mode and
Mode indicator
Blinking in green: Multimedia mode
laser turn on
Figure 2 Put back the USB receiver
Insert the bottom of the USB receiver
with the label side up. Press the USB
receiver down to the compartment
firmly.
4
