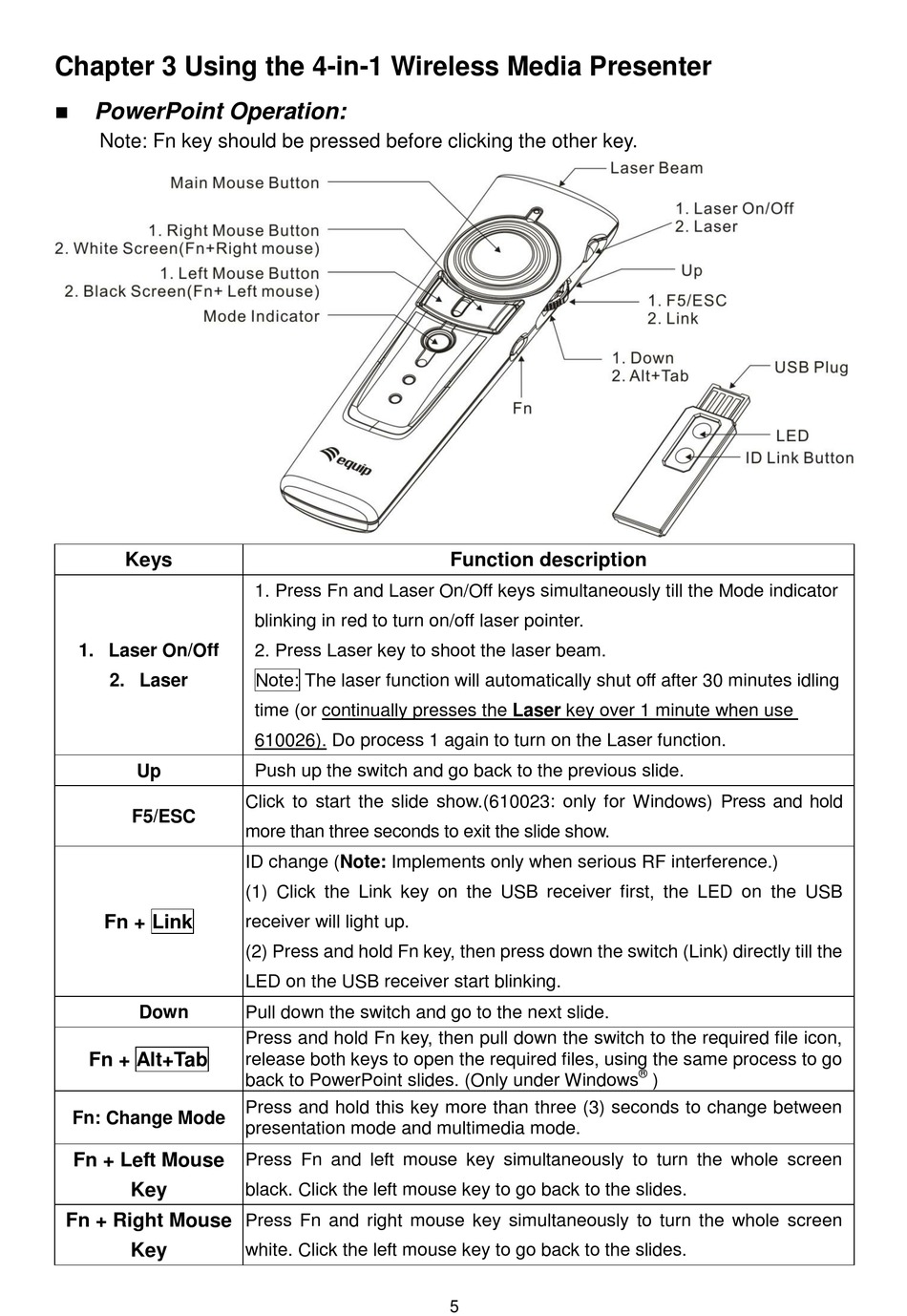

Chapter 3 Using the 4-in-1 Wireless Media Presenter


PowerPoint Operation:

Note: Fn key should be pressed before clicking the other key.
Keys
1. Laser On/Off
2. Laser
Up
F5/ESC
Fn + Link
Down
Fn + Alt+Tab
Fn: Change Mode
Fn + Left Mouse
Key
Fn + Right Mouse
Key
1. Press Fn and Laser On/Off keys simultaneously till the Mode indicator
blinking in red to turn on/off laser pointer.
2. Press Laser key to shoot the laser beam.
Note: The laser function will automatically shut off after 30 minutes idling
time (or continually presses the Laser key over 1 minute when use
610026). Do process 1 again to turn on the Laser function.
Push up the switch and go back to the previous slide.
Click to start the slide show.(610023: only for Windows) Press and hold
more than three seconds to exit the slide show.
ID change (Note: Implements only when serious RF interference.)
(1) Click the Link key on the USB receiver first, the LED on the USB
receiver will light up.
(2) Press and hold Fn key, then press down the switch (Link) directly till the
LED on the USB receiver start blinking.
Pull down the switch and go to the next slide.
Press and hold Fn key, then pull down the switch to the required file icon,
release both keys to open the required files, using the same process to go
back to PowerPoint slides. (Only under Windows
Press and hold this key more than three (3) seconds to change between
presentation mode and multimedia mode.
Press Fn and left mouse key simultaneously to turn the whole screen
black. Click the left mouse key to go back to the slides.
Press Fn and right mouse key simultaneously to turn the whole screen
white. Click the left mouse key to go back to the slides.
Function description
5
®
)
