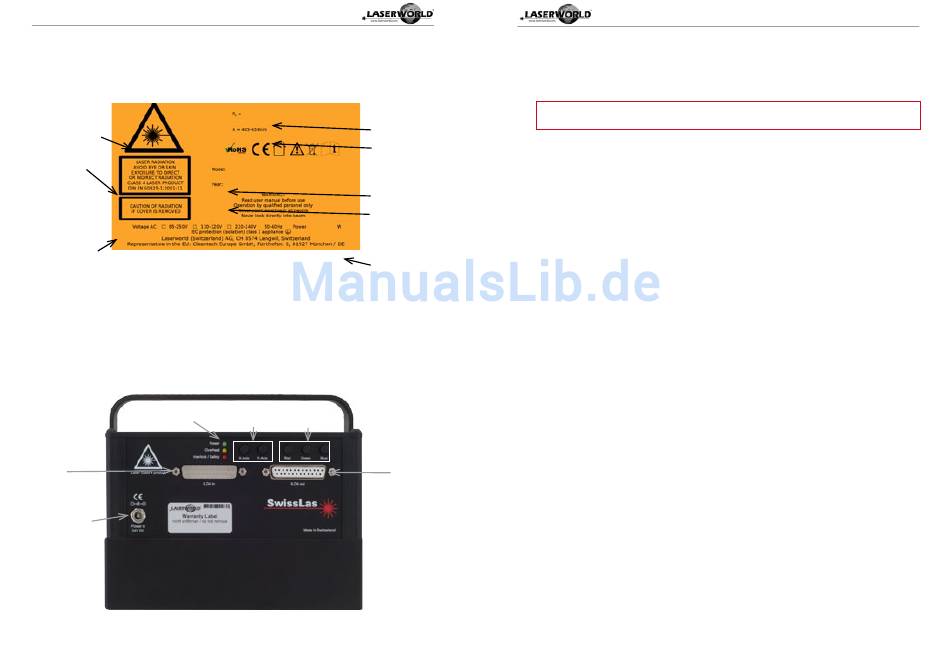

6. Warnings and other notices on the device
Please read manual before operation
Laser radiation!
Avoid exposure
to beam.
Laser class 4
Caution of
radiation if cover
is removed
7. Device connections
LEDs for power, over-
heat and interlock
ILDA in
connection for
power external
PSU
page 6 / 20
Output power
wavelength
model type
production
year
power supply
& consumption
trim pots for trim pots for co-
x / y shift lor adjustments
ILDA out
8. Operation
1. Please notice:
Always connect the device to the power supply first before connecting it to the
grid.
Make sure that your device is provided with the correct voltage. Wrong voltage could
lead to irreparable damages. Please find the correct voltage data in the synoptical table
at the end of this manual. It must be ensured that the device is not directed to people or
inflammable objects during installation.
The "Power" diode on the rear side of the device begins to light up after the device has
been connected to power.
ILDA in / ILDA out
The device can be controlled via ILDA control signal. There are a ILDA-in (ILDA input) and a
ILDA-out (ILDA output) interfaces on the rear side of the device. Connect the laser system
to the control interface (DAC) by using an ILDA cable. Do not connect the laser to standard
parallel port at your computer, but always use an appropriate ILDA interface (usually is sold
together with the laser control software). After that you are able to control your laser by a
showlaser software (e.g. Phoenix or Pangolin). Use the ILDA-out interface to daisy-chain the
signals (from ILDA-in) to a further device.
2. X/Y Axis
There are two trim pots for X and Y axis adjustments on the rear side of the unit. Use the
X-Axis pot to vary or to glean the picture along the x-axis. Use the Y-Axis pot to vary or to
glean the picture along the Y-axis. Avoid that both pots are set to centerposition at the
same time. Otherwise the power density of the beam gets extremly high! (You can avoid
this by activating the safety with beam block.)
3. Colors
The trim pots Red, Green and Blue on the rear side of the device can be used to adjust the
single colors in their color balance.
Red: Turn the „Red"- pot to adjust the red color balance.
Green: Turn the „Green"- pot to adjust the red color balance.
Blue: Turn the „Blue"- pot to adjust the red color balance.
4. Overheat
Find the "Overheat"-LED below the "Power"-LED on the rear side of the device. By de-
fault the unit has an integrated protection against overheating. To avoid overheating,
the overheat control reduces the output power without switching the device off. If the
temperature of the device (not air temperature) becomes to high, the overheat LED lights
up and the output power of the device gets reduced. Please improve ventilation if the
Manual: Pure Micro Series
page 7 / 20
