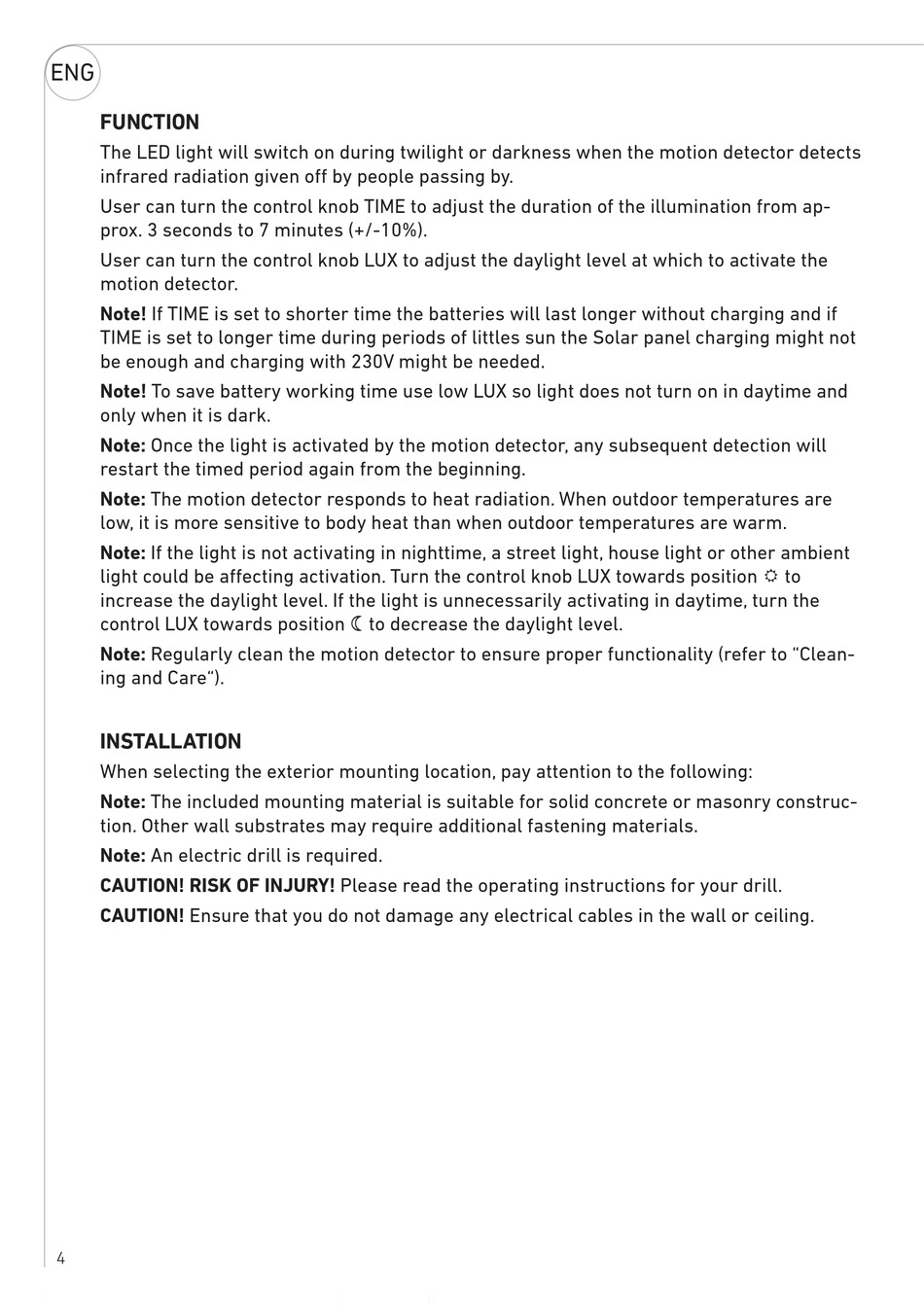

Installation - RUSTA 307512260101 Gebrauchsanweisung

ENG
FUNCTION
The LED light will switch on during twilight or darkness when the motion detector detects
infrared radiation given off by people passing by.
User can turn the control knob TIME to adjust the duration of the illumination from ap-
prox. 3 seconds to 7 minutes (+/-10%).
User can turn the control knob LUX to adjust the daylight level at which to activate the
motion detector.
Note! If TIME is set to shorter time the batteries will last longer without charging and if
TIME is set to longer time during periods of littles sun the Solar panel charging might not
be enough and charging with 230V might be needed.
Note! To save battery working time use low LUX so light does not turn on in daytime and
only when it is dark.
Note: Once the light is activated by the motion detector, any subsequent detection will
restart the timed period again from the beginning.
Note: The motion detector responds to heat radiation. When outdoor temperatures are
low, it is more sensitive to body heat than when outdoor temperatures are warm.
Note: If the light is not activating in nighttime, a street light, house light or other ambient
light could be affecting activation. Turn the control knob LUX towards position  to
increase the daylight level. If the light is unnecessarily activating in daytime, turn the
control LUX towards position  to decrease the daylight level.
Note: Regularly clean the motion detector to ensure proper functionality (refer to "Clean-
ing and Care").

INSTALLATION

When selecting the exterior mounting location, pay attention to the following:
Note: The included mounting material is suitable for solid concrete or masonry construc-
tion. Other wall substrates may require additional fastening materials.
Note: An electric drill is required.
CAUTION! RISK OF INJURY! Please read the operating instructions for your drill.
CAUTION! Ensure that you do not damage any electrical cables in the wall or ceiling.
