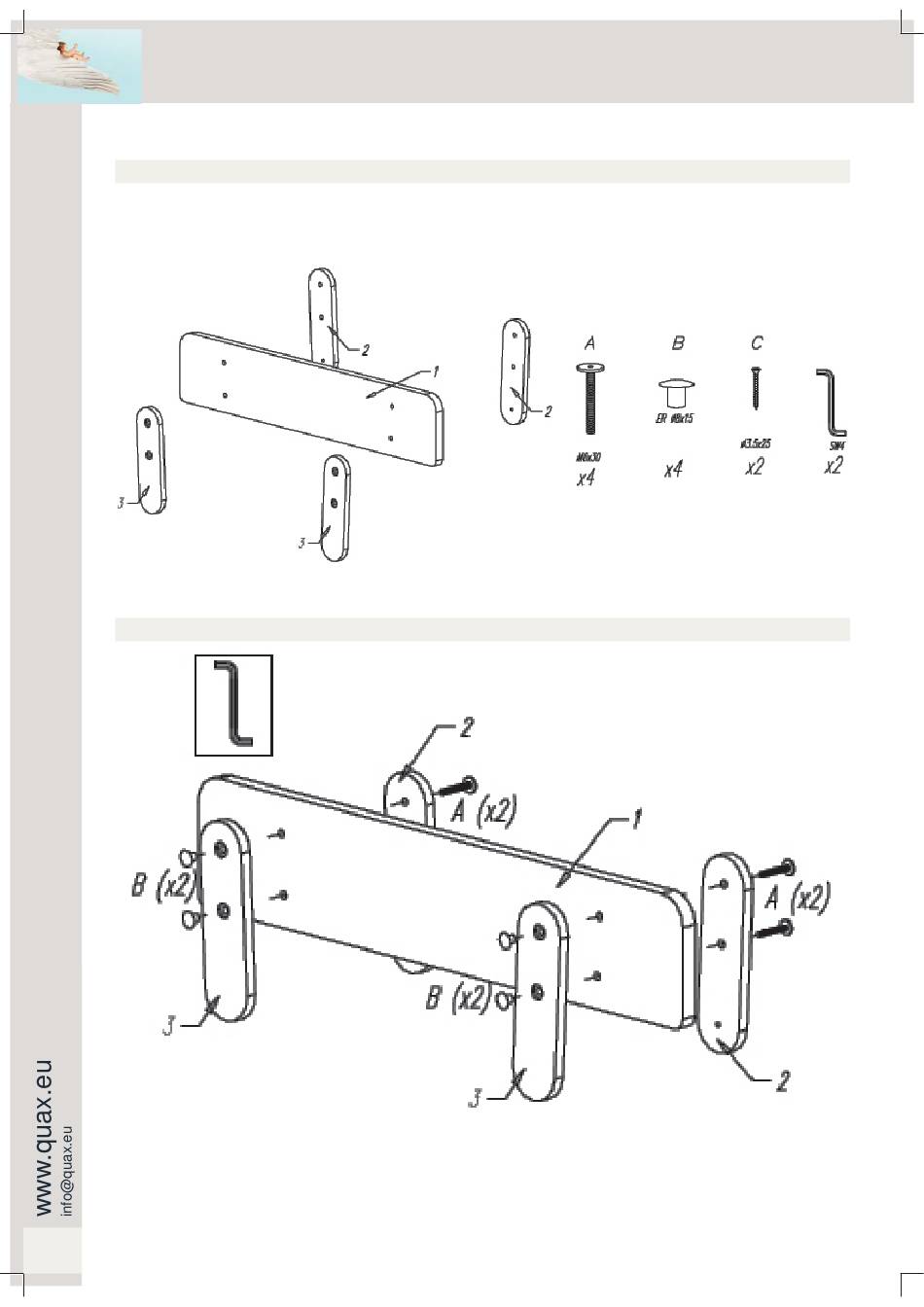

3. Parts list

Check whether all parts mentioned below are included in the packaging.
4. Assembling the barrier
Step 1 : Use the side 1, the brackets 2 and 3, four bolts A and four nuts B
Place the pair of brackets (2) in front of the provided drillings of the side (1). Push four bolts (A) into the drillings
of the mounting supports and the side. Place the other pair of brackets (3) in front of the holes provided along the
other side of the barrier (1). Push four nuts (B) into the holes of the supports and tighten the bolts (A).
16
Kinderpark met verstelbare bodem
54 01 45xxXL-BR 01 02 43XX
Laufgitter mit verstelbarer Boden
Bedrail voor kinderbed
Parc enfant avec fond réglable
Schutzwand für Kinderbett Safety barrier for baby bed
Playpen with adjustable bottom
Barrière pour lit enfant
