Model:SL2150/B
Before using or installing this sensor, kindly read the instructions and follow safety rules or let the qualified
company mount it.
Thank you for choosing the item of company PANLUX s.r.o.
Technical datas
Input voltage: 230V~50Hz
Power in quite mode: 0,45W
Detection angle: 140 stupòù
Reach: max. 12m, adjustable
Installation sit: indoors
Protection: IP20
Funkce
ON/OFF switch, light control (LUX), high sensitive sound control (MIC), long distance reach. This sensor can
replace simple switch.
Installation
Before intallation make sure that the electricity is disconnected.
You will need deep mounting box for connecting the sensor.
Loose the connection column on the bottom of sensor, connect
wires according marks and tight the screws.
Connect to mains power supply and test the sensor.
Possition ON - light is switched on, OFF - light is off.
PIR - function IR for adjusting reach
MIC - function IR for adjusting sound control sensitivity
LUX - light control
TIME - time control

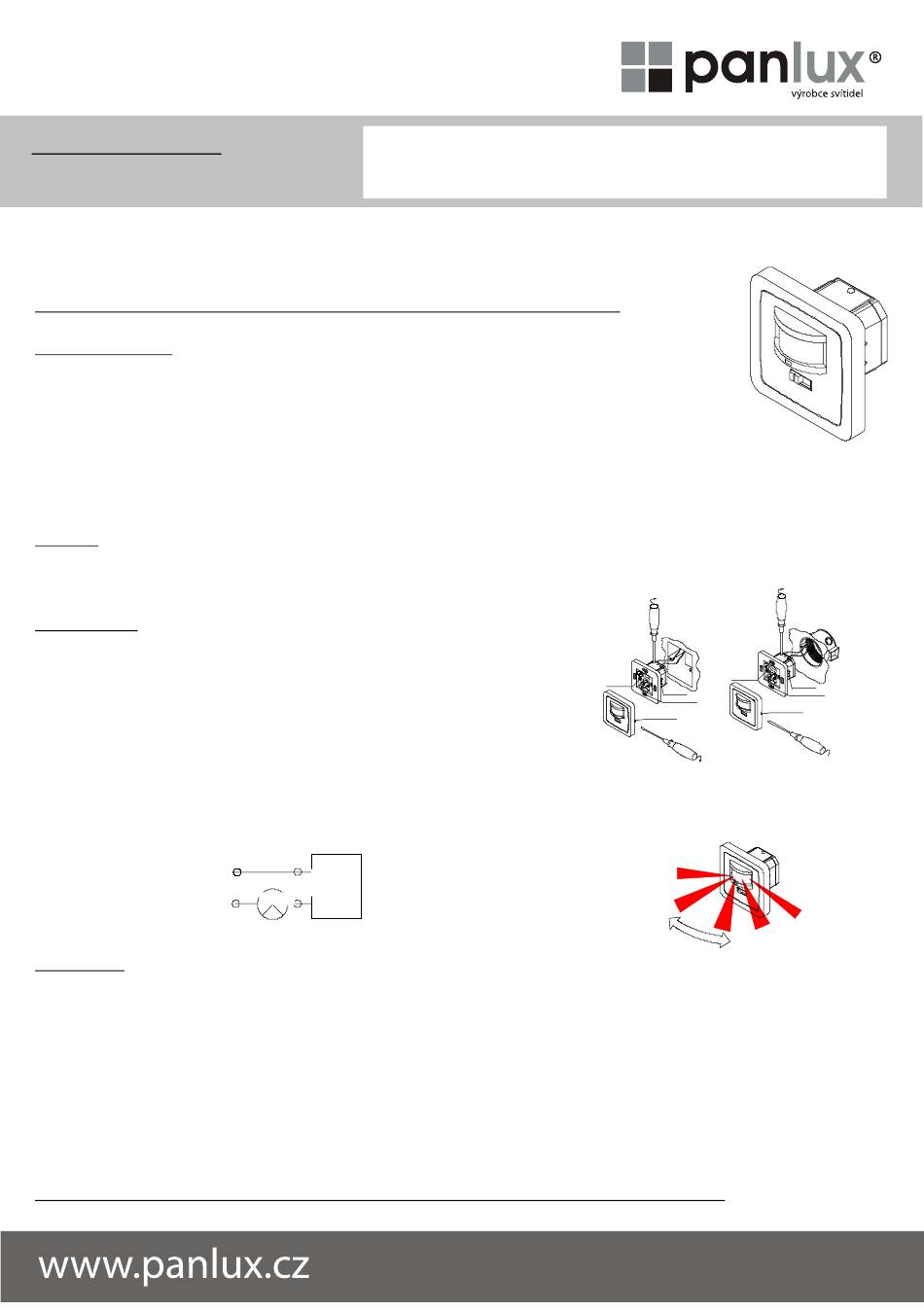

Scheme of connection:
Attention:
Do not install the sensor near temperature alteration zone (air condition, central heating etc.)
During any revision or manipulation with sensor, make sure the sensor is disconnected from mains supply.
Sensor SL2150 should not be connected to fluorescent lighting source. If you really want to connect it to
fluorescent lamp, use in parallel connection with incadescent lamp.
If the sensor is mechanically damaged, guarantee cannot be allowed.
SENZOR 140° switch
Light control: 3 - 1000LUX +/-5%
Time control: 5sec +/-5sec až 9min +/-30sec
Sound control sensitivity: 30 - 90db
Installation height: 0,4 - 1,8m
Safety fuse: 2,5A (easy replaceable)
Load:
senzor
SENSOR
~IN
SWI TCH
svítidlo
LOAD
500W (incadescent lamp)
200W (fluorescent lamp
Correct testing of sensor:
SPLAY BOLT
SPLAY BOLT
FIXE D ARM
MOUNTING HOL E
OPEN FACEP LAT
O PEN FAC EPLAT
FIX ED ARM
MOUNTING HOLE
