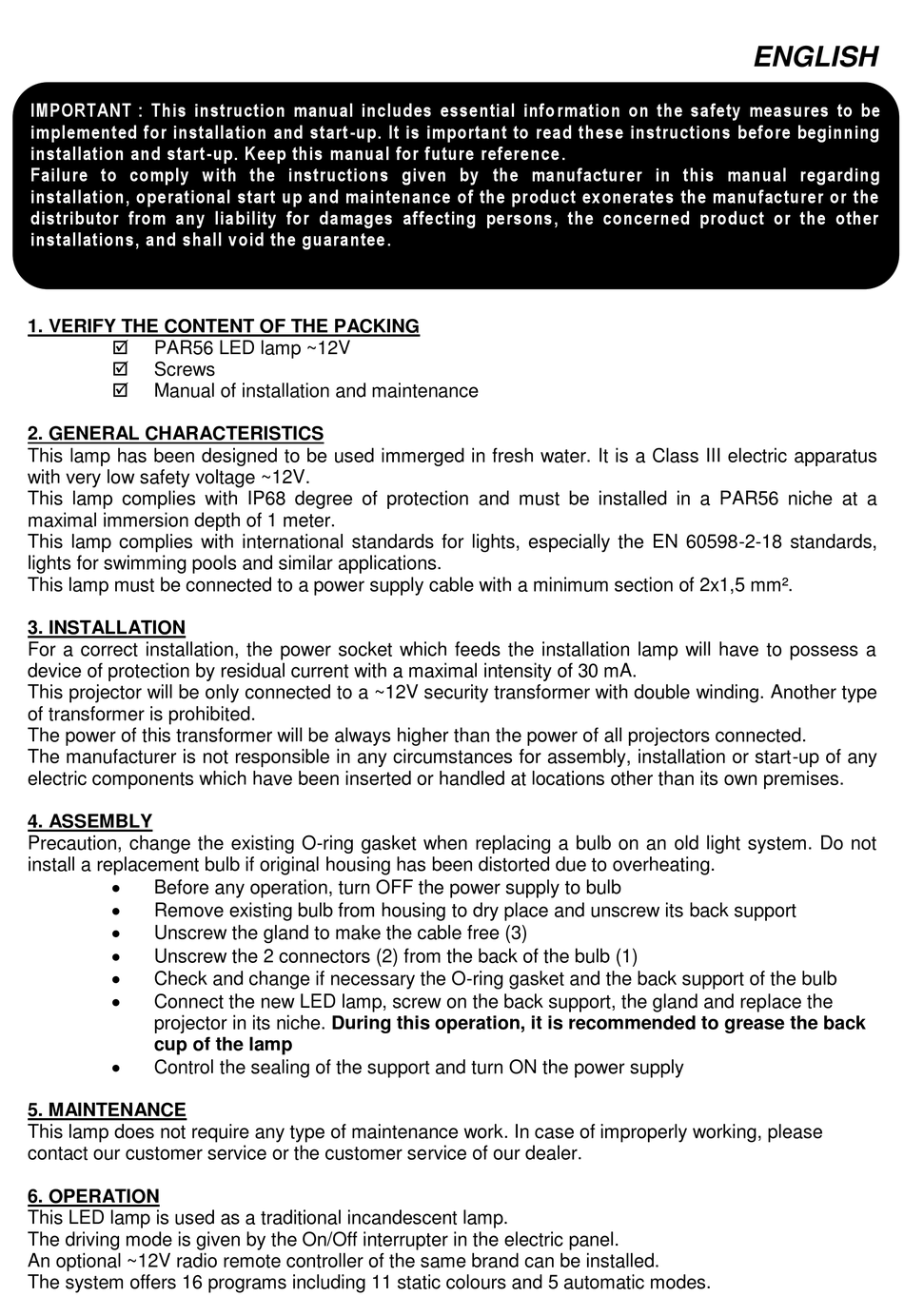

IMPORTANT : This instruction manual includes essential info rmation on the safety measures to be
implemented for installation and start -up. It is important to read these instructions before beginning
installation and start-up. Keep this manual for future reference .
Failure to comply with the instructions given by the manufacturer in this manual regarding
installation, operational start up and maintenance of the product exonerates the manufacturer or the
distributor from any liability for damages affecting persons, the concerned product or the other
installations, and shall void the guarantee.
1. VERIFY THE CONTENT OF THE PACKING

PAR56 LED lamp ~12V

Screws

Manual of installation and maintenance
2. GENERAL CHARACTERISTICS
This lamp has been designed to be used immerged in fresh water. It is a Class III electric apparatus
with very low safety voltage ~12V.
This lamp complies with IP68 degree of protection and must be installed in a PAR56 niche at a
maximal immersion depth of 1 meter.
This lamp complies with international standards for lights, especially the EN 60598-2-18 standards,
lights for swimming pools and similar applications.
This lamp must be connected to a power supply cable with a minimum section of 2x1,5 mm².
3. INSTALLATION
For a correct installation, the power socket which feeds the installation lamp will have to possess a
device of protection by residual current with a maximal intensity of 30 mA.
This projector will be only connected to a ~12V security transformer with double winding. Another type
of transformer is prohibited.
The power of this transformer will be always higher than the power of all projectors connected.
The manufacturer is not responsible in any circumstances for assembly, installation or start-up of any
electric components which have been inserted or handled at locations other than its own premises.
4. ASSEMBLY
Precaution, change the existing O-ring gasket when replacing a bulb on an old light system. Do not
install a replacement bulb if original housing has been distorted due to overheating.

Before any operation, turn OFF the power supply to bulb

Remove existing bulb from housing to dry place and unscrew its back support

Unscrew the gland to make the cable free (3)

Unscrew the 2 connectors (2) from the back of the bulb (1)

Check and change if necessary the O-ring gasket and the back support of the bulb

Connect the new LED lamp, screw on the back support, the gland and replace the
projector in its niche. During this operation, it is recommended to grease the back
cup of the lamp

Control the sealing of the support and turn ON the power supply

5. MAINTENANCE

This lamp does not require any type of maintenance work. In case of improperly working, please
contact our customer service or the customer service of our dealer.

6. OPERATION

This LED lamp is used as a traditional incandescent lamp.
The driving mode is given by the On/Off interrupter in the electric panel.
An optional ~12V radio remote controller of the same brand can be installed.
The system offers 16 programs including 11 static colours and 5 automatic modes.
