2. General Notes

• The operating instructions are a component part of the
product and must therefore be kept in a safe place as
well as included with the product, if the latter is given to
someone else.
• Märklin switched mode power packs may only be used
with products from Märklin.
3. Connections to Märklin Digital
The wiring for a model railroad layout must be done with
wire with a cross section of at least 0.5 square millimeters /
approximately 0.0008 square inches.
Possible plug connections:
Connections: See the instructions for use for the unit in
question or see page 20.

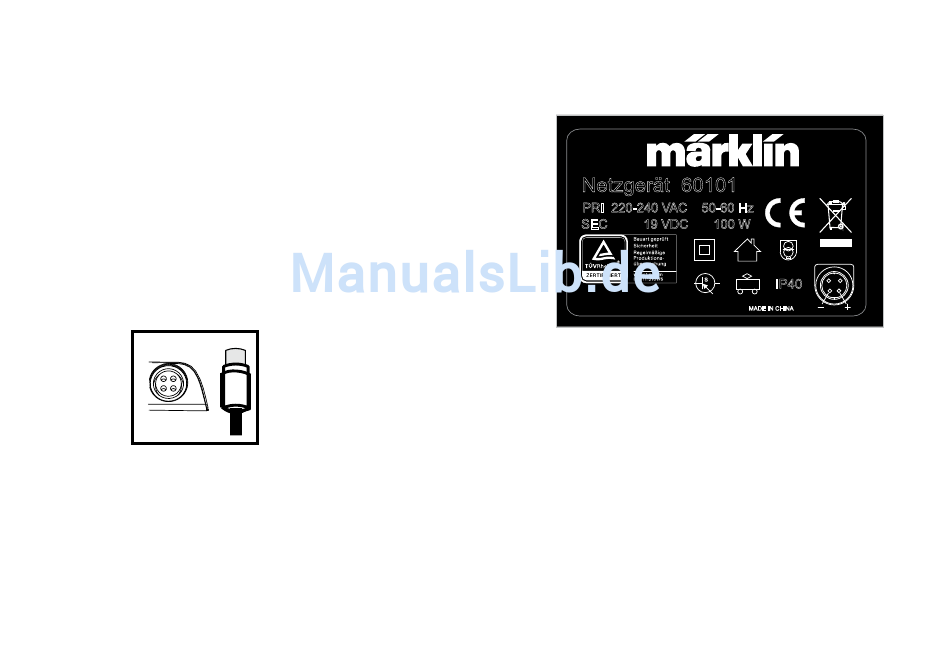

4. Technical Data

See the specifications plate on the power pack.
Example:
Netzgerät 60101
PRI 220-240 VAC
SEC 19 VDC
Gebr. Märklin & Cie GmbH
Stuttgarter Straße 55-57
73033 Göppingen, Germany
The specification label must be applied in another location
on the switched mode power pack when the latter is to be
mounted on a permanent board or platform.

5. Overload Protection

A built-in overload protection protects the switched mode
power pack from damage in the event of an overload or a
short circuit. The switched mode power pack turns itself off
and waits until the problem has been corrected. Do not try
to run any locomotive or control any turnout as long as the
problem is still present.
50-60 Hz
100 W
IP40
MM-YY MADE IN CHINA
7
