Bosch UB-10DB Installationsanleitung Seite 11

Surface Mount 10" Subwoofer
Accessories
220.0 mm
[8.66 in]
220.0 mm
[8.66 in]

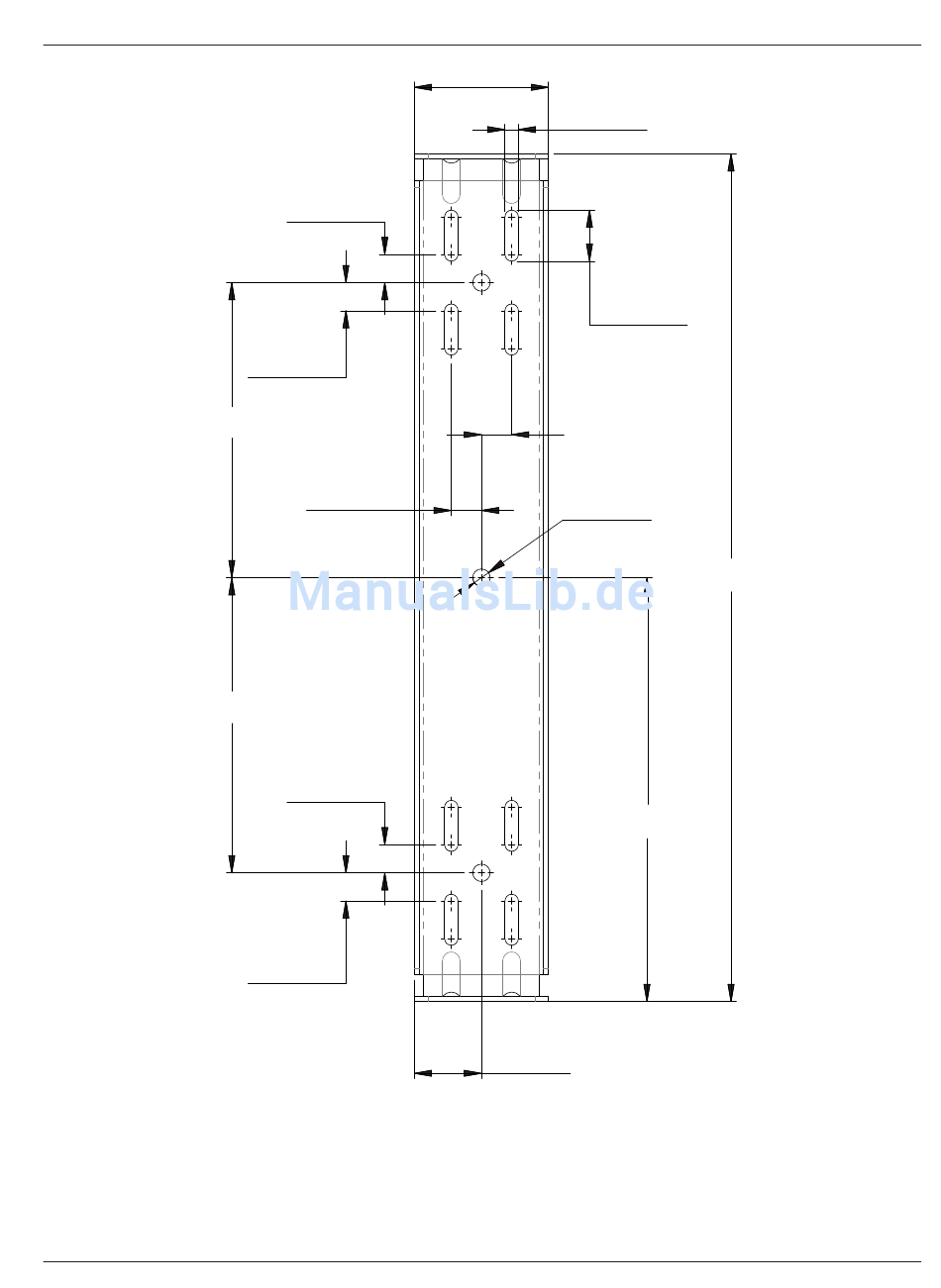

Abbildung 5.1: Abmessungen – 10"-U-Halterung
Electro-Voice | Bosch Security Systems B.V.
2x 21.0 mm
[2x 0.82 in]
2x 21.0 mm
[2x 0.82 in]
4x 22.5 mm
[4x 0.89 in]
2x 21.0 mm
[2x 0.82 in]
2x 21.0 mm
[2x 0.82 in]
100.0 mm
[3.94 in]
8x 10.0 mm [8x 0.39 in]
4x 22.5 mm [4x 0.87 in]
3x ∅ 13.0 mm
[3x ∅ 0.51 in]
3x 50.0 mm
[3x 1.97 in]
Installation note
Technische Daten | de
8x 38.1 mm
[8x 1.50 in]
632.0 mm
[24.88 in]
316.0 mm
[12.44 in]
11
2017.09 | 01 |
