V7 UPSSNMP1 Schnellinstallationsanleitung Seite 2

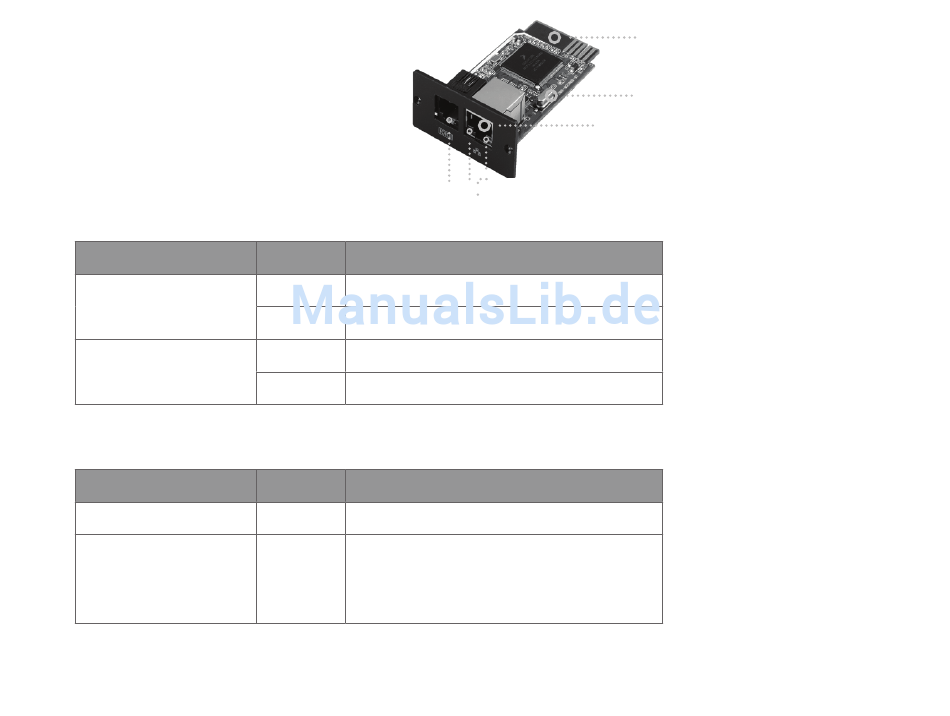

Overview
1. RJ45 Ethernet port (10/100BaseT)
2. Sensor / Data transmission port (optional)
3. Connection to UPS slot
4. Ethernet port status LEDs
5. Jumper to restore default setting
Ethernet Port Status LEDS
LED
100 Mb LED (Green)
Link Status LED (Yellow)
Pin Assignment for Jumper
Pin #
Pin 1 + Pin 2
Pin 2 + Pin 3
Note: After the card is restored to default, make sure to change the jumper setting back
to Pin 1 and Pin 2 for normal operation.
2
Status Description
On Port is operating at 100 Mb/s
Off Port is operating at 10 Mb/s
Flashing Link is Active
Off Card is not connected to the network
Status Description
Closed Normal operation
The IP address of the SNMP web card and
password will restore to default setting.
Closed
Default static IP address: (192.168.102.230)
Default password: 12345678
3
5
1
4
