Functional Diagram; Order Code - gefran RZ 40...HDP0 Series Bedienungsanleitung

Control
MODEL
NOMINAL VOLTAGE
400VCArms
480VCArms
NOMINAL CURRENT
10ACArms
25ACArms
40ACArms
55ACArms
Please, contact GEFRAN sales people for the codes availability.
GEFRAN spa reserves the right to make any kind of design or functional modification at any moment without prior notice
In conformity to ECC 89/336/CEE and 73/23/CEE with reference to standards:
- EN 50082-2 (immunity in industrial enviroment)- EN 50081-1 (emission in residential enviroment) - EN 61010-1 (safety)

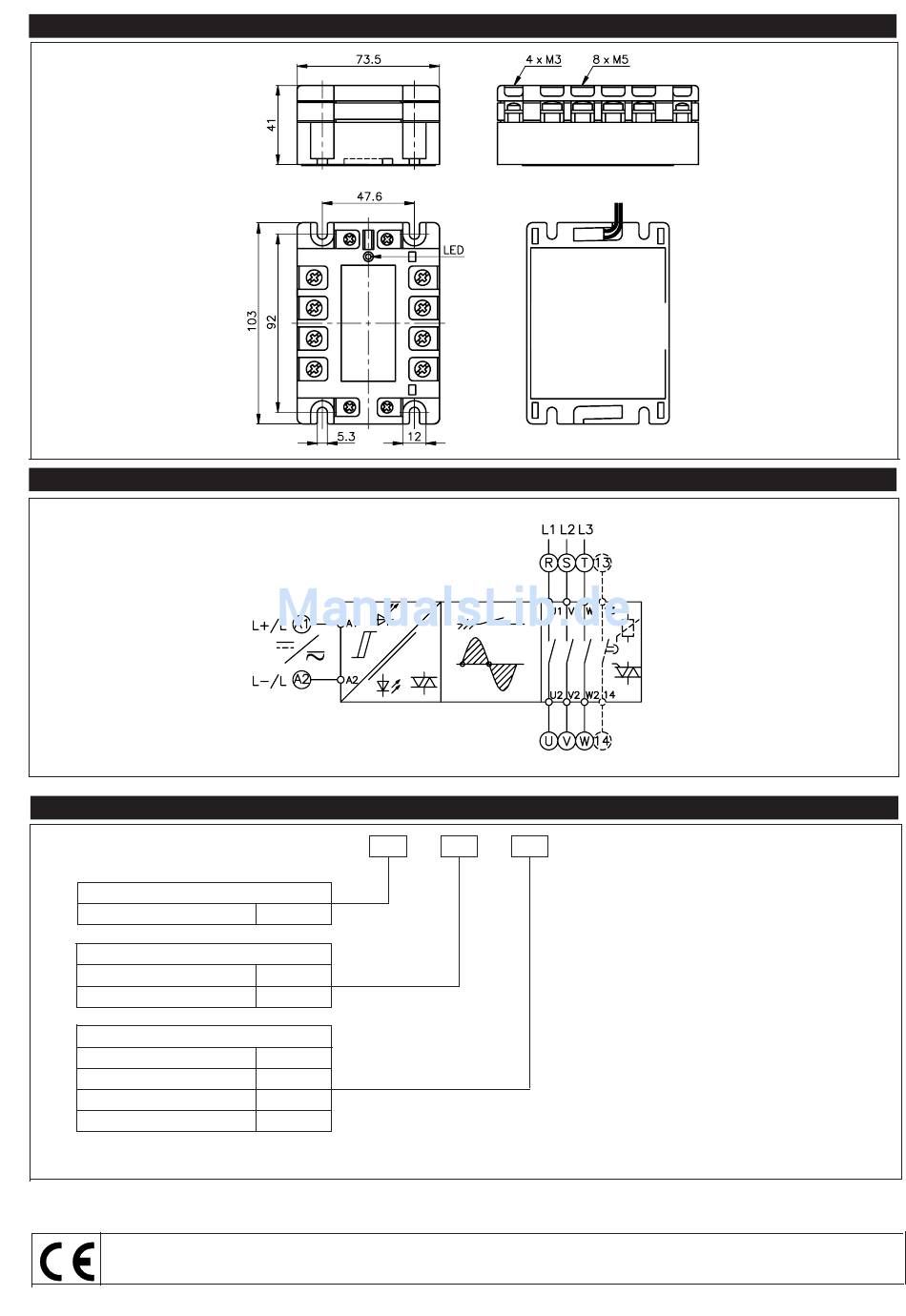

FUNCTIONAL DIAGRAM

input
RZ
40
48
10
25
40
55
DIMENSIONS
silicon paste

ORDER CODE

RZ
7
Use
Power supply input
Load output
HDP0
