Quax TRENDY Handbuch Seite 44

TRENDY
Quax
First dreams
®
First steps

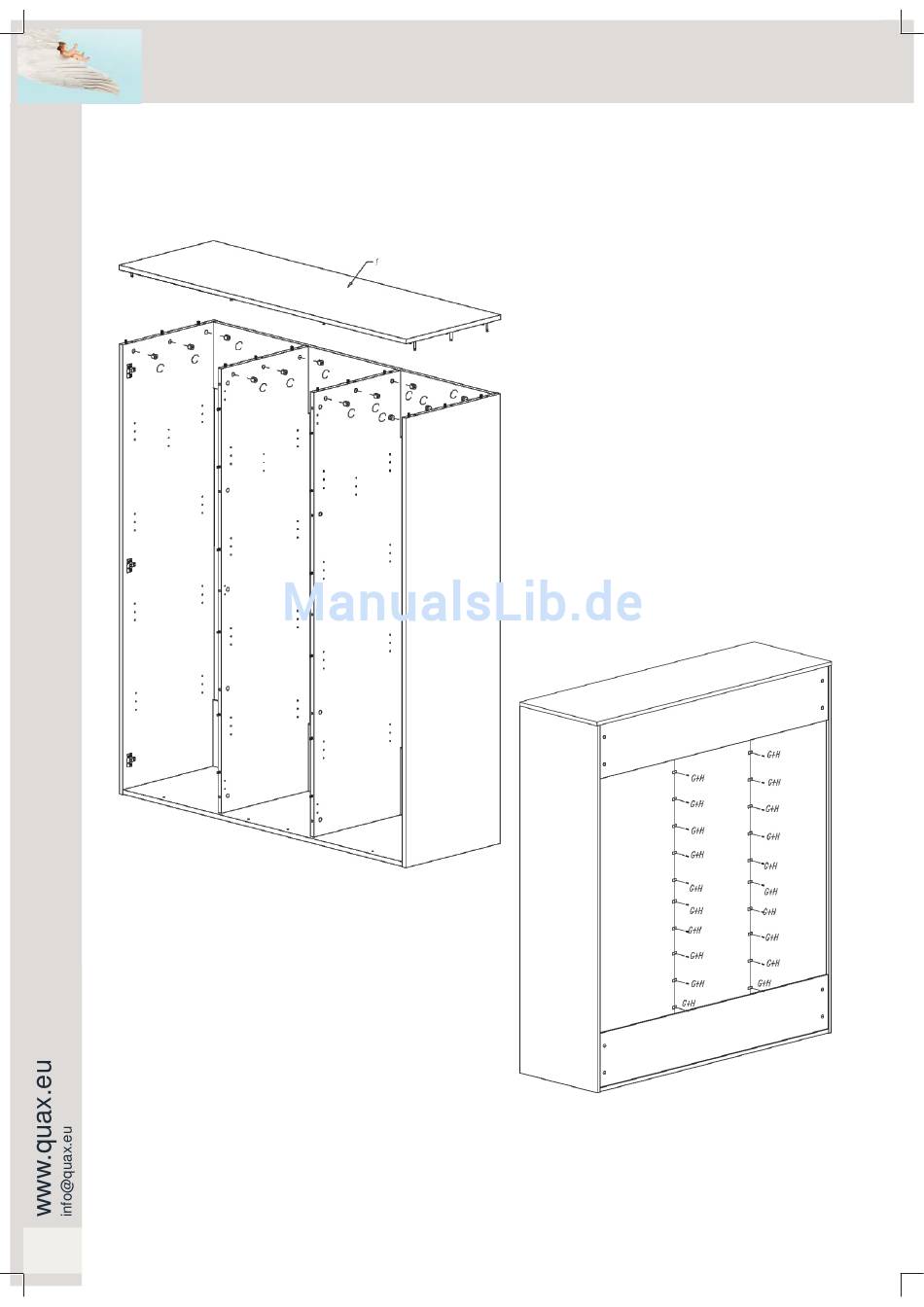

Step 6 : Use the parts of step 5, the top 1 and twelve ec-
centrics C
Push three eccentrics (C) in the drillings on the top of the
endsides (2L and 2R). Push three eccentrics (C) into the
holes on the inside of the intermediate sides (4). Push the
top (1) with its connectors into the holes and over the wood-
en dowels of all sides. Tighten the eccentrics.
44
Kleerkast met drie draaideuren
54 04 46xx-XL
Schrankwand mit drei Türen
Armoire avec 3 portes battantes
Step 7 : Use the parts of step 6, twenty connectors
G and twenty wood screws H
Push the connectors (G) on the back panels (10
and 11). Push the wood screws (H) through the
holes of the brackets and tighten in the intermedi-
ate sides.
Wardrobe with three doors
