First dreams
® ®
First steps

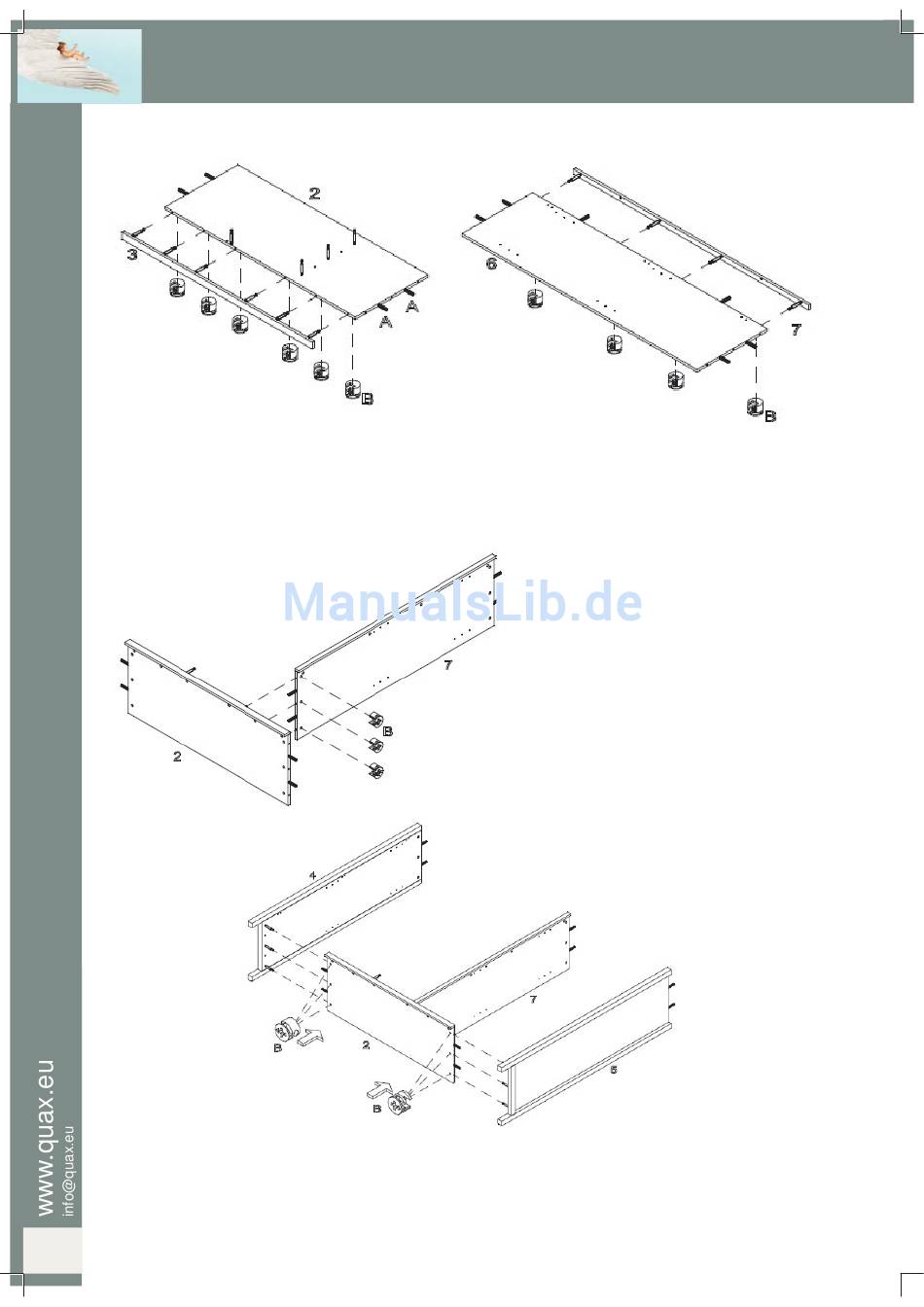

Step 4 : Use the bottom 2, its profi le 3, the intermidiate side 6, its profi le 7 and ten eccentrics B
Push six eccentrics (B) in the provided openings at the underside of the bottom (2). Push the bottom profi le (3)
with its connectors in the holes of the bottom and tighten the eccentrics of the profi le. Push four eccentrics (B) in
the provided openings at the underside of the intermediate side (6). Push its profi le (7) with its connectors in the
holes of the side and tighten the eccentrics.
Step 6 : Use the end sides of step 2, the parts of step 5 and six eccentrics B
Push the bottom (2) with its wooden dowels in the provided openings and over the connectors of the sides
(4 and 5). Push the eccentrics (B) in the provided openings at the underside of the bottom (2/3) and tighten
them.
30
Kleerkast met drie draaideuren
54 04 25xx
Schrankwand mit drei Drehtüren
Armoire avec trois portes
Wardrobe with three doors
Step 5 : Use the parts of step 4 and three eccen-
trics B
Push three eccentrics (B) in the provided openings
at the underside of the intermediate side (6). Push
the side with its wooden dowels in the holes of the
bottom and over the connectors. Tighten the ec-
centrics of the profi le
