4. Assembling the wardrobe

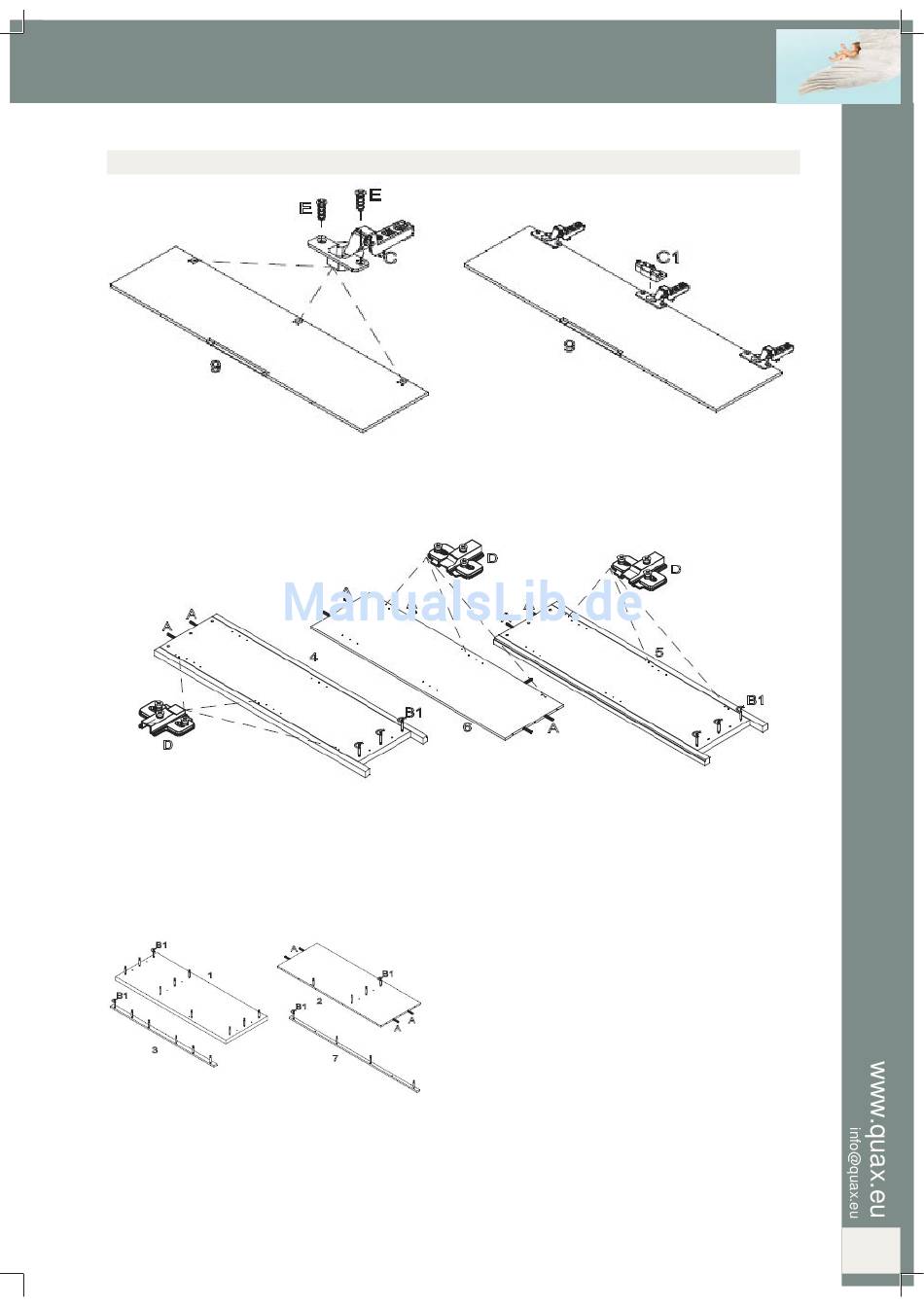

Step 1 : Use all doors 9, nine hinges C, three door brakes C1 and eightteen wood screws E
Push the hinges (C) in the provided openings of the doors (9) and fi x these with the wood screws (E). Push
a brake on the central hinge of each door (C1).
Step 2 : Use both sides 4 and 5, the intemediate side 6, nine hinge mounting plates D, ten wooden dowels
A and six connectors B1
Place the hinge mounting plates (D) on the provided openings of the sides (4 and 5) fi x them with the pro-
vided wood screws. Push two wooden dowels (A) per side in the provided openings on the upperside of
the side panels. Push two wooden dowels (A) in the provided openings on the upperside and at the bottom
of the intermediate side and two at the back. Fix three connectors (B1) per side in the provided openings
at the bottom of the side panels
Step 3 : Use the top 1, the top profi le 7, the bottom 2, the bottom profi le 3, twenty-four connectors B1 and
four wooden dowels A
Fix ten connectors (B1) in the provided openings of the top (1). Fix four connectors (B1) in the provided
openings of the bottom (2). Push four wooden dowels (A) in the provided openings left and right of the bot-
tom. Fix six connectors (B1) in the provided openings of the bottom profi le (3). Fix four connectors (B1) in
the provided openings of the top profi le (7).
