BEFORE INSTALLATION

Please read these instructions carefully before installation.
Remove existing seat cover as showen below
Please have the seat removed as accordingly
to your toilet.

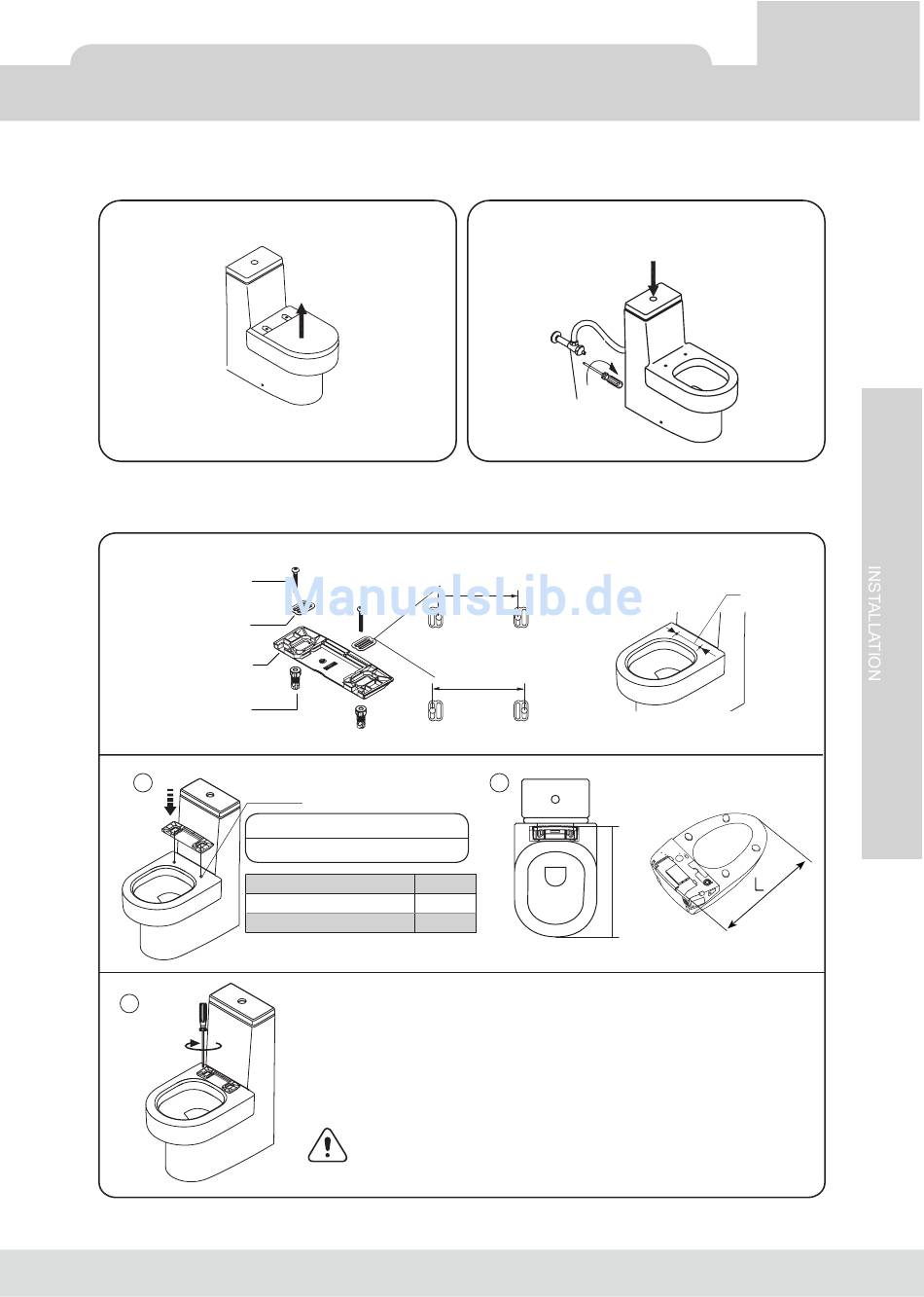

INSTALLATION MOUNTING PLATE
Check the size of the mounting holes
Screw
Washer
Docking plate
Mounting circle
1
Mounting hole 12mm to 17mm
3

INSTALLATION

C=140mm
+
C=160mm
+
ØA
Diameter (mm)
Seat Type L
Premium RF 480mm
Premium SF 490mm
1. Place Mounting Plate over mounting holes
2. Adjust mounting plate so that the length (L) between the front
of the toilet bowl (A) and back of mounting hook (B) is at the
same distance.
3. Tighten mounting bolts with screwdriver.
until the mounting plate is securely fastened to the toilet.
DO NOT flip-over the MULTICLIN with connectting to the
power sources.
WARNING
Turn off water shutoff valve completely
and flush to empty the toilet tank
Water shutoff valve.
+
+
