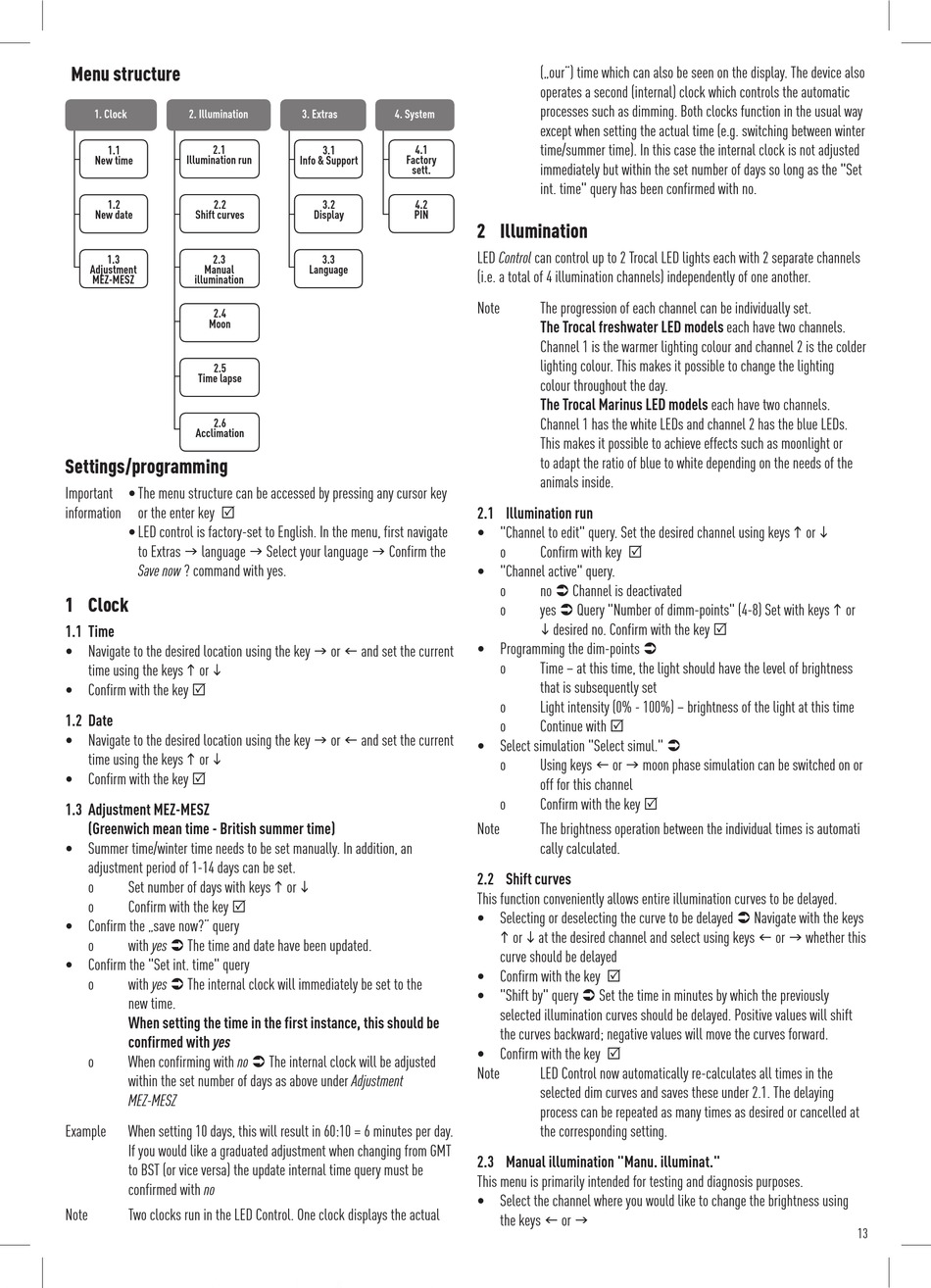

Menu structure

1. Clock 2. Illumination
2.1
1.1
New time Illumination run
1.2 2.2
New date Shift curves
1.3 2.3
Manual
Adjustment
MEZ-MESZ illumination
2.4
Moon
2.5
Time lapse
2.6
Acclimation
Settings/programming
Important • The menu structure can be accessed by pressing any cursor key
information or the enter key 
• LED control is factory-set to English. In the menu, first navigate
to Extras  language  Select your language  Confirm the
Save now ? command with yes.
1 Clock
1.1 Time
• Navigate to the desired location using the key  or  and set the current
time using the keys  or 
• Confirm with the key 
1.2 Date
• Navigate to the desired location using the key  or  and set the current
time using the keys  or 
• Confirm with the key 
1.3 Adjustment MEZ-MESZ
(Greenwich mean time - British summer time)
• Summer time/winter time needs to be set manually. In addition, an
adjustment period of 1-14 days can be set.
o Set number of days with keys  or 
o Confirm with the key 
• Confirm the „save now?" query
o with yes  The time and date have been updated .
• Confirm the "Set int. time" query
o with yes  The internal clock will immediately be set to the
new time .
When setting the time in the first instance, this should be
confirmed with yes
o When confirming with no  The internal clock will be adjusted
within the set number of days as above under Adjustment
MEZ-MESZ
Example When setting 10 days, this will result in 60:10 = 6 minutes per day.
If you would like a graduated adjustment when changing from GMT
to BST (or vice versa) the update internal time query must be
confirmed with no
Note Two clocks run in the LED Control. One clock displays the actual
3. Extras 4. System
4.1
3.1
Info & Support Factory
sett.
3.2 4.2
PIN
Display
3.3
Language
(„our") time which can also be seen on the display. The device also
operates a second (internal) clock which controls the automatic
processes such as dimming. Both clocks function in the usual way
except when setting the actual time (e.g. switching between winter
time/summer time). In this case the internal clock is not adjusted
immediately but within the set number of days so long as the "Set
int. time" query has been confirmed with no.
2 Illumination
LED Control can control up to 2 Trocal LED lights each with 2 separate channels
(i.e. a total of 4 illumination channels) independently of one another.
Note The progression of each channel can be individually set.
The Trocal freshwater LED models each have two channels .
Channel 1 is the warmer lighting colour and channel 2 is the colder
lighting colour . This makes it possible to change the lighting
colour throughout the day.
The Trocal Marinus LED models each have two channels .
Channel 1 has the white LEDs and channel 2 has the blue LEDs .
This makes it possible to achieve effects such as moonlight or
to adapt the ratio of blue to white depending on the needs of the
animals inside .
2.1 Illumination run
• "Channel to edit" query. Set the desired channel using keys  or 
o Confirm with key 
• "Channel active" query.
o no  Channel is deactivated
o yes  Query "Number of dimm-points" (4-8) Set with keys  or
 desired no. Confirm with the key 
• Programming the dim-points 
o Time – at this time, the light should have the level of brightness
that is subsequently set
o Light intensity (0% - 100%) – brightness of the light at this time
o Continue with 
• Select simulation "Select simul." 
o Using keys  or  moon phase simulation can be switched on or
off for this channel
o Confirm with the key 
Note The brightness operation between the individual times is automati
cally calculated.
2.2 Shift curves
This function conveniently allows entire illumination curves to be delayed.
• Selecting or deselecting the curve to be delayed  Navigate with the keys
 or  at the desired channel and select using keys  or  whether this
curve should be delayed
• Confirm with the key 
• "Shift by" query  Set the time in minutes by which the previously
selected illumination curves should be delayed. Positive values will shift
the curves backward; negative values will move the curves forward.
• Confirm with the key 
Note LED Control now automatically re-calculates all times in the
selected dim curves and saves these under 2.1. The delaying
process can be repeated as many times as desired or cancelled at
the corresponding setting .
2.3 Manual illumination "Manu. illuminat."
This menu is primarily intended for testing and diagnosis purposes.
• Select the channel where you would like to change the brightness using
the keys  or 
13
