3. Installation

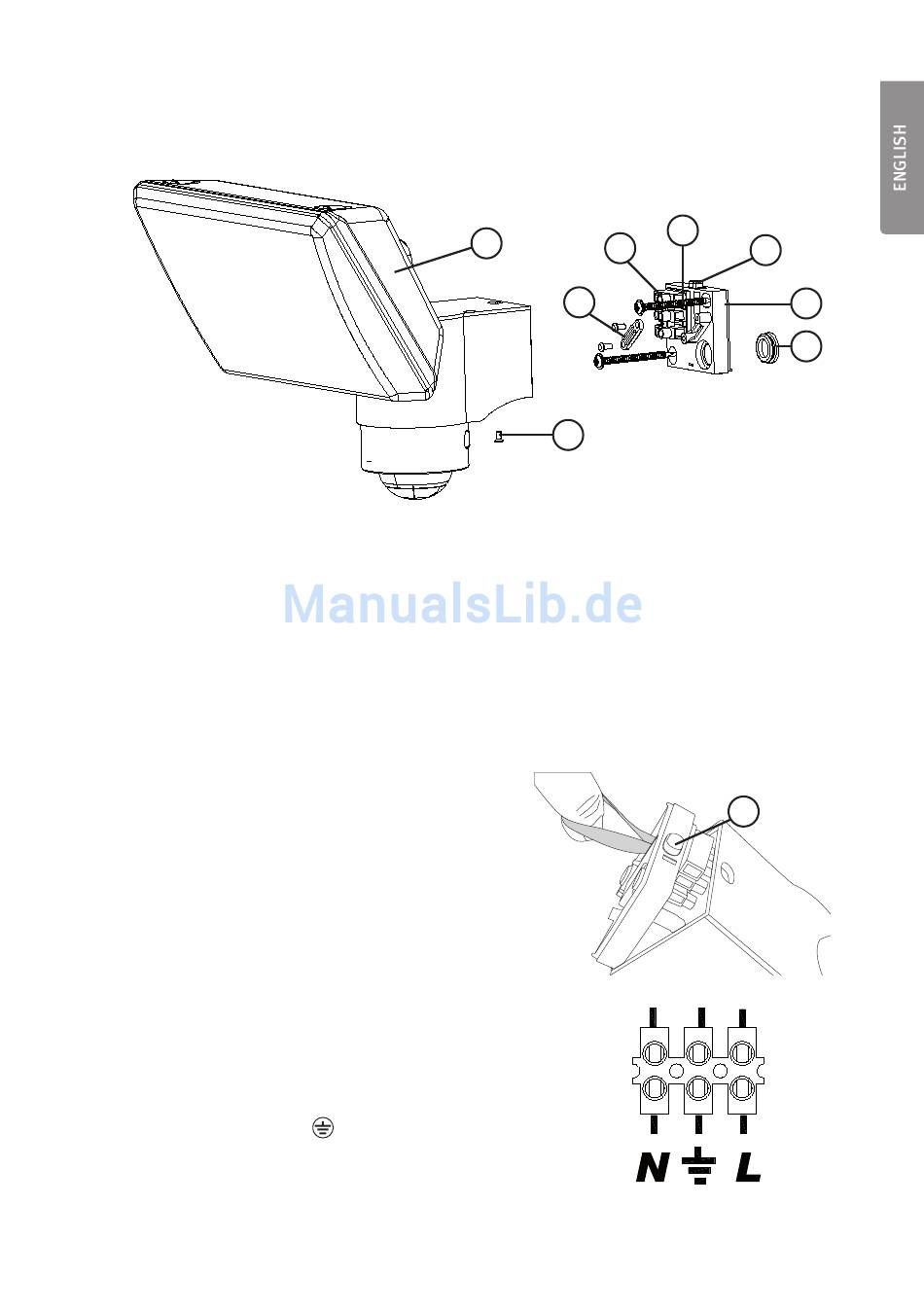

1. Lamp housing
2. Strain relief
3. Terminal block
4. Wall mounting screws
Important: Read the entire instruction manual before installation. The installation
should be carried out by a qualified electrician and conform to current regulations.
Warning: Make sure that the power is turned off and that the fuse is removed before
beginning any installation, change of light bulb or service.
1. Undo the locking screw.
2. Depress the release catch with a
screwdriver or similar, grasp the ring
and pull out the wall mount.
3. Mark out the position of the mounting
holes on the wall using the wall mount
as a template. Drill holes for the mounting
screws. Use suitable screws and wall
plugs if necessary. The floodlight must
be fixed securely.
Note: Mount the light horizontally.
4. Undo the cable strain relief, pass
the power cable (3G, 0.75) through
the rubber grommet. Connect
the three wires: L - Live (brown),
N - Neutral (blue) and
earth (green/yellow) to the terminal
block as marked in the junction box.
1
5. Wall mount release catch
6. Wall mount
7. Rubber grommet
8. Locking screw
- Electrical
3
4
3
2
8
5
6
7
