Preparation for mounting
• Pay attention to the "Safety instructions" section.
• The light must be protected with a 10/16A fuse at the sub-distribution. An earth leakage circuit
breaker must be installed before this.
• The light may only be installed when it is disconnected from the power supply. It is not
sufficient just to turn off the light switch!
• Isolate all poles of the mains cable from the mains supply by removing the electric circuit fuse
or switching off the automatic fuse. Then turn off the earth leakage circuit breaker. Protect the
product against unauthorised use (e.g. install a danger sign).
• Check that the mains cable is isolated from the mains, e.g. with an appropriate testing device.
• Only mount the light on a stable surface. Depending on the surface, you may need to use the
screws and/or dowels provided.
• The light head (2) can be swivelled (refer to "Technical data" for the swivel angle). Determine
the mounting direction before drilling the holes.

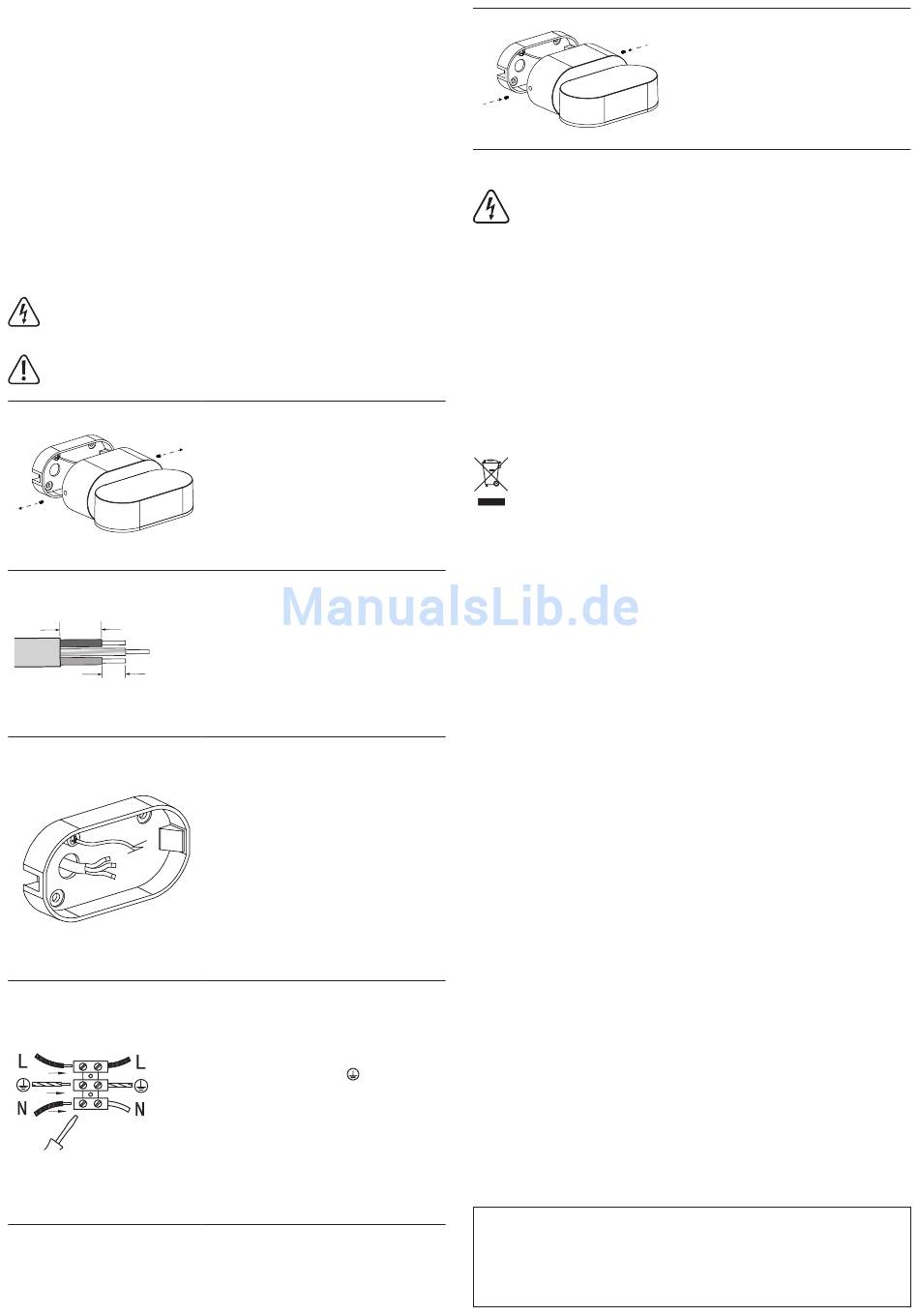

Mounting and connection
Read the information in the "Preparation for mounting" section.
Ensure that no existing cables or pipes (including water pipes) are damaged when
drilling mounting holes or securing screws.
The light may not be operated using a dimmer.
10 mm
6 mm
• Unscrew the two side grub screws (3) with the
included hex wrench.
• Carefully pull the wall bracket (1) out of the light.
• To ease installation, unscrew the terminal strip.
• Remove the outer insulation on the wires to a
maximum length of about 16 mm.
• Strip the insulation on each of the three wires
on the mains cable to a length of about 6 mm.
• The protective earth cable (yellow-green)
should be at least 6 mm longer so that it remains
the last cable in the terminal strip in the event
of a mishap.
• Carefully cut out a hole in the rubber gasket in
the wall bracket.
• Push the stripped mains cable through the
rubber gasket in the wall bracket from the wall
side.
• Use the holes in the wall bracket as a template
to mark the fixing points on the surface.
• Drill the mounting holes, if necessary.
• Secure the wall bracket with two screws and, if
necessary, dowels. Depending on the surface,
special screws and dowels are required.
• Connect the 3 wires on the mains cable to the
3-pole screw terminal (brown wire = L/phase,
blue wire = N/neutral wire, yellow/green wire =
PE/earth wire/earth symbol
).
• Also check the other screw connections on the
terminal strip and tighten them if necessary.
• Screw the terminal strip firmly back into place.
• If necessary, use a suitable sealing agent (such
as silicone) for sealing between the mains cable
and the rubber gasket from the inside.
Turn on power to the circuit and check to see if the product works.
If the LEDs do not light up, turn off power to the circuit immediately (turn off circuit
breaker and/or automatic fuse). Then check the connection to the power circuit.
Care and cleaning
• Turn off mains voltage to the light (or disconnect it from the mains) and let it cool down
sufficiently.
• Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these may
damage the casing or cause the product to malfunction.
• Use a dry, lint-free cloth to clean the product. To remove stubborn dirt, moisten the cloth
slightly with water.
• Never direct a garden hose or pressure washer etc. at the product.
• Do not wear metallic or conductive jewellery such as necklaces, bracelets or rings when
carrying out maintenance work on the product (including cleaning).
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste. Always dispose of the product according to the relevant statutory
regulations.
That way you fulfil your statutory obligations and contribute to the protection of the
environment!
Technical data
Operating voltage ...................................220 – 240 V/AC, 50 Hz
Power consumption ................................7.5 W
Protection class ......................................I
Protection type ........................................IP54
Mounting location ...................................Indoors/outdoors
Swivel angle ...........................................340°
Illuminant ................................................18 LEDs
Dimmable ...............................................no
Light colour .............................................3000 K (warm-white)
Luminous flux .........................................320 lm
Operating/storage conditions ..................-20 to +40 °C, 0 – 100 % RH
Dimensions (W x H x D) .........................110 x 55 x 102 mm
Weight ....................................................431 g
Distributed by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau
These operating instructions are published by CEI Conrad Electronic International (HK) Limited, 18th floor, Tower 2,
Nina Tower, no. 8 Yeung Uk Road, Tsuen Wan, New Territories, Hong Kong. All rights including translation reserved.
Reproduction by any method (e.g. photocopying, microfilming or capture in electronic data processing systems) requires
prior written approval from the editor. Reprinting, also in part, is prohibited. The operating instructions reflect the current
technical specifications at time of print.
© Copyright 2018 by CEI Conrad Electronic International (HK) Limited
*1646405_v1_0318_02_jh_m_en_(2)
• Place the lamp on the wall bracket.
• Fasten the lamp with the grub screws.
