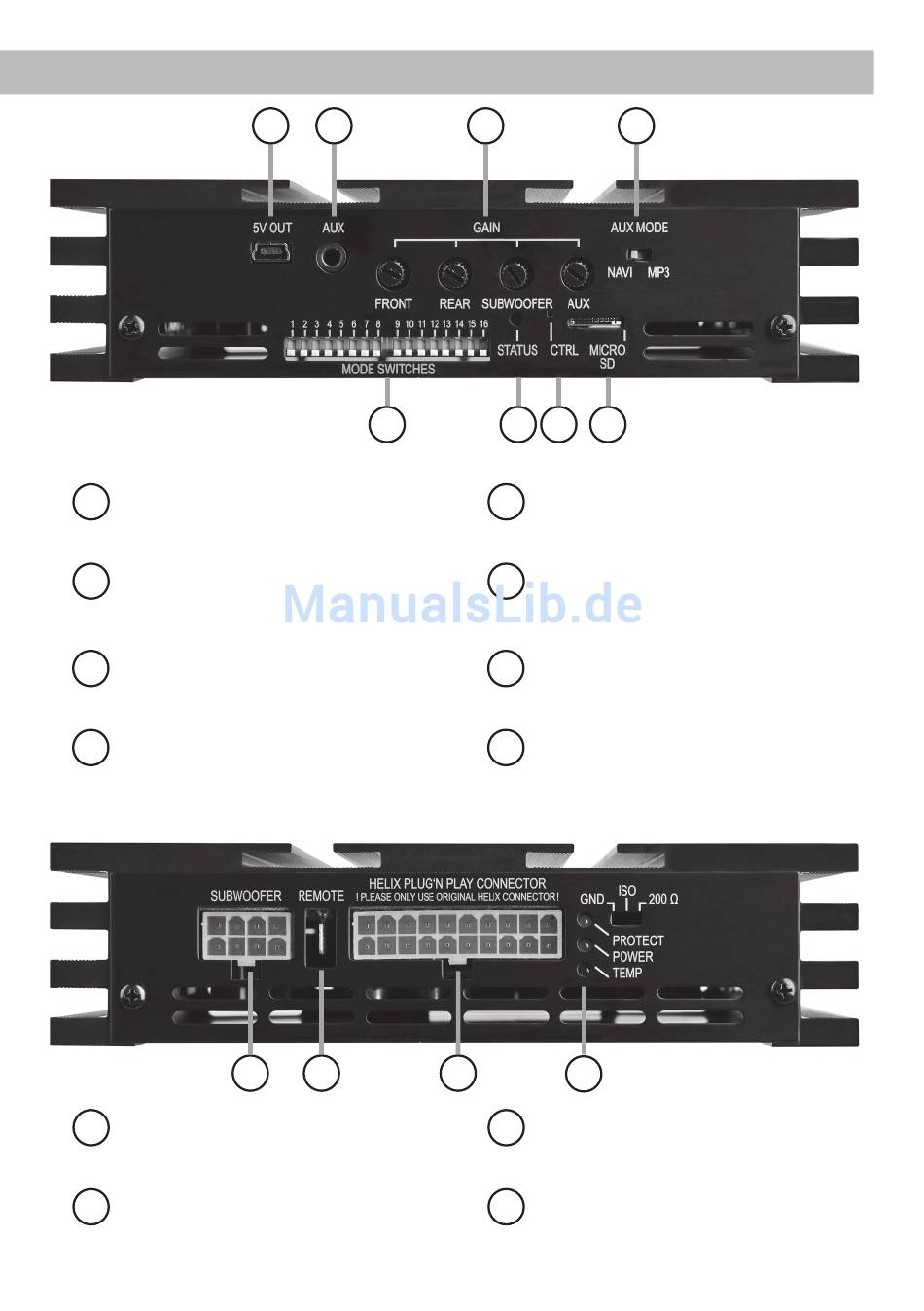

Connectors and Control Units
5V-Output
1
5V Mini-USB Charger for navigation
system or additional external device
AUX-Input
2
3,5mm jack plug for connecting e.g. navi-
gation system, handsfree set, iPod etc.
Gain
3
Level controls for the channels FL+FR
and RL+RR
AUX-Mode
4
Switch to choose the operating mode of
the AUX input
Subwoofer Output
9
To connect a Plug & Play subwoofer
Remote
10
The remote connector can be used as an
input or an output.
10
1 2
8
10
9
3
7 6 5
Micro-SD Card reader
5
Card reader to copy vehicle specifi c
setups to the PP20 DSP
Control Push-button
6
Push-button to change setups
Status LED
7
The LED shows the operation mode of
the DSP
Mode Switches
8
Switches to modify the DSP factory
settings
11
12
HELIX Plug & Play Connector
11
Do only use the original HELIX Cable for
connecting the PP20 DSP!
CPS - Colour Protection System
12
The LEDs show the operation mode of
the amplifi er.
