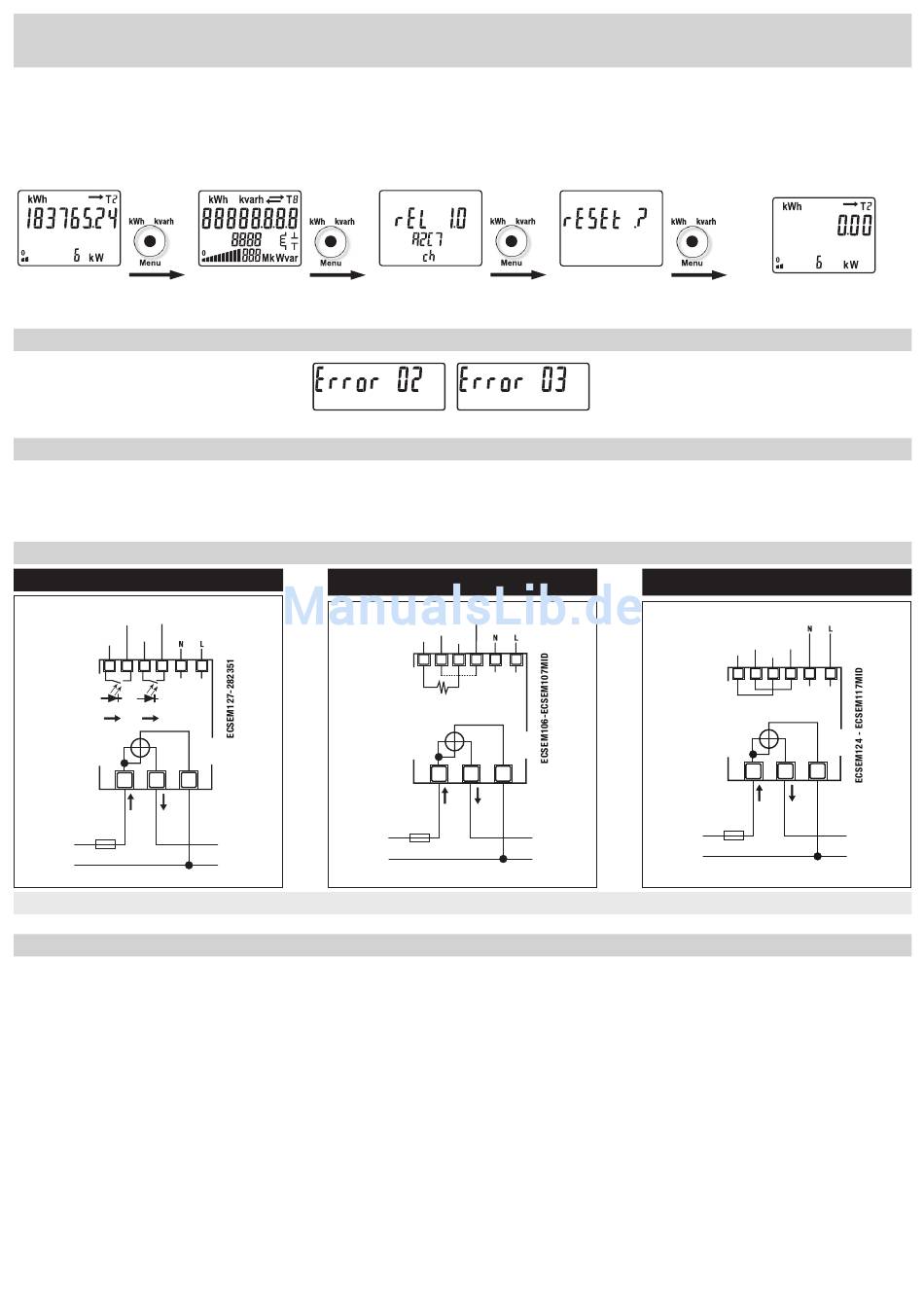

In any page of the Main Menu by kept push for 10 sec. the "Menu key" the diagnostic page of the display appears. If the "Menu key" is held down for other 4 sec. the display shows
information about the firmware release and the firmware checksum. If the "Menu key" is held down for other 6 sec. is possible to enter in the zeroing menu of the energy counters.
(The zeroing menu is available only in the meter not MID certified.) When the display shows "rESET" the key must be released. To do the reset press it again, afterwards it will go
back to the default visualization with all registers reset. After 4 sec. from the button release if the "Command reset" is not done, it will go back to the default visualization without the
reset.
Main Menu:
> 10 sec.
Error Condition
When the display show these messages, the meters has
got a malfunction and must be replaced..
It should not be necessary to recalibrate device during its lifetime as it is an electronic meter with no moving parts with electronics and voltage and current sensors that do not naturally degrade or
change with time under specified environmental conditions. If a degradation in the performance is observed the device has probably been partly damaged and should be sent for repair or
exchanged. If the meter is dirty and needs to be cleaned, use lightly moistened tissue with a water based mild detergent. Make sure no liquid goes into the meter as this could damage the meter.
S0
S0
~/+
S0
~/-
~/-
230 VAC
~/+
2
1
3
4
5
Tariff
kvarh
kWh
L 1
L 1
N
125A
L1
N
230 VAC
S0
1-2:
Pulse output of reactive energy imported,
isolated by a OptoMOS Relay.
3-4:
Pulse output of active energy imported,
isolated by a OptoMOS Relay
5-6:
Tariff signal, isolated by a Opto Coupler.
When there is a voltage of 230 VAC connected the
device store energies on the Tariff 2 registers,
otherwise on the Tariff 1 registers.
L1↑ ↑ :
Input for the phase conductor.
L1↓ ↓ :
Output for the phase conductor.
N:
Measuring input of neutral.
Diagnostic Page of the Display
> 4 sec.
6
A fuse of 125 A is recommended for the line protection.
Modbus
1:
Modbus network. For the termination of the
For the termination of the
network short this terminal with terminal 2.
2:
Modbus network. Data -
3:
Modbus network. Data +
4:
Modbus network. Shield
5-6:
Tariff signal, isolated by a Opto Coupler.
When there is a voltage of 230 VAC connected the
device store energies on the Tariff 2 registers,
otherwise on the Tariff 1 registers.
L1↑ ↑ :
Input for the phase conductor.
L1↓ ↓ :
Output for the phase conductor.
N:
Measuring input of neutral.
Firmware Information
Energy Reset
> 6 sec.
Diagnostic Message
Service and Maintenance
Wiring diagram
Modbus
Shield
230 VAC
D-
RT
D+
1
2
3
4
5
6
Tariff
120 Ω
Modbus RTU
L 1
L 1
N
125A
L1
N
230 VAC
Terminal Description
- 4 / 12 -
"ECS1-125"
Main Menu:
M-Bus
230 VAC
out
in
M2
M2
M1
M1
1
2
3
4
5
M-Bus
L 1
L 1
125A
L1
N
230 VAC
M-Bus
1-3:
M-Bus network. These terminals are internally
connected.
2-4:
M-Bus network. These terminals are internally
connected.
5-6:
Tariff signal, isolated by a Opto Coupler.
When there is a voltage of 230 VAC connected the
device store energies on the Tariff 2 registers,
otherwise on the Tariff 1 registers.
L1↑ ↑ :
Input for the phase conductor.
L1↓ ↓ :
Output for the phase conductor.
N:
Measuring input of neutral.
