Page 1:
In this page, the value of the currently growing Active Energy is represented
(or the last one that has grown). The energy may be Consumed or
Generated, with Tariff T1 or T2, depending on the current Energy flowing
Page 2:
By pushing any key the back light turns on
Page 3:
The next 8 "Menu key" presses allow the display of the 8 energy counters.
The counters are:
- Active import energy on tariff 1 - Active export energy on tariff 1
- Reactive import energy on tariff 1 - Reactive export energy on tariff 1
- Active import energy on tariff 2 - Active export energy on tariff 2
- Reactive import energy on tariff 2 - Reactive export energy on tariff 2
When is displayed an energy counter corresponding to the running tariff,
on the bottom row the power is displayed
Page 4:
This page changes depending on
the model
• ON time page (PULSE LEn): In
Page 4
this page the time on in ms of the
S0 pulse appears. This value can
be altered, see the section
Pulse Output.
• Model equipped with M-Bus or
Modbus: In this page the Modbus
address or the M-Bus primary
address appears. This value can
be altered, see the section
Communication Address.
Page 5:
This page changes depending on
the model
• Pulse quantity page (PULSES):
In this page the number of pulses
per kWh, of the S0 output,
appears. This value can be altered,
see the section
Pulse Output
• Model equipped with M-Bus or
Modbus: In this page the
communication baud rate appears.
This value can be altered, see the
section Communication Baudrate.
Page 6-7:
These pages are available only for the model equipped
with M-Bus. In these pages the Secondary address
appears. These address can range from 1 to 99999999,
hence requires 2 pages (the 1st for the 4 highest digit,
the 2nd for 4 lowest digit). In this example, its value is
68010643. See the section Communication Address.

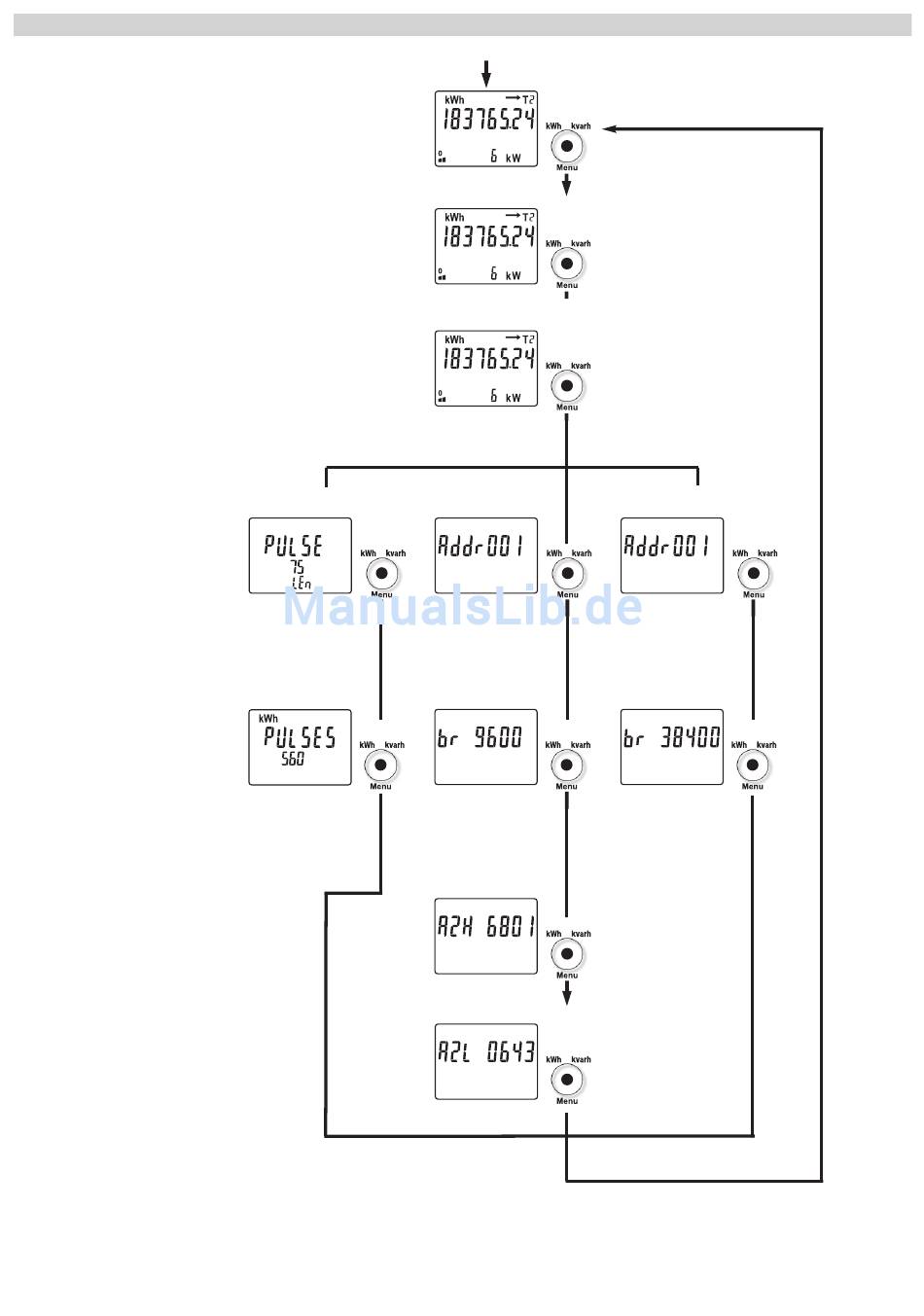

Model S0
Page 5
Main Menu
Device Switch ON
Page 1
Page 2
Page 3
Model M-Bus
Page 6
Page 7
- 2 / 12 -
"ECS1-125 Energy meters"
Model Modbus
Whichever the page on the
display, if no key is pushed for at least
20 sec., the main page appears again.
