• Touch the high / low temperature independently, then adjust using
accordingly
• Touch the temperature button again to lock in your settings
(I) Identifies the status of wireless on the ROSCOPE i2000
(J) Battery indicator / level of charge
5.2

Using the Thermal Imager with the ROSCOPE 1000

Wireless not available on ROSCOPE 1000!

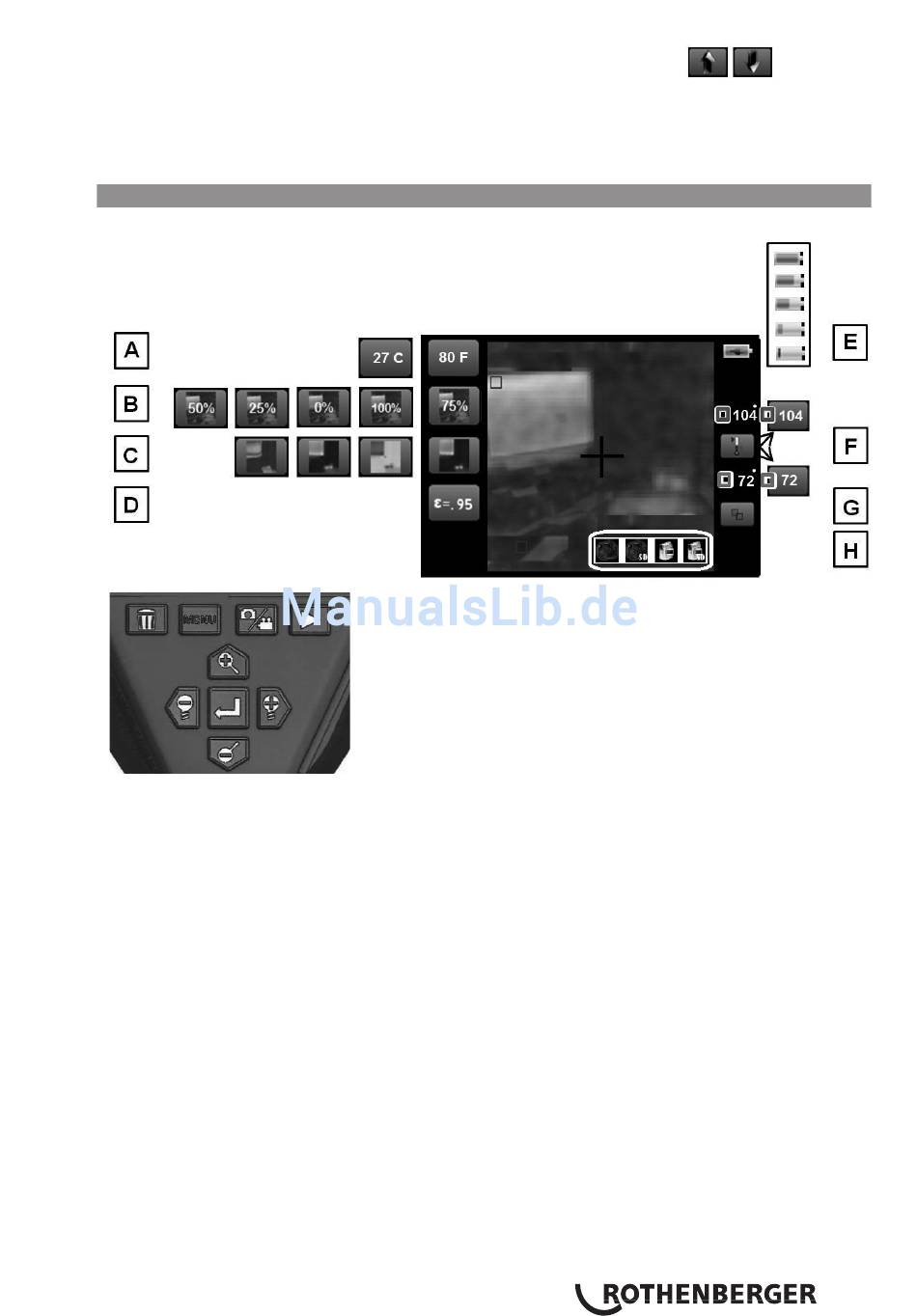

Up / down arrows navigate through menu options on LCD - Left/ Right arrows change settings.
(A) Left / Right arrows to change between Celsius and Fahrenheit
(Celsius initiates as default in settings)
(B) Left / Right arrows select level of transparency (opacity)
• 0% (thermal overlay)
• 25% (thermal overlay)
• 50% (thermal overlay)
• 75% (thermal overlay)
• 100% (thermal overlay)
(C) Left / Right arrows to select color mode
• Iron Bow (default)
• Black & White (gray scale)
• Hot Metal
• Rainbow
(D) Left / Right arrows to change emissivity setting in +/- 0.01 increments
• Hold button to scroll (NOTE – Quick Picks only available of i2000)
• See Emissivity Table on page 24 - 25
ROSCOPE 1000 Button-Command
ENGLISH
arrows
23
