The Wi4U LTE router is delivered with a cable set for connection to the on-board electro-
nics (12V or 24V). Firstly connect the 32-pole plug to the matching socket on the Wi4U
LTE router. Then connect the cable to the corresponding connectors on the vehicle.
Please observe the following connections during this process:
Yellow cable
Red cable
Black cable
Mounting the Wi4U LTE router
The Wi4U LTE router can either be stuck in place in the glove compartment using the
supplied Velcro strips or screwed in place using the supplied screws through mounting
holes in the plastic housing. When mounting using the Velcro strips, please ensure that
the surface is free from grease and apply the Velcro strips with high pressure.
!
The Wi4U pro must not be installed behind metal panels because otherwise the perfor-
mance of the integrated WLAN antennas will be severely restricted.
Wi4U | Quick Start Guide

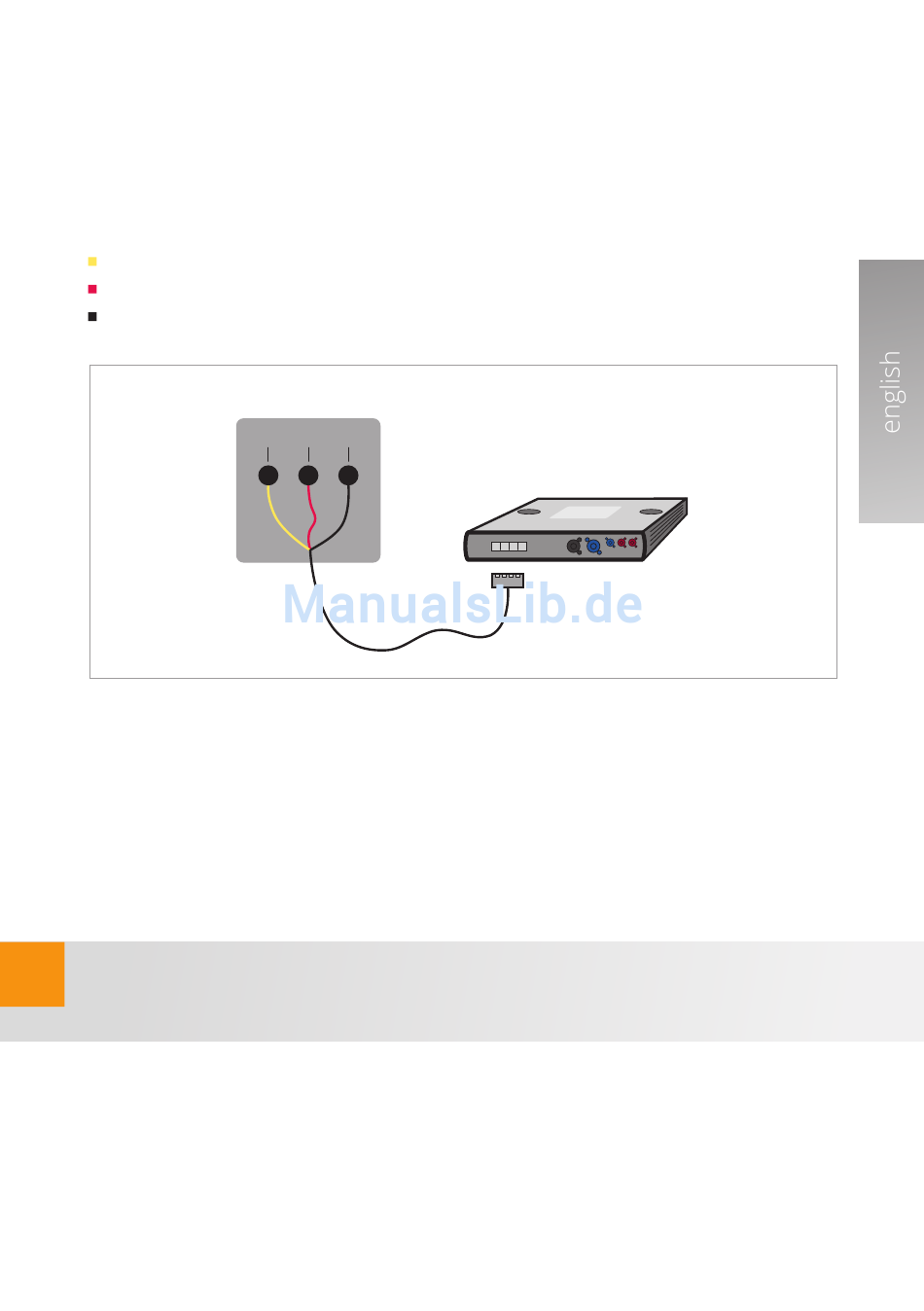

to terminal 15 (ignition on/off)
to terminal 30 (12V or 24V vehicle battery)
to ground
On-board electronics
KL 15 KL 30 ground
