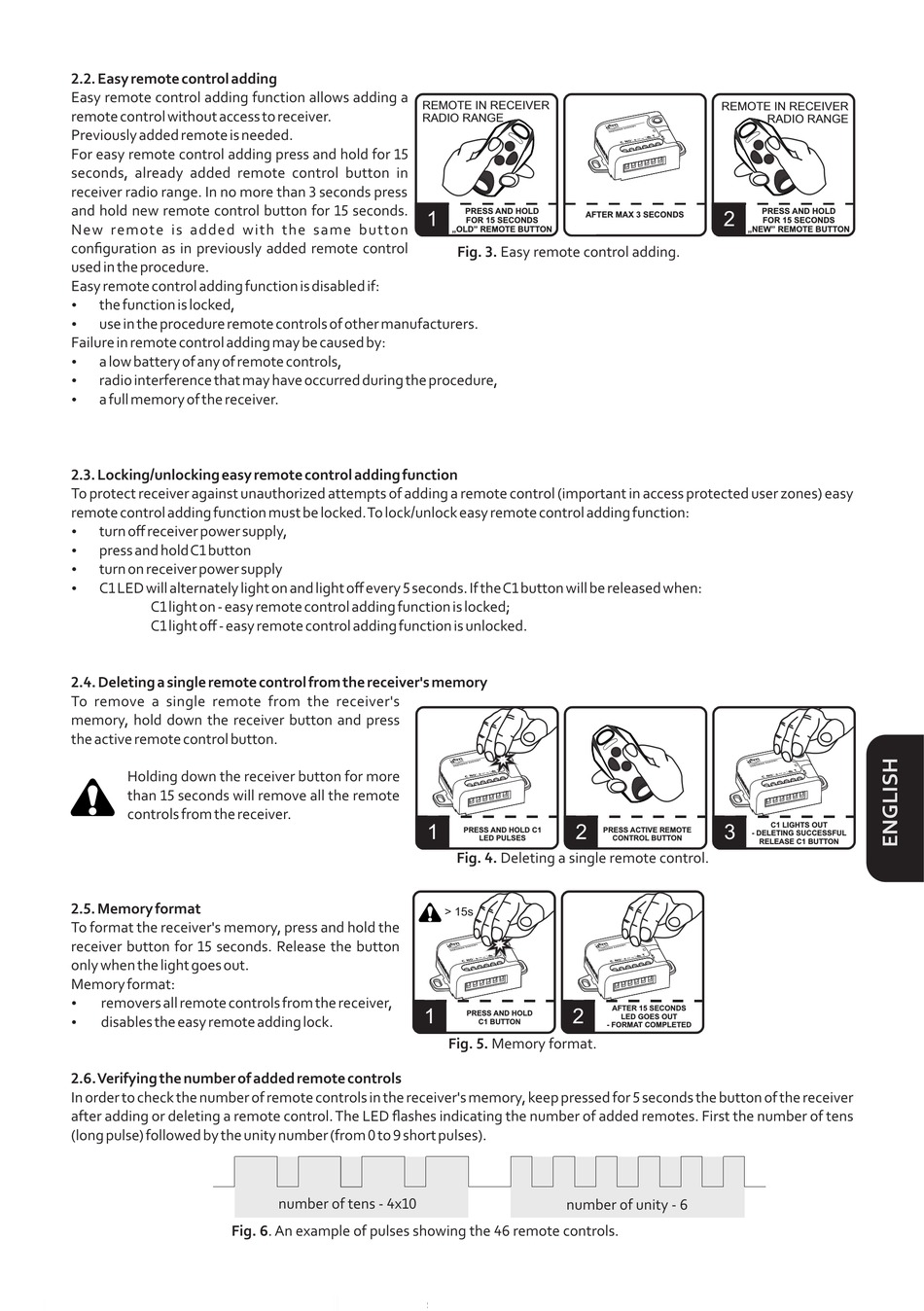

2.2. Easy remote control adding
Easy remote control adding function allows adding a
remote control without access to receiver.
Previously added remote is needed.
For easy remote control adding press and hold for 15
seconds, already added remote control button in
receiver radio range. In no more than 3 seconds press
and hold new remote control button for 15 seconds.
New remote is added with the same button
configuration as in previously added remote control
used in the procedure.
Easy remote control adding function is disabled if:
the function is locked,
ź
use in the procedure remote controls of other manufacturers.
ź
Failure in remote control adding may be caused by:
a low battery of any of remote controls,
ź
radio interference that may have occurred during the procedure,
ź
a full memory of the receiver.
ź
2.3. Locking/unlocking easy remote control adding function
To protect receiver against unauthorized attempts of adding a remote control (important in access protected user zones) easy
remote control adding function must be locked. To lock/unlock easy remote control adding function:
turn off receiver power supply,
ź
press and hold C1 button
ź
turn on receiver power supply
ź
C1 LED will alternately light on and light off every 5 seconds. If the C1 button will be released when:
ź
C1 light on - easy remote control adding function is locked;
C1 light off - easy remote control adding function is unlocked.
2.4. Deleting a single remote control from the receiver's memory
To remove a single remote from the receiver's
memory, hold down the receiver button and press
the active remote control button.
Holding down the receiver button for more
than 15 seconds will remove all the remote
controls from the receiver.
2.5. Memory format
To format the receiver's memory, press and hold the
receiver button for 15 seconds. Release the button
only when the light goes out.
Memory format:
removers all remote controls from the receiver,
ź
disables the easy remote adding lock.
ź
2.6. Verifying the number of added remote controls
In order to check the number of remote controls in the receiver's memory, keep pressed for 5 seconds the button of the receiver
after adding or deleting a remote control. The LED flashes indicating the number of added remotes. First the number of tens
(long pulse) followed by the unity number (from 0 to 9 short pulses).
Fig. 6. An example of pulses showing the 46 remote controls.
REMOTE IN RECEIVER
RADIO RANGE
1
„OLD" REMOTE BUTTON
1
> 15s
1
Fig. 5. Memory format.
number of tens - 4x10
PRESS AND HOLD
AFTER MAX 3 SECONDS
FOR 15 SECONDS
Fig. 3. Easy remote control adding.
2
PRESS AND HOLD C1 PRESS ACTIVE REMOTE
LED PULSES CONTROL BUTTON
Fig. 4. Deleting a single remote control.
AFTER 15 SECONDS
2
PRESS AND HOLD
LED GOES OUT
C1 BUTTON
- FORMAT COMPLETED
number of unity - 6
REMOTE IN RECEIVER
RADIO RANGE
PRESS AND HOLD
2
FOR 15 SECONDS
„NEW" REMOTE BUTTON
PL
C1 LIGHTS OUT
3
- DELETING SUCCESSFUL
RELEASE C1 BUTTON
