FingerTec Q2i Installationsanleitung Seite 3

Appendix I

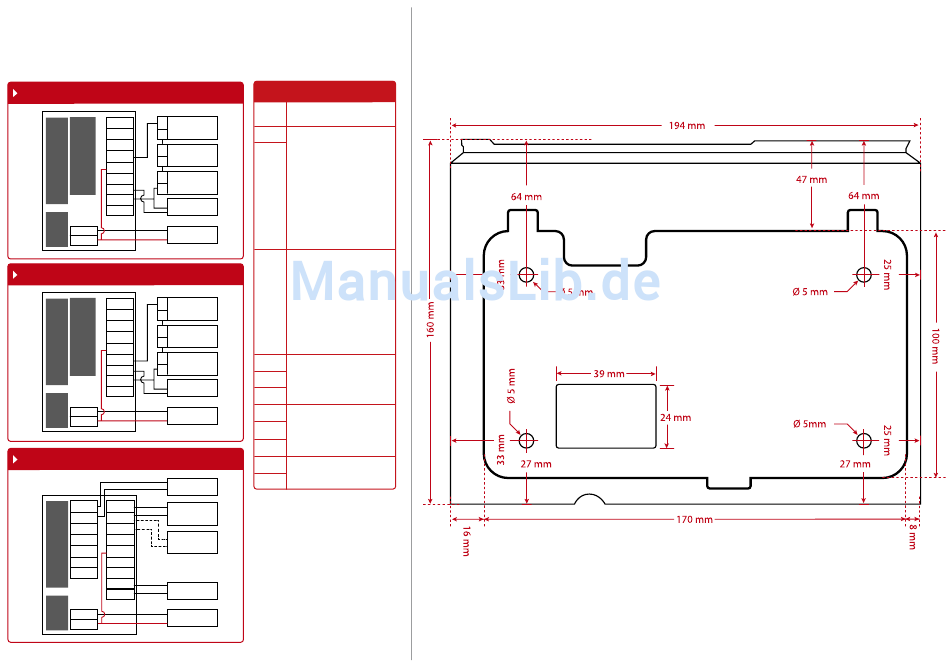

Power Supply & Door Lock System Wiring Diagrams
Diagram 1 • Normally Close (NC)
+
NC2
EMLock (NC)
_
COM2
NO2
2
Emergency
NC1
Break Glass (NC)
3
COM1
NO1 A
Overwrite
Keyswithch (NC)
BUT C
GND
Push Release
SEN
Button
GND
DC12V 3A
Power Supply
+12V
Diagram 2 • Normally Open (NO)
+
NC2
EMLock (NO)
_
COM2
NO2
1
Emergency
NC1
Break Glass (NO)
3
COM1
NO1 B
Overwrite
Keyswithch (NO)
BUT D
GND
Push Release
SEN Button
GND
DC12V 3A
Power Supply
+12V
Diagram 3 • Other Accessories
*Door Sensor, Alam, Doorbell
Doorbell
BEEL+ NC2
Alarm Device
BEEL- COM2 (NC) dry contact
BEEP NO2
Alarm Device
GLED NC1
(NO) dry contact
RLED COM1
INWD0 NO1
INWD1 BUT
GND
Door Sensor
SEN
GND
DC12V 3A
Power Supply
+12V
Use either Type NO or Type NC alarm device.
Appendix II
Terminal Dimensions and Measurements
Door Lock Connectors
WIRING USAGE
PORT
NO1
Dry Contact
(independ-ent power supply for
NC1
door lock)
• NO type door lock (NO1-COM)
• NC type door lock (NC1-COM)
Power Contact
(using power from terminal to
power on door lock)
• NO type door lock (NO1-GND)
• NC type door lock (NC1-GND)
Dry Contact
COM1
(independ-ent power supply for
door lock)
• NO type door lock (NO1-COM)
• NC type door lock (NC1-COM)
Power Contact
(using power from terminal to
power on door lock)
• COM1 - +12V
NO2
Alarm System
NO type – NO2-COM2
COM2
NC type – NC2-COM2
NC2
SEN
Door Sensor (SEN-GND)
GND
Release button (BUT-GND)
BUT
Bell+
Door Bell
Bell-
The terminal will trigger the
alarm output (NO or NC) for the
follow-ing situations:
• Door forced open (A door
sen-sor must first be installed)
• Door open time out (A door
sen-sor must first be installed)
• Terminal has been illegally
dismantled
Front View of Back Plate
