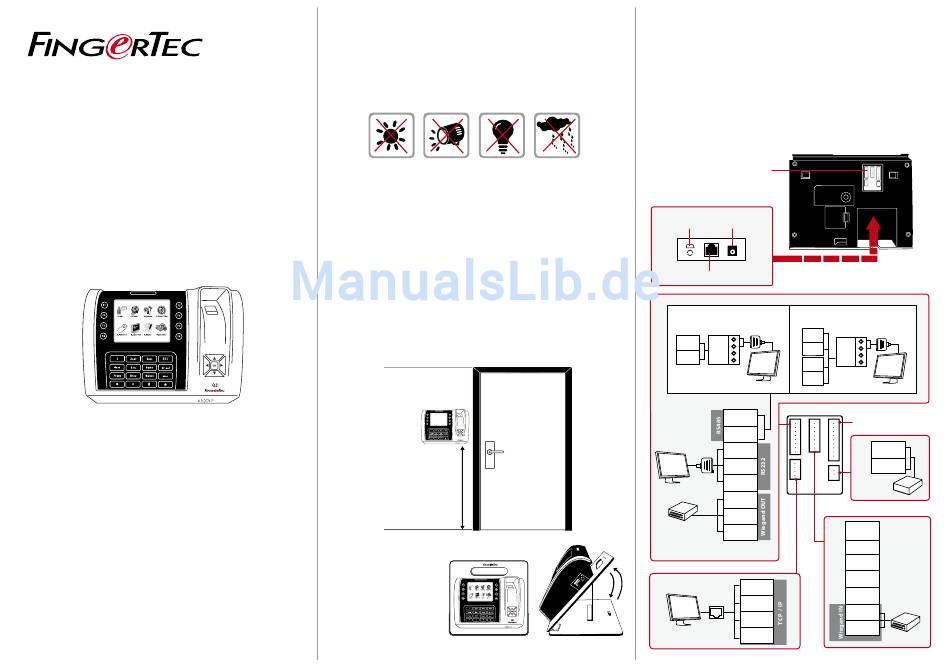

FingerTec Q2i Installationsanleitung

Installation Guide
Q2i
Fingerprint Color Multimedia for
Time Attendance & Door Access Control System
© 2015 Timetec Computing Sdn Bhd. All rights reserved.• 022015
Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations that has contact with a
strong light source (e.g direct sunlight, spotlight, fluorescent light,
etc)
•
Avoid installing the terminals in locations prone to high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting Terminals
A. MOUNT ON WALL
•
After measuring the height accordingly and make relevant marking
on the wall, drill the screws into the wall to secure the back plate.
•
Attach the terminal to the back plate and tighten the screws. Refer to
Appendix II for dimensions and measurements of installation.
4 feet / 1.2 meter
(recommended)
B. FLEXI-KIT
FingerTec offers flexi-kit
for all its time attendance
models. Attach the termi-
nal on the flexi-kit for con-
venience.
Step 3
Wiring for Power Supply
There are two ways to connect to the power.
1. Use the power adapter provided in the package and insert the
power adapter to the port marked A in the diagram.
2. Use power cables (black and red) to connect to a linear power
supply with specifications of 12VDC 3A. (Marked B)
POWER CABLE PORT (B)
USB PORT POWER PORT
......
........
TCP/IP PORT
1. RS485 Single Connection 2. RS485 Network Connection
485B
485B
RX+
485A
485A RX-
485B
RS232/RS485
Data Converter 485A
485B
485A
GND
TXD
RS232
RXD
cable
GND
WD1
3rd party controller
with 26 bits WD2
wiegand input
RJ-6
RJ-3
RJ-2
TCP/IP
RJ-1
RX+
RX-
RS232/RS485
Data Converter
Door Lock connector.
Refer to Appendix I
GND
+12V
DC12V 3A
Power Supply
* Use either power input
BEL+
BEL-
BEEP
GLED
3rd party
controller with
RLED
26 bit swiegand
output
INWD0
INWD1
