Xbox 360 - Hdmi - Tritton Trigger Handbuch

Ensure both HDMI-compliant TV/Monitor and Xbox 360 gaming system are powered OFF.
Note: The Analog Audio Adapter (hereafter AAA) will work with ANY HDMI-equipped Xbox 360.
Insert AAA into the AV port on the Xbox 360.
[ ]
1
Connect the USB Cable to a USB port on the Xbox 360.
[ ]
2
Connect the RCA connection cable to the AAA.
[ ]
3
[ ] Be sure to connect the Headset Connector Cable in the proper order:
4
1 - Connect Headset Connector Cable to the Headset Connector Port on the in-line controller.
2 - Connect puck side of Headset Connector Cable into Xbox 360-compatible controller.
Troubleshooting:
I don't have any audio when connecting in analog mode.
•
There is no setting in the Xbox that can turn off Analog output, so it is always on.
Check the following:
1.
Ensure the Xbox 360 is powered ON, and that audio is playing. When on the dashboard, and when not navigating, only silence
is emitted on all audio channels.
2.
Ensure all analog connections are secure.
3.
Ensure that your audio device is powered ON, and the volume levels are set.

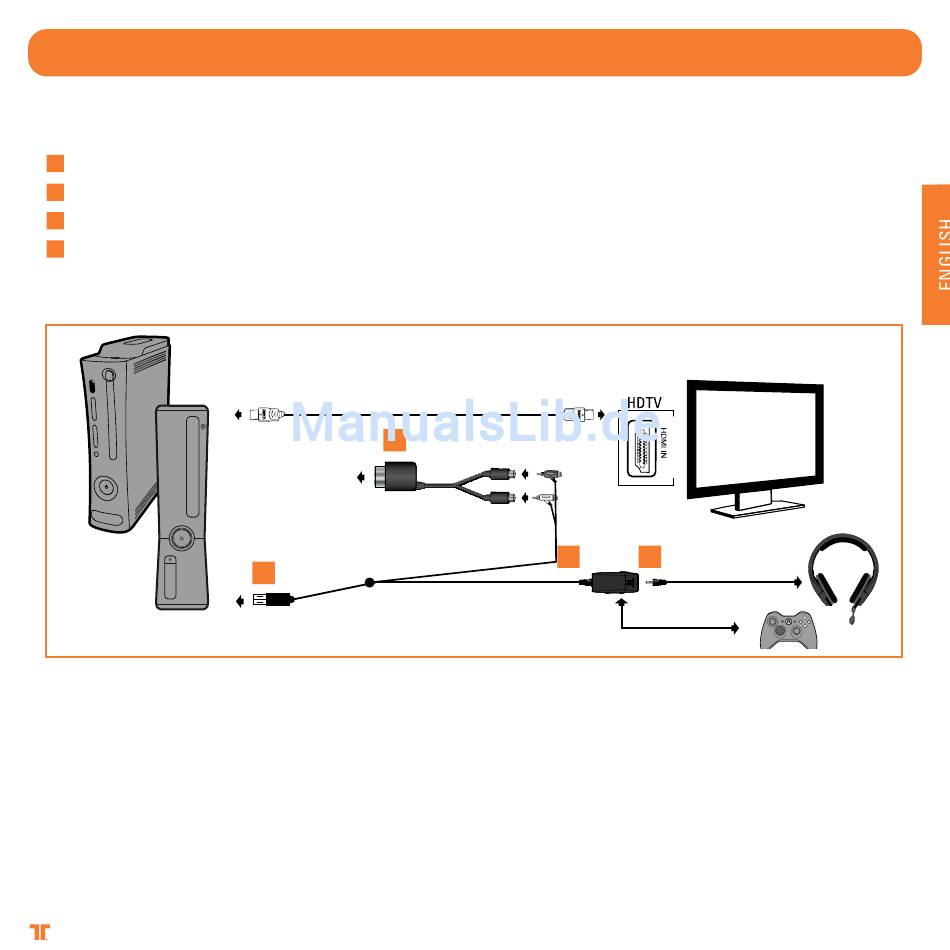

XboX 360 - HDmI

*HDMI cable not included
[ ]
1
[ ]
2
[ ] [ ]
3
[7]
4
