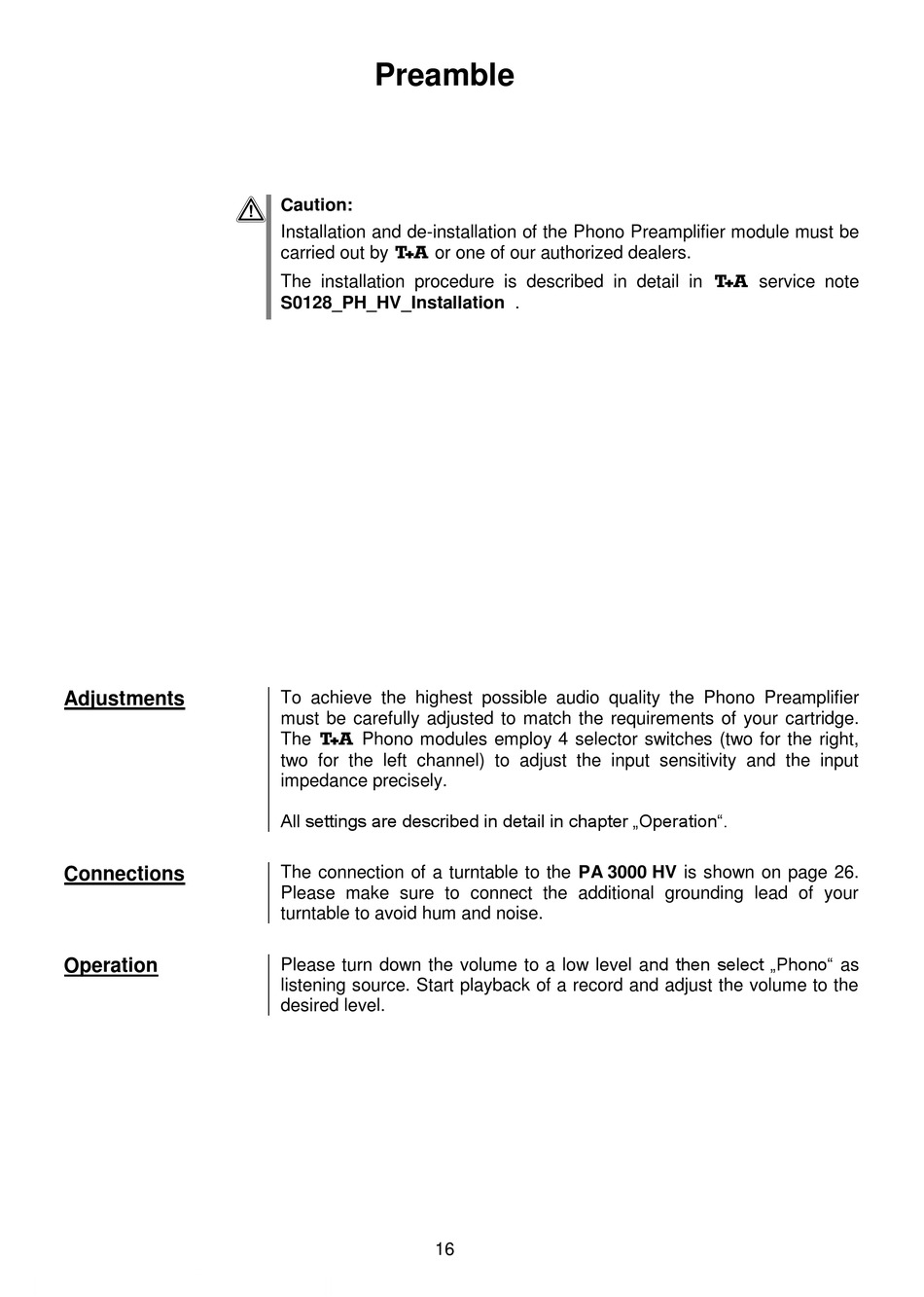

Preamble


Caution:
Installation and de-installation of the Phono Preamplifier module must be
carried out by  or one of our authorized dealers.
The installation procedure is described in detail in  service note
S0128_PH_HV_Installation .
To achieve the highest possible audio quality the Phono Preamplifier
must be carefully adjusted to match the requirements of your cartridge.
The  Phono modules employ 4 selector switches (two for the right,
two for the left channel) to adjust the input sensitivity and the input
impedance precisely.
All settings are described in detail in chapter „Operation".
The connection of a turntable to the PA 3000 HV is shown on page 26.
Please make sure to connect the additional grounding lead of your
turntable to avoid hum and noise.
Please turn down the volume to a low level and then select „Phono" as
listening source. Start playback of a record and adjust the volume to the
desired level.
16
