4 Scope of Delivery:

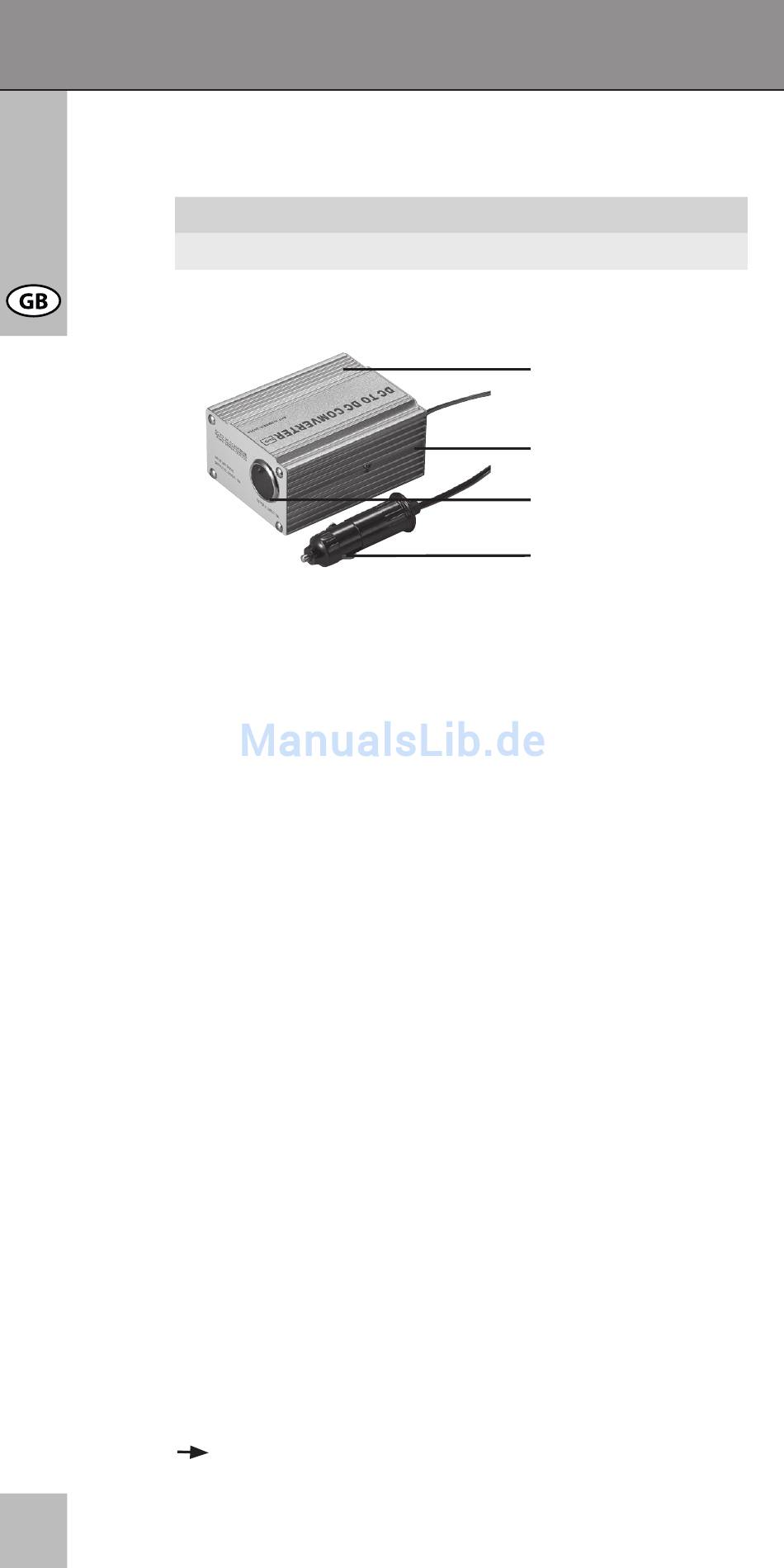

5 Graphic Diagram:

6 Operation:
The plug of the unit is 18-30 V DC voltage input terminal,
the central contact is the positive terminal and the side
ones are the negative terminals.
The socket of the unit is 12.5 V DC output terminal. The
central contact inside is the positive output terminal and
the side ones are the negative terminals..
1. Check the polarity of the input voltage and the power
consumption of your device to be driven. If the unit is
overloaded, the fuse can burn off.
2. Place the voltage converter to a fire resistant and
horizontal surface.
3.. Insert the input DC plug of your voltage converter into a
18-30 V DC socket. Now a voltage of 12.5 V DC is
available on the output socket of the voltage converter.
4. Insert the 12 V DC mains plug of your car accessory
into the DC socket of the voltage converter. Attend to the
maximum output power of 87.5 W to avoid damages to
cables or unit.
5. If there's no output voltage despite right wiring, check the
input voltage for being a within the mentioned range.
Attend to the fact, that heat and coldness generating devices
perhaps have a too high power consumption for the voltage
converter.
Only trained professionals are allowed
to change the fuse.
- 1 x voltage converter
- 1 x user's manual
housing
cooling fins
DC output socket
12.5 V
DC input plug 18-30 V
