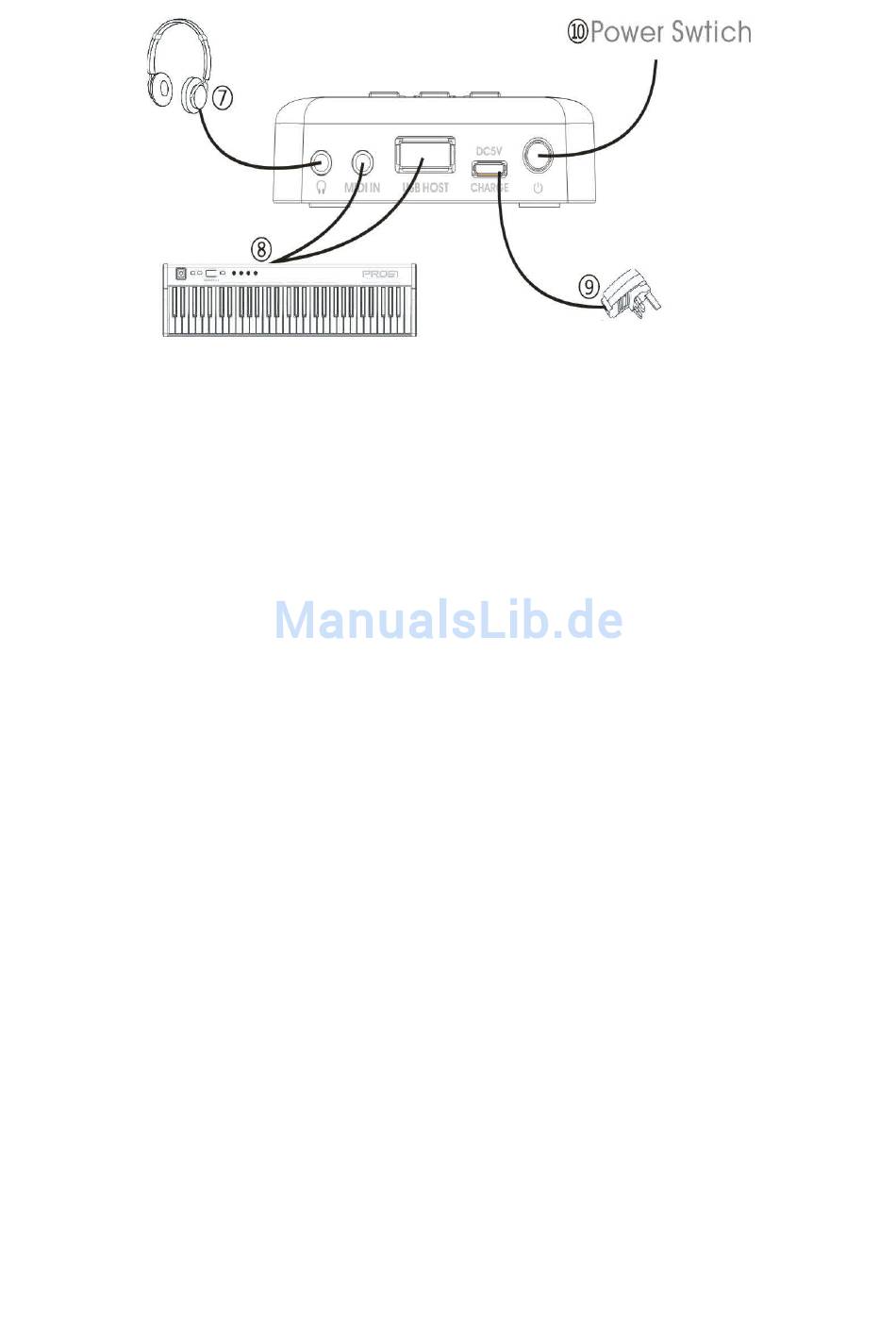

⑦
Headphone/output interface: Connect to headphones or other output device.
⑧
MIDI IN/USB IN connector: Connect MIDI OUT or MIDI devices with USB output interface
functions. Note: Use the MIDI IN connector to connect the device, you need an external power
supply keyboard.
⑨
Power/Charging Interface: Micro-USB interface that provides power and charging.
⑩
Power switch: Equipment switch, press 5 seconds on or off; in the boot state, click to open the
key, the display will show the remaining power value, three seconds after the absence of any
operation, it will automatically switch back to the previous interface.
Operating Instructions
The Pianobox mini sound effects can be adjusted through its above silicone button and knob. Press
the function you want to adjust, button lights up, the display shows the current value of the
function.
Turn the knob to adjust, adjust the effect you want.
Note: The default boot PROGRAM function, that tone adjustment function, PROGRAM button
lights up.
MIDI device can be adjusted Pianobox mini sound effects.
The Pianobox connection with your MIDI device, the device can be adjusted via MIDI sound
effects, specific operational procedures, please check that you are using the product manual.When
your device is adjusted to the Program, Volume and Reverb function, value and function keys light
display Pianobox mini is also displayed on the corresponding changes.
Two Pianobox mini MIDI devices connected simultaneously playing method of operation.
The two MIDI devices are connected to the Pianobox mini cable with USB and MIDI. (MIDI
1.
device MIDI cable to connect the need for additional power supply).
MIDI device will be transferred to two different channels (MIDI CHANNEL) on. (MIDI device
2.
itself only through selected channels).
A device by pressing random keys, and then through Pianobox mini adjusting the tone that
3.
you want to use and effects; same way, adjusting the tone and effect of another MIDI device, so you
can play simultaneously achieve two MIDI devices. (Tone sounds and effects can be adjusted via
MIDI device itself features).
NOTE: When connecting two MIDI devices, data on the Pianobox mini data display is your last operation. When
adjusting the tone and effect, make sure the current Pianobox mini control which MIDI devices.
* If anything update, please received in kind prevail, latest information and please pay
attention to the official website.
9
