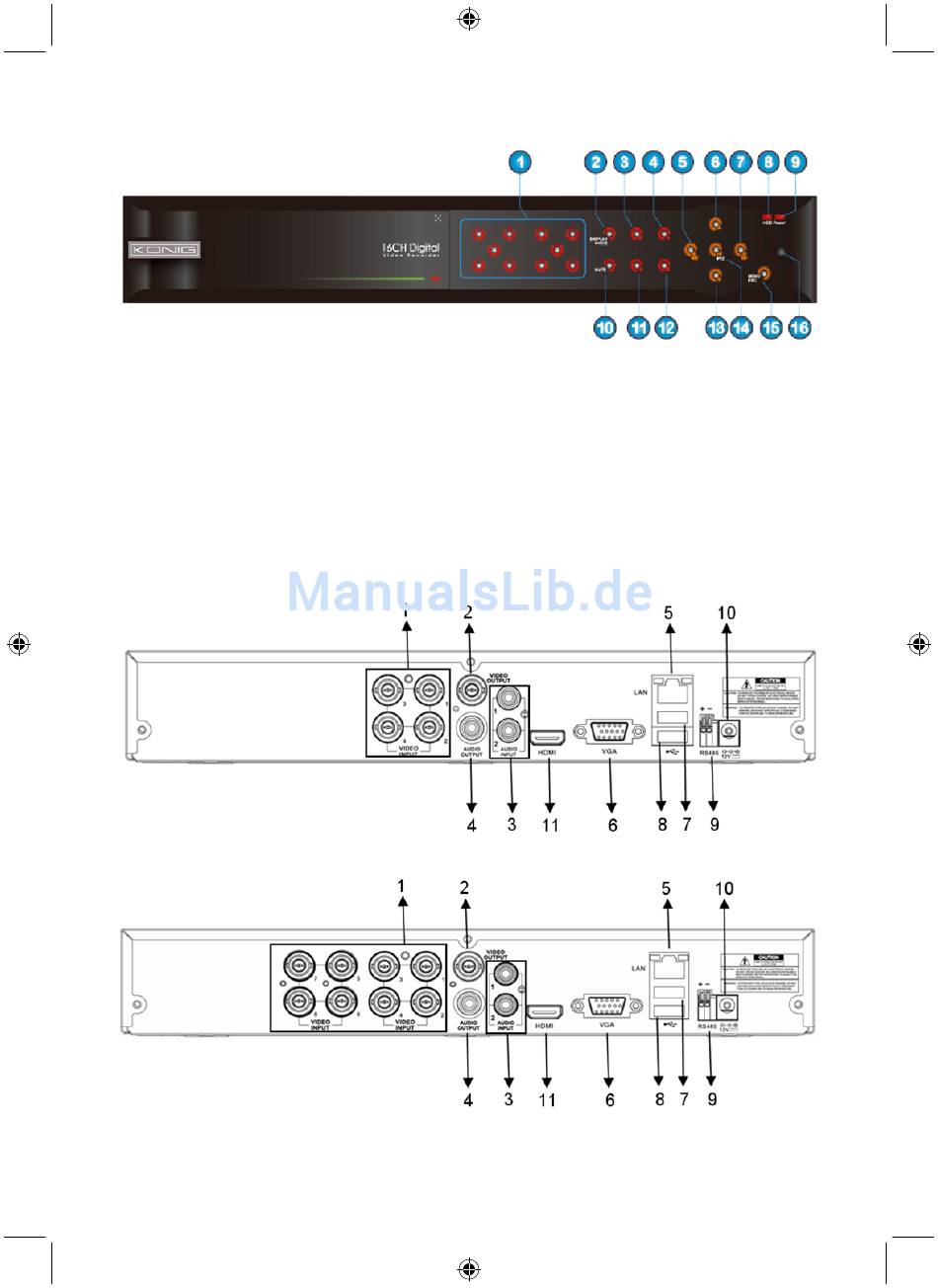

16-CH DVR Front Panel:

Front Panel

1. Channel Selection & numeric input
2. Preview (Multiple CH display)
3. Pause / play frame by frame
4. Convert to play status
5. Move left / RWD
6. Move up
7. Move right / FWD
8. HDD indicator
4-CH DVR Rear Panel:
8-CH DVR Rear Panel:
9. Power indicator
10. Audio control (Mute key)
11. Manual recording
12. Stop playing recording
13. Move down
14. Enter PTZ control, select [Enter] / [Edit] operation
15. Enter into main menu / Exit
16. IR Receiver
