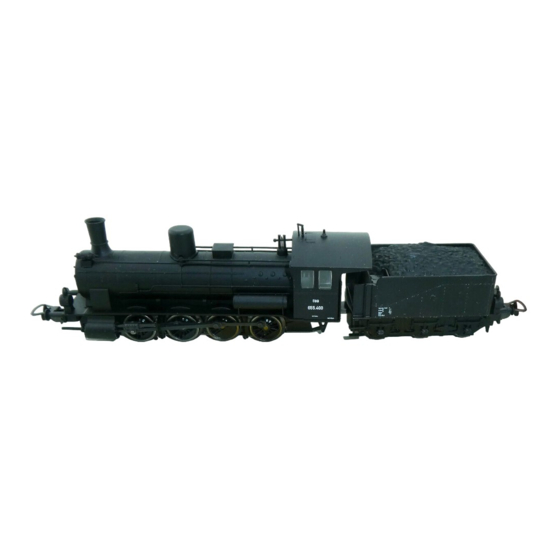

Bedienungsanleitung Dampflok BR 55 / G7.1
Instructions for use steam loco · Manuel d'utilisation pour locomotive
Gebruiksaanwijzing locomotief · Instrukcja obsługi lokomotywy · Инструкция по
эксплуатации Паровоз · Návod k použití lokomotivy · A gözmozdonyok használata
3
4
4
1
2
5
langer Kurbelbolzen
long crank bolt
0-12 V
# 57553 Gleichstrom DC
0-16 V
# 57353 Wechselstrom AC

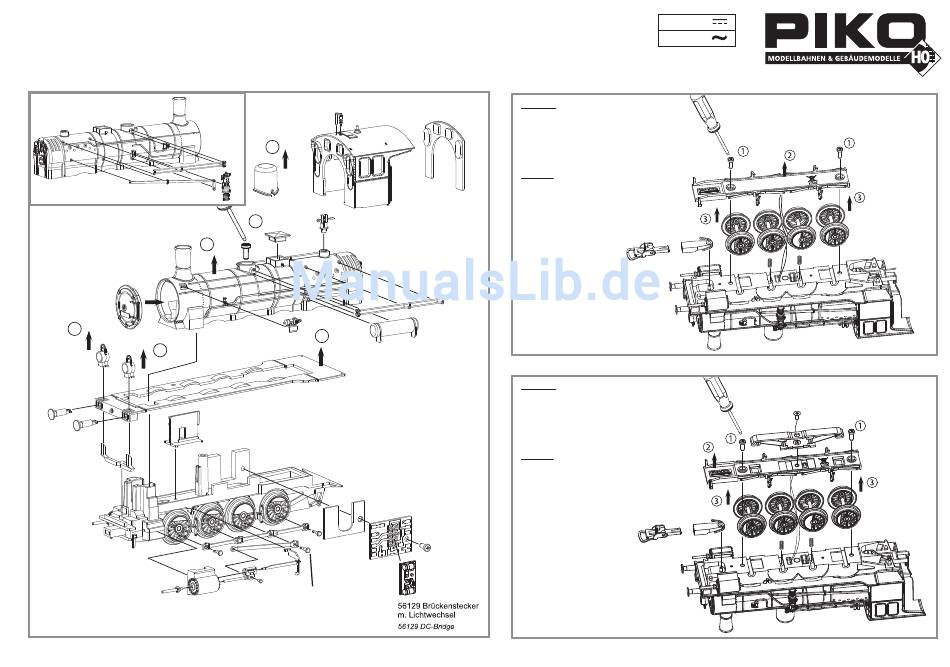

Achtung!
Bevor die Bodenplatte
entnommen werden kann,
müssen die Kabel von den
Radschleifern erst an der
Leiterplatte abgelötet werden.
Caution!
Before taking off the bottom plate,
the wires of wheel contact have
to be unsoldered first from PCB.
Achtung!
Bevor die Bodenplatte
entnommen werden kann,
müssen die Kabel von den
Radschleifern erst an der
Leiterplatte abgelötet werden.
Caution!
Before taking off the bottom plate,
the wires of wheel contact have
to be unsoldered first from PCB.
Hinweis
PIKO Decoder für Märklin Steuerung
PIKO Decoder melden sich (wie alle
anderen Decoder im Motorola-Format
übrigens auch) im Wechselstrombetrieb
mit dem neuen FMX-Format nicht automatisch
bei der Zentrale an.
Die Lok-Adresse (Voreinstellung 3) muss bei
Erstinbetriebnahme manuell eingegeben werden!
Notice
PIKO Decoder for Märklin control
PIKO Decoder dont't apply automatically (also like all other
decoders in Motorola-format) at the central in AC mode with
the new FMX-format.
The loco address (pre-adjustment 3) must be entered manual
at initial operation!
