Before installation

In no circumstances does installation require the scoreboard casing to be opened.
The electronic elements controlling the luminous display are mounted on extractable racks (R). In order to be able to carry out any
maintenance, a clear space of at least 30 cm is necessary for the extraction of the racks. Attention: installation must be performed by
qualified staff.
The mains cable can be taken out through the profile or at the back of the scoreboard (points K). In this last case, the mains cable must be
connected in the scoreboard before being fixed (see chapter "Electrical installation" – "Mains cable").

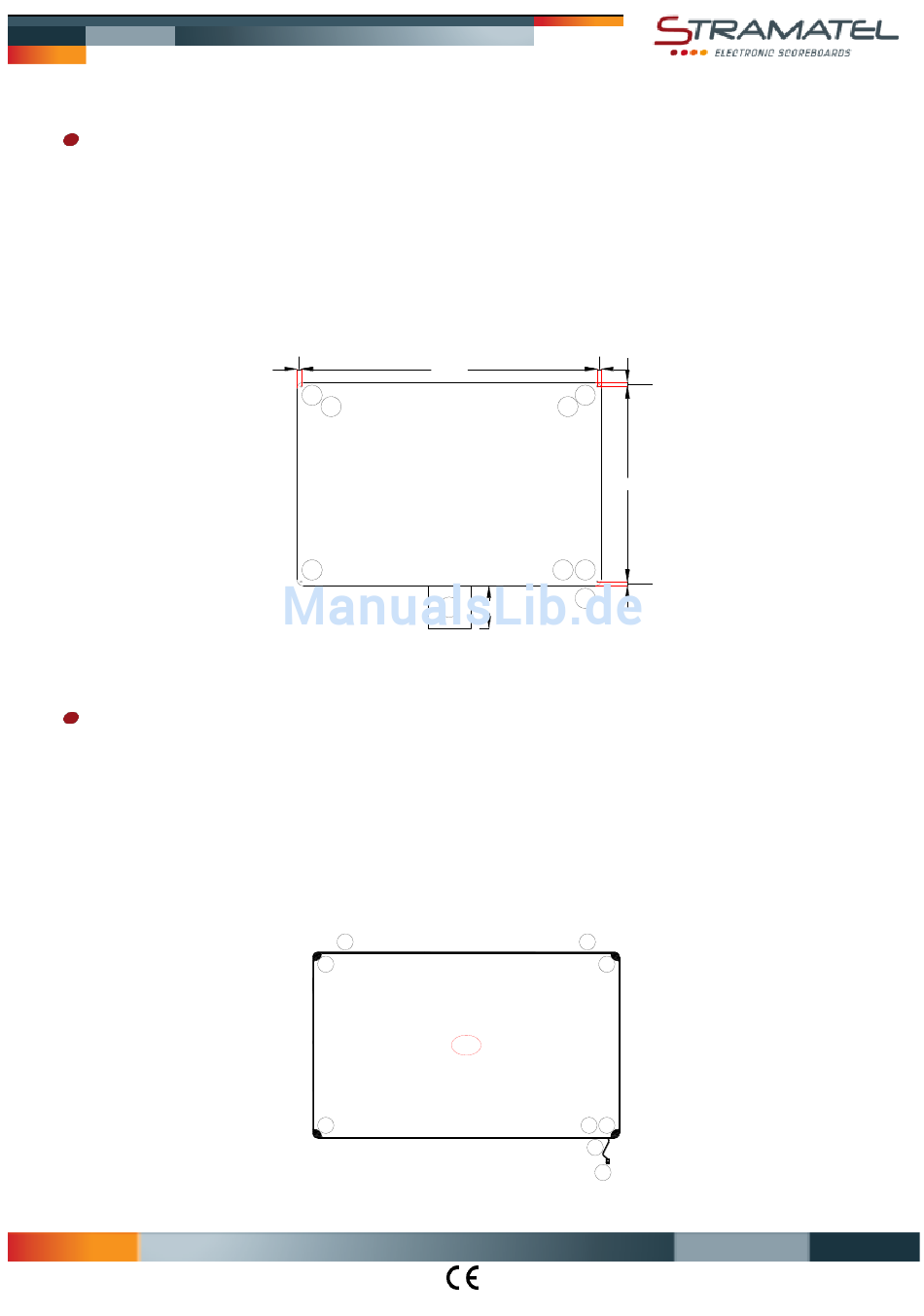

Draw the position of the mounting points (F) onto the wall or onto the support frame following the measures of the diagram.
Put plugs or inserts for Ø 8 mm screws.
(Z): Holes for mounting or disassembling the front face in some maintenance cases.
Scoreboard installation
In order to make installation easier, anchor points (I) are available on the top side of the scoreboard (insert holes in aluminium frame).
Screw-rings, type M6x40 (not supplied) can be screwed into place in each hole.
Please strictly follow the below instructions.
Unscrew and slide out the plastic corner shields (C) of the scoreboard.
Mains cable port: remove one of the grommets (K) of the module M1 and take the connector (S) out through the cable port.
If needed, connect the mains cable at the back of the module M1 (see chapter "Electrical installation" – "Mains cable").
Put the module M1 into place on the wall or on the support frame and screw in Ø 8 mm screws.
